XCell™ Half-Cell Corrosion Mapping

XCell™ Half-Cell Corrosion Mapping

Product Options

  Part Number & Name Price QTY
XCell™ Lite PackageHG-9048
XCell™ Lite Package
$1,490.00
XCell™ Essential PackageHG-9049
XCell™ Essential Package
$2,490.00
XCell™ Enhanced PackageHG-9050
XCell™ Enhanced Package
$4,950.00
XCell™ Comprehensive PackageHG-9051
XCell™ Comprehensive Package
$6,950.00
Add to Cart

XCell™ Half-Cell Corrosion Mapping

XCell™ is a smart tablet-based NDT probe for fast, accurate and efficient detection and on-site analysis of corrosion in reinforced concrete structures. It can be used for efficient and accurate corrosion mapping according to the ASTM C876, “Standard Test Method for Half-Cell Potentials of Uncoated Reinforcing Steel in Concrete”. The results are analyzed using the Android-based application onsite for the identification of locations with high probability of corrosion.

XCell™ benefits from an advanced Bluetooth-enabled, maintenance-free sensor that measures the corrosion potential and sends it wirelessly to a tablet for generating half-cell contour plots (i.e. corrosion maps) in real-time. The results can be shared easily with the engineering office. XCell™ significantly reduces the labor cost associated with the data collection and subsequent contour plot generation and reporting.

  • Single-person operation device
  • Maintenance-free electrode
  • Tablet/Smart-phone operation device
  • Upside down operation capability
  • Easy grid generation (on Tablet or Smartphone)
  • Fast data assignment to grid points
  • Real-time contour plotting
  • Automated temperature correction
  • Easy data sharing
  • Bluetooth V4.0 LE technology

Four models of the XCell™ are available. These include:

HG-9048 XCell™ Light Package: XCell™Probe, Data recording app. for Android Smartphone (Downloadable from Google Play), Alligator test clip, Test cable, Charging cable (Smartphone is not included)

HG-9049 XCell™ Essential Package: XCell™ Probe, Data recording app. for Android Smartphone, Alligator test clips, Test cable, Charging cable, 4 pieces of contact sponge, Electrode storage solution, User manual, USB charger, Carrying case (Smartphone is not included)

HG-9050 XCell™ Enhanced Package: XCell™ Probe, Tablet with hands-free carrying support, Data analysis App., Alligator test clips, Test cable, Charging cable, Tablet USB cable, USB charger, Extension arm, 4 pieces of contact sponge, Electrode storage solution, User manual, Carrying Case (Tablet is included)

HG-9051 XCell™ Comprehensive Package: XCell™ Probe, Tablet with hands-free carrying support, Data analysis App., Alligator test clip, Test cable, Charging cable, Tablet USB cable, USB charger, Extension arm, 4 pieces of contact sponge, Electrode storage solution, User manual, Carrying case, Verification probe, Extension reel, User manual, Carrying Case, External Battery Pack (Tablet is included)

The XCell™ Half-Cell Corrosion Mapping supports the following standards: ASTM C876

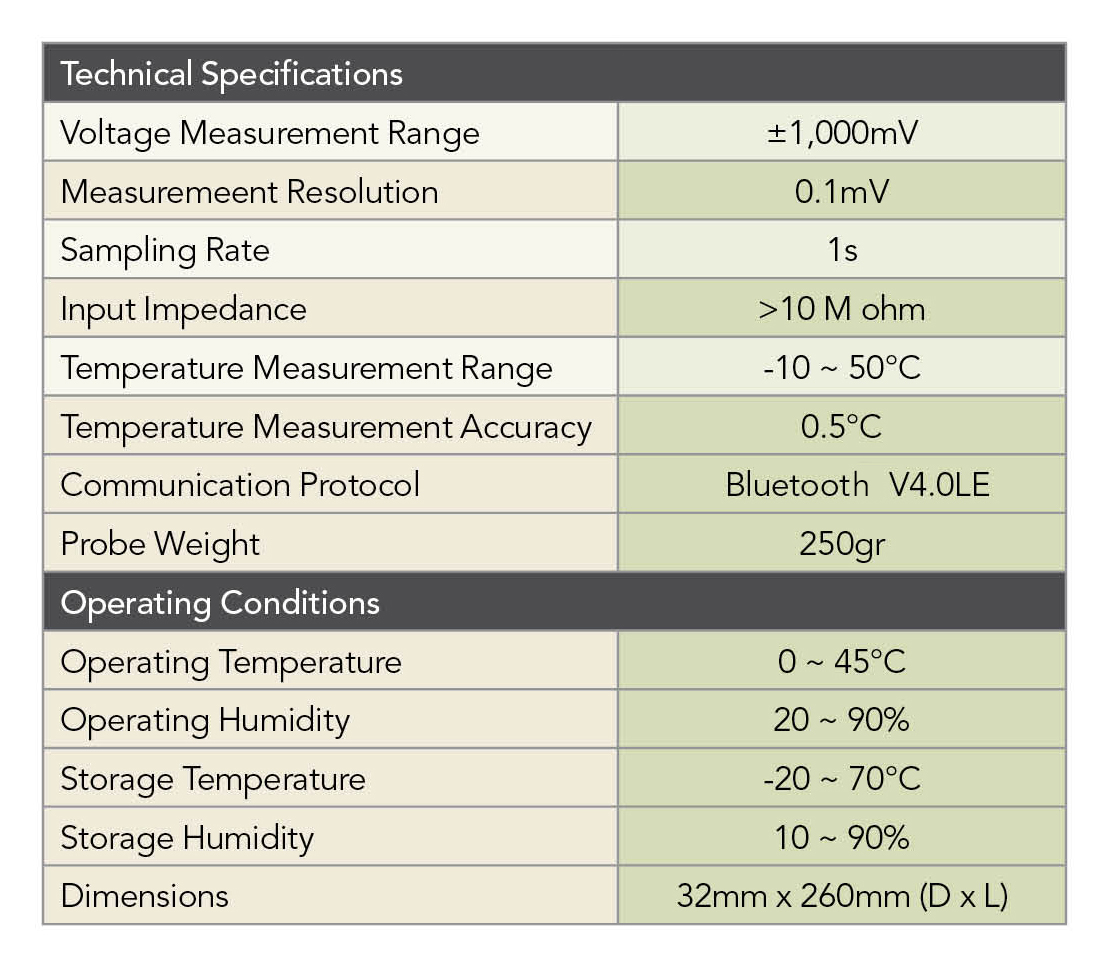

Specs Chart

Literature

Manuals, Data Sheets & Safety Data Sheets
Cell Giatec (Data Sheet PDF)

Standards

Standards
ASTM C876
Related Items
  • Profometer Corrosion

    HC-2873

    Profometer Corrosion

    New Half-Cell Corrosion meter can be upgraded to include Rebar location and Cover

  • CorMap Rebar Corrosion  Mapping System

    H-2872

    CorMap Rebar Corrosion
    Mapping System

    Simple and economical instrument for use in identifying areas of probable rebar corrosion

  • ASR Detect™

    H-2878

    ASR Detect™

    Provides a clear picture of the extent and depth of ASR deterioration

  • The Chlorimeter Chloride Test System

    H-2877

    The Chlorimeter Chloride Test System

    The Chlorimeter produces results on-site, within minutes that are accurate
