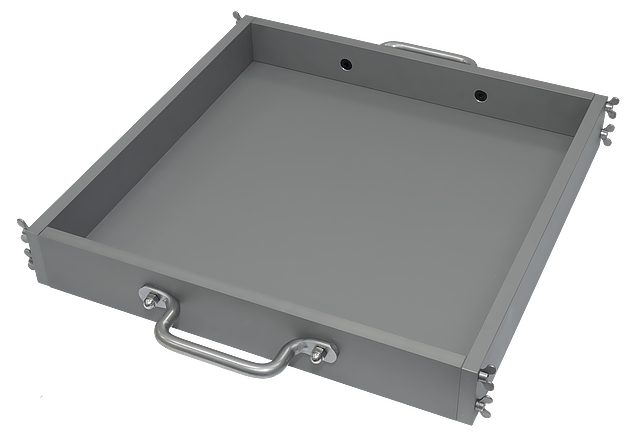

Asphalt 6" Puck Testing Mold for Three Wheel Polishing Device

The 508 mm x 508 mm x 65 mm aluminum Asphalt Puck Testing Mold is specifically engineered to produce a single, seven (7) compacted 150 mm asphalt specimen in a mold for pavement friction and polishing evaluations.

This unique configuration ensures the seven 150 mm compacted asphalt specimens are precisely positioned to match the 11.2" wheel path used by the Humboldt Dynamic Friction Tester (DFT), H-3213, and the Humboldt Three-Wheel Polishing Unit, H-3212, providing accurate, repeatable specimen preparation for pavement surface performance testing.

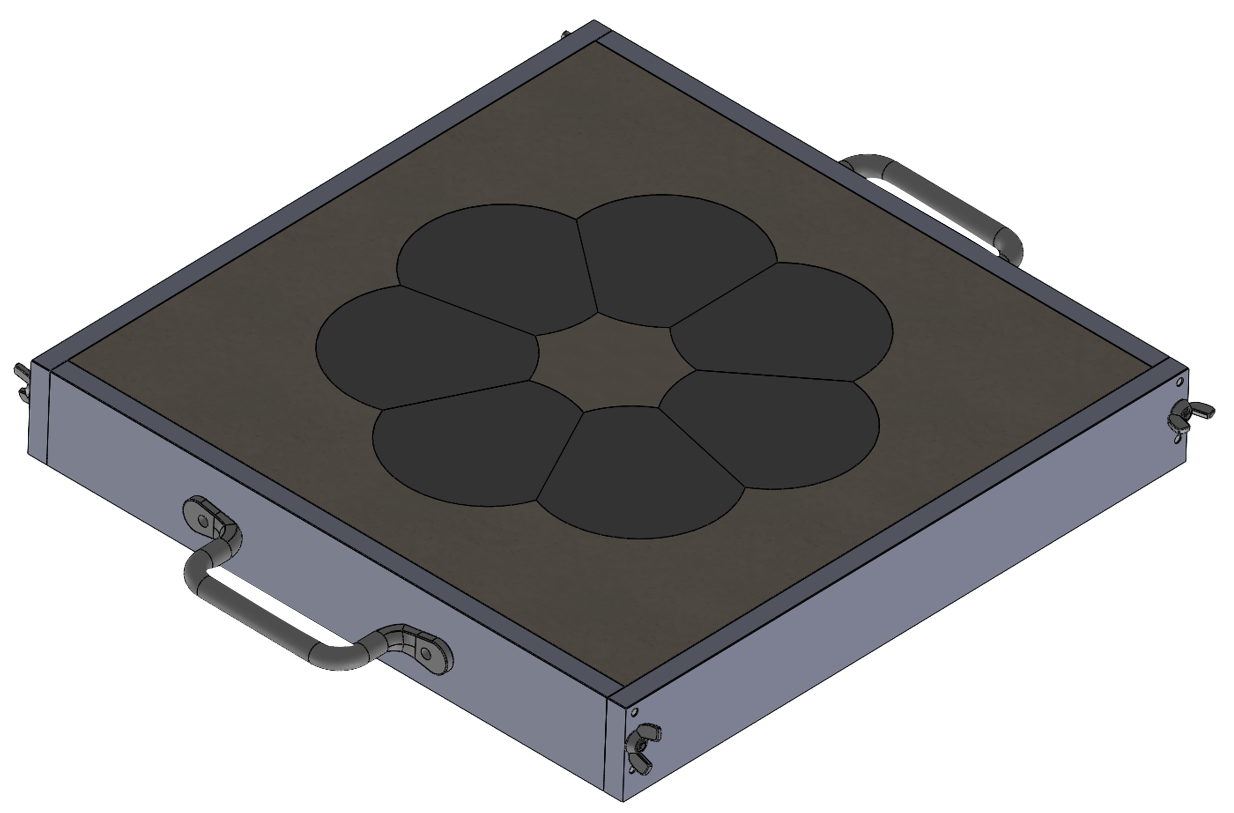

Note: Illustration is for reference use only. Specimen not included with purchase of H-3212.15.
