Asphalt Content/Binder Ignition Furnace

Asphalt Content/Binder Ignition Furnace

Product Options

  Part Number & Name Price QTY
Content/Binder Ignition Furnace w/ Accessory Package, 240V 50/60Hz, 20 ampF85930-33
Content/Binder Ignition Furnace w/ Accessory Package, 240V 50/60Hz, 20 amp
$11,400.00
Content/Binder Ignition Furnace w/ Accessory Package, 208V 60Hz, 23 ampF85938
Content/Binder Ignition Furnace w/ Accessory Package, 208V 60Hz, 23 amp
$11,143.00
Content/Binder Ignition Furnace (furnace only), 240V 50/60Hz, 20 ampF85930-33X
Content/Binder Ignition Furnace (furnace only), 240V 50/60Hz, 20 amp
$11,120.00
Content/Binder Ignition Furnace (furnace only), 208V 60Hz, 23 ampF85938X
Content/Binder Ignition Furnace (furnace only), 208V 60Hz, 23 amp
$11,143.00
Add to Cart

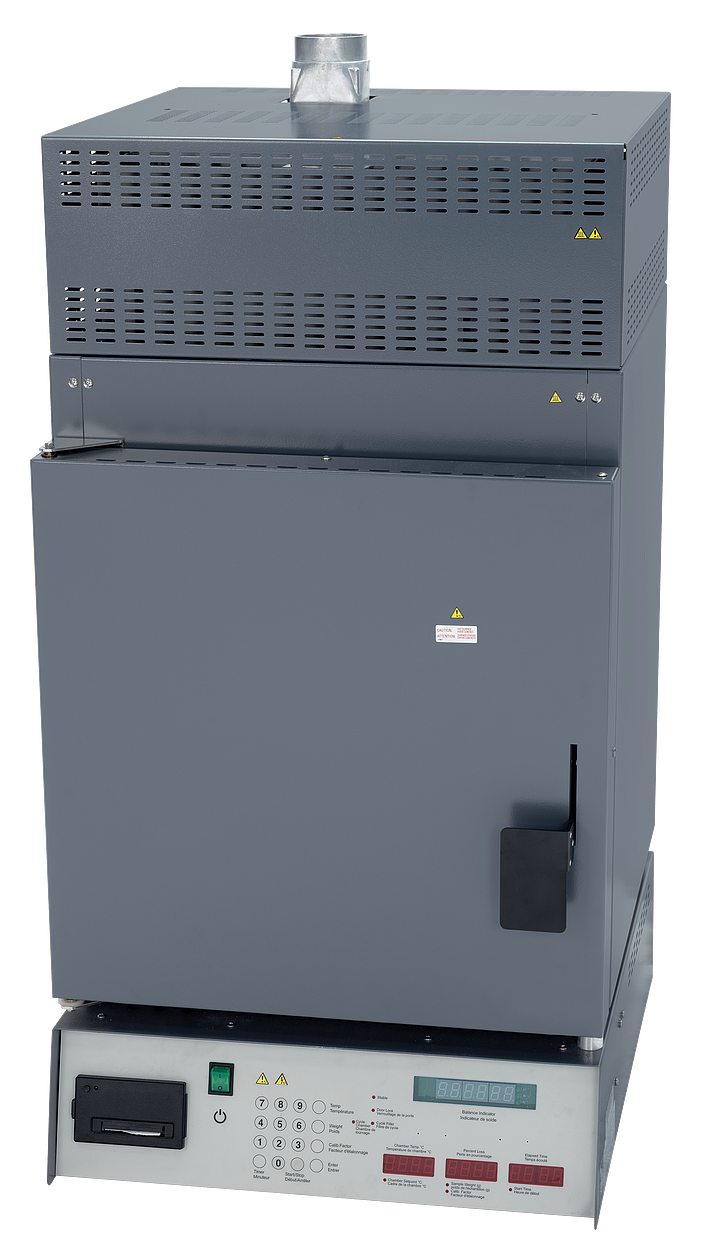

Asphalt Content/Binder Ignition Furnace

The asphalt content furnace (NCAT Oven) automatically determines the asphalt content of paving mixtures. Developed by NCAT, the National Center for Asphalt Technology, this furnace is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. It eliminates the cost and safety concerns of using solvent and solvent disposal plagued by other methods.

This ignition method reduces testing time compared to solvent testing methods and features an internal electronic balance automatically monitors sample weight throughout the ignition process and determines endpoint, saving valuable technician time and increasing productivity.

To operate, the furnace is pre-heated to the default setpoint temperature of 538°C (1,000°F) while a asphalt sample is weighed, divided into two screened baskets, and placed into the asphalt content furnace chamber. The sample weight is entered along with a mix design calibration factor, and the test is started with the push of a button. At completion, the system automatically ends the test and prints the results.

Once the test is initiated, the furnace door remains locked until test completion ensuring operator safety and test integrity during critical burn-off steps. During operations, volatiles are further oxidized in a high-temperature afterburner using a patented ceramic filter, which is heated to 650°C (1,202°F), reducing overall emissions by 95%. The NCAT Furnace can also be operated in manual mode. In this mode the furnace will beep when the endpoint is detected, however it will continue the test sequence until the operator presses "stop" to unlock the door and print the results.

The ignition furnace automatically compensates for weight change due to temperature changes and correction factors can be entered to accommodate unique mix characteristics. Endpoint detection of the test cycle can be user-programmed for a weight loss between 0.01% and 0.5% for three consecutive readings. Test results are computed as asphalt content per total weight of sample, or bitumen ratio per weight of dry aggregate to an accuracy of ±0.11%. A 24 hour/7 day timing function can be programmed to preheat the furnace at any time of day. The modular, refractory embedded heating elements have an extended service life and are easy to replace. An RS-232 port provides data interface with a personal computer for graphical data analysis.

Temperature range of the ignition furnace is: 392 to 1202°F (200 to 650°C) and provides 4,800 watt operation. An accurate internal balance monitors weights automatically throughout ignition to within ±0.1 gram. The ignition furnace comes complete with accessory package AY1087X1. This package includes: 4 baskets, 2 trays, 2 covers, handle, cooling cage, insulated plate, gloves, face shield, 4 rolls of printer tape, balance calibration plate and anderol oil. CE-approved. Chamber dimensions: 14"W x 10.5"H x 14"D (355 x 266 x 355mm). Shipping dimensions: 32"W x 32"D x 60"H (813 x 813 x 1524mm). NCAT Furnaces are not supplied with power cords and must be hard-wired directly to a suitable electrical supply or supplied with a cord and plug by the user.

The Asphalt Content/Binder Ignition Furnace supports the following standards: ASTM D6307

Accessories

  Part Number & Name Price QTY
Ignition Furnace Accessory Package AY1087X1
Ignition Furnace Accessory Package
$1,396.00
Ignition Furnace Baskets AY1087X6
Ignition Furnace Baskets
$525.00
Vent Hose, 3" ID (sold by the foot, please specify) H-1515
Vent Hose, 3" ID (sold by the foot, please specify)
$7.80
Exhaust Tubing, 3" ID, Stainless Steel (sold by the foot, specify) H-1515SS
Exhaust Tubing, 3" ID, Stainless Steel (sold by the foot, specify)
$20.00
Printer Paper PRX2
Printer Paper
$6.50
Rhoma-Sol™ Specialty Emulsifier H-1304
Rhoma-Sol™ Specialty Emulsifier
$24.40
Add to Cart

Standards

Standards
ASTM D6307
