Rolling Thin Film Oven

Rolling Thin Film Oven

Product Options

  Part Number & Name Price QTY
Rolling Thin Film Oven, Digital, 208-230V 60HzH-30069.2F
Rolling Thin Film Oven, Digital, 208-230V 60Hz
$9,804.00
Rolling Thin Film Oven, Digital, 208-230V 50HzH-30069.5F
Rolling Thin Film Oven, Digital, 208-230V 50Hz
$11,589.00
Rolling Thin Film Oven, 208-230V 60HzH-30068.2F
Rolling Thin Film Oven, 208-230V 60Hz
$8,140.00
Rolling Thin Film Oven, 208-230V 50HzH-30068.5F
Rolling Thin Film Oven, 208-230V 50Hz
$9,925.00
Add to Cart

Rolling Thin Film Oven

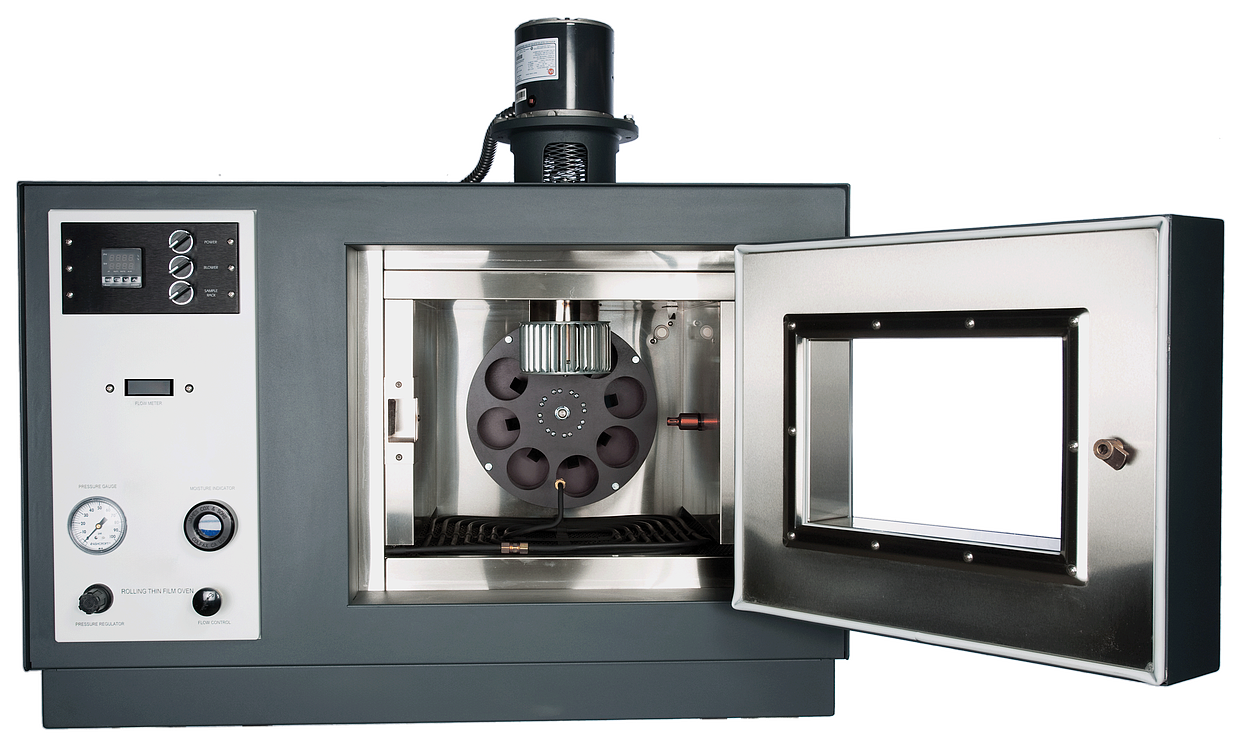

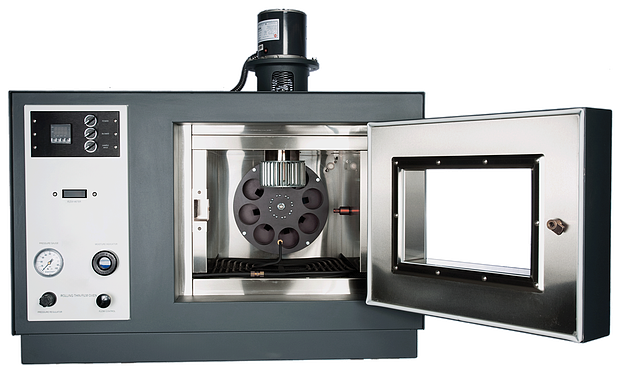

The Rolling Thin Film Oven (RFTO) is used to measure the effect of heat and air on a moving film of semi-solid asphaltic material and is an indicator of the approximate change in properties during conventional hot-mixing. The results of this treatment are determined from measurements of the asphalt properties before and after the test. Through the use of a programmable, temperature controller and a 4-digit, digital display system, along with a solid-state heater and 200-watt heating element, the oven accurately maintains the specified test temperature of ±1°F at 325°F (±0.5°C at163°C).

The oven also features: double-wall construction; door with double-pane viewing window; symmetrical top and bottom vents; air plenum, and squirrel-cage-type 1725 rpm fan.

The RFTO is available in a standard model with a glass flow meter or with a digital flow meter. Both models are identical other than the meter.

The oven includes a 200 to 14,000 ml/min flow meter, moisture meter, 0 to 100 psi air pressure gauge with regulator, rotating (15rpm) test rack and eight glass specimen jars. Overall dimensions 40"W x 36"H x 26"D (1016 x 3292 x 660mm). A clean, dry compressed air source is required for oven operation.

Additional Specifications
ConstructionDouble-walled, 16-gauge welded steel exterior 18-gauge corrosion-resistant, stainless steel interior
Insulation Insulation 3 5" (89mm) of high density fiberglass
ControllerProgrammable microprocessor, UL listed
Temperature DisplayMeasured Temperature: 4 digit red LEDs Temperature Set Point: 4 digit green LEDs
Thermal ProtectionPrevents overheating in the event of control failure
Temperature RangeAmbient to 200°C (390°F)
VentsDouble exhaust vents for dissipation of expended volatile from specimen
Air Flow AdjustmentNeedle valve (long taper)
Air Pressure GaugeRange 0 - 100 psi
Heat Exchanger5/16" dia copper tube
The Rolling Thin Film Oven supports the following standards: ASTM D2872, AASHTO T240, CAL #346, EN12591

Accessories

  Part Number & Name Price QTY
Lab stand with wheels H-30068.6
Lab stand with wheels
$595.00
Silica gel, 1.5 lb can H-30068.7
Silica gel, 1.5 lb can
$57.00
Dry air system H-30068.8
Dry air system
$1,942.00
Jar cooling rack H-30068.3
Jar cooling rack
$100.00
Bottle scraper H-30068.2
Bottle scraper
$63.00
Digital mass flowmeter H-30068.9
Digital mass flowmeter
$1,664.00
ASTM 13C thermometer H-2610.13C
ASTM 13C thermometer
$78.75
Additional specimen bottles H-30068.12
Additional specimen bottles
$39.50
Oven Tongs H-30068.1
Oven Tongs
$16.50
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-30069-Rolling-Thin-Film-Oven (Data Sheet PDF)

Standards

Standards
ASTM D2872
AASHTO T240
CAL #346
EN12591
