Automatic Cylinder End Grinder, 110V 60Hz

Supports the following standards: ASTM C39
Purchase Options

Part Number & Name
Price
QTY
H-2956A
Automatic Cylinder End Grinder, 110V 60Hz
$24,950.00
Add to Saved Cart

Specifications

Sample Size:6" x 12" ( 152 x 305mm), 4" x 8" ( 102 x 203mm) cylinders,
(3" x 6" ( 75 x 150mm) Requires H-2956.8 Attachment)
Cut Precision:Plane and Parallel to within 0.002" (.05 mm)
Cutting Feed:Manual—right hand operation
Cutting Head:Diamond wheel
Cutting Speed:60 to 120 seconds per end
Dimensions:53" x 33.5" x 24" (1350 x 850 x 600mm)

Accessories


Part Number & Name
Price
QTY
H-2956.7
2 X 4 Jig Attachment with Plastic Plate for H-2956A
$2,465.00
H-2956.8
3 X 6 Jig Attachment with Plastic Plate for H-2956A
$2,465.00
Add to Saved Cart

Replacement Parts


Part Number & Name
Price
QTY
H-2956.6

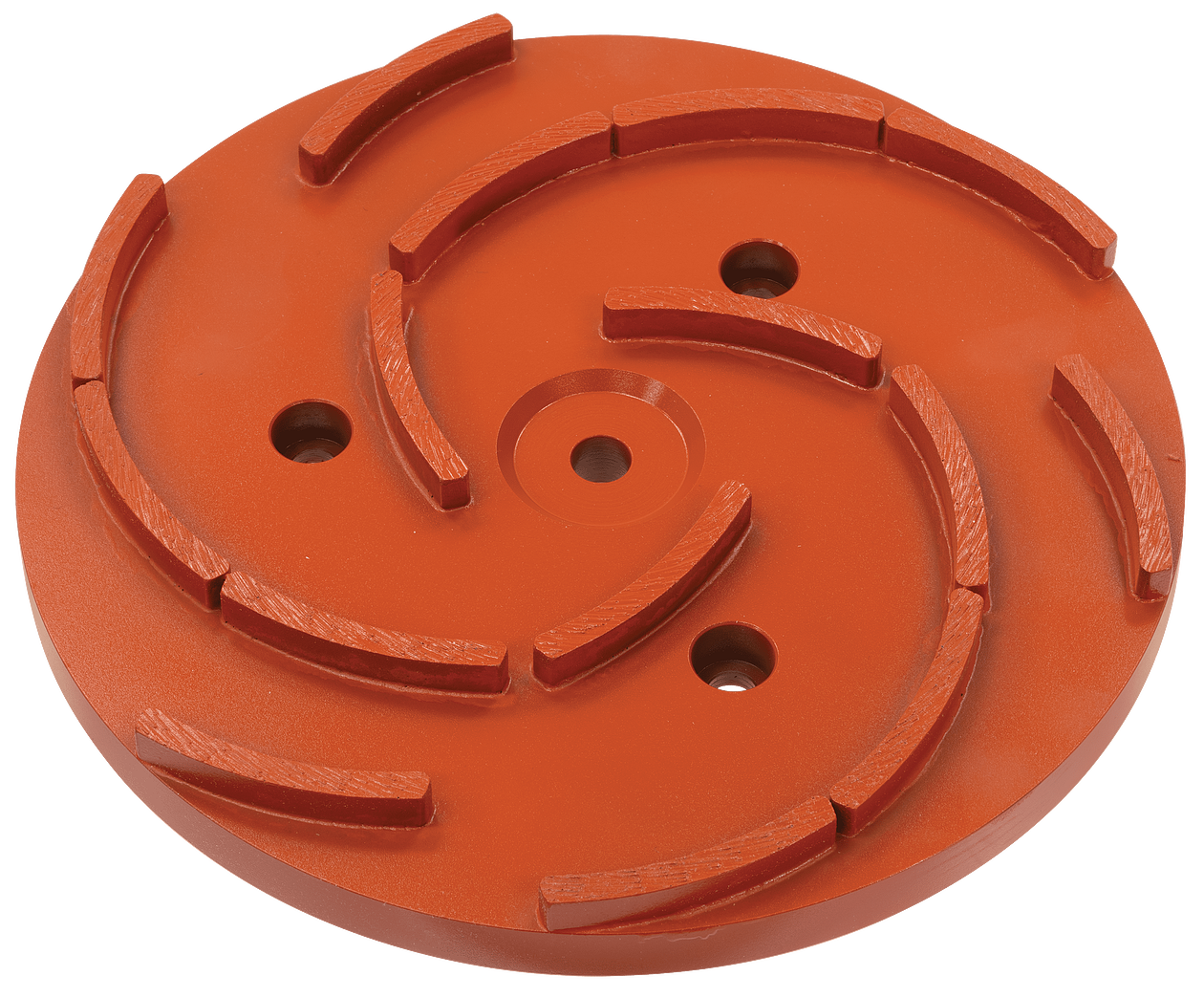

Grinding Wheel Replacement for H-2956 Cylinder Grinder
$1,250.00
Add to Saved Cart

Literature

Manuals, Data Sheets & Safety Data Sheets

H-2956A-EndGrinder (Data Sheet PDF)

H-2956A-Manual-1123 (Product Manual PDF)

Standards

Standards

ASTM C39
