Basic Swell/Expansion Consolidometer

Basic Swell/Expansion Consolidometer

Product Options

  Part Number & Name Price QTY
Basic Swell/Expansion Consolidometer Consolidometer, Basic Swell and Expansion, 2.440"HM-1972-1D
Basic Swell/Expansion Consolidometer Consolidometer, Basic Swell and Expansion, 2.440"
$460.00
Basic Swell/Expansion Consolidometer Consolidometer, Basic Swell and Expansion, 2.500"HM-1972-1E
Basic Swell/Expansion Consolidometer Consolidometer, Basic Swell and Expansion, 2.500"
$521.00
Add to Cart

Basic Swell/Expansion Consolidometer

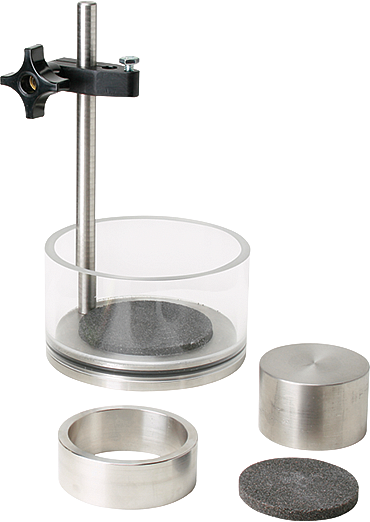

A self-contained consolidometer used to conduct swell expansion tests on soil specimens. Set includes: stainless steel base/acrylic ring device with adjustable, dial indicator standard and bracket, a compaction specimen ring, top and bottom porous stones and a 60 psf stainless steel loading weight. Consolidometer can also be used with cutting ring, listed below, instead of supplied compaction ring for use in acquiring samples from undisturbed Shelby tube samples. A dial indicator is necessary for this test. Alternative loading weights are also available, please enquire.

Components for HM-1972-1D

Cutting Ring, SS HM-1220.24.8
Compaction Ring, SS HM-1972-3D
Loading Weight, 60 PSF (SS) HM-1972-6D
Top Porous Stone HM-4184.240
Base Porous Stone,
3.31" dia. x 0.25" thick
HM-4184.331

Replacement Parts

  Part Number & Name Price QTY
Cutter Ring (All) for Consolidation Cells Cutter Ring (All) for Consolidation CellsClick for Options
HM-1972-3D
Compaction Ring for Consolidometer, 2.440"
$57.00
HM-1972-6D
Loading Weight for Consolidometer, 2.440"
$54.00
Consolidation Cells, Upper Stones Consolidation Cells, Upper StonesClick for Options
Lower Stone (Fixed & Permeability) Lower Stone (Fixed & Permeability)Click for Options
HM-1972-3E
Compaction Ring for Consolidometer, 2.500"
$57.00
HM-1972-6E
Loading Weight for Consolidometer, 2.500"
$54.00
Add to Cart
Related Items
  • Expansion Index Consolidometer

    HM-5405

    Expansion Index Consolidometer

    Self-contained unit for conducting expansion tests on cured soil specimens.

  • Cutter Ring (All) for Consolidation Cells

    HM-1972-1D.XX

    Cutter Ring (All) for Consolidation Cells

    Cutter Rings (all) for consolidation cells are available in sizes from 2.0" to 100mm.

  • Compaction Ring for Consolidometer, 2.440"

    HM-1972-3D

    Compaction Ring for Consolidometer, 2.440"

  • Lower Stone (Fixed & Permeability)

    HM-1972-1D.XX

    Lower Stone (Fixed & Permeability)

    Lower stones (Fixed & Permeability) are available in sizes from 2.0" to 100mm.
