Rheometer - Bending Beam
Product Options
Rheometer - Bending Beam
Supports the following standards: ASTM D6648, AASHTO T313-02

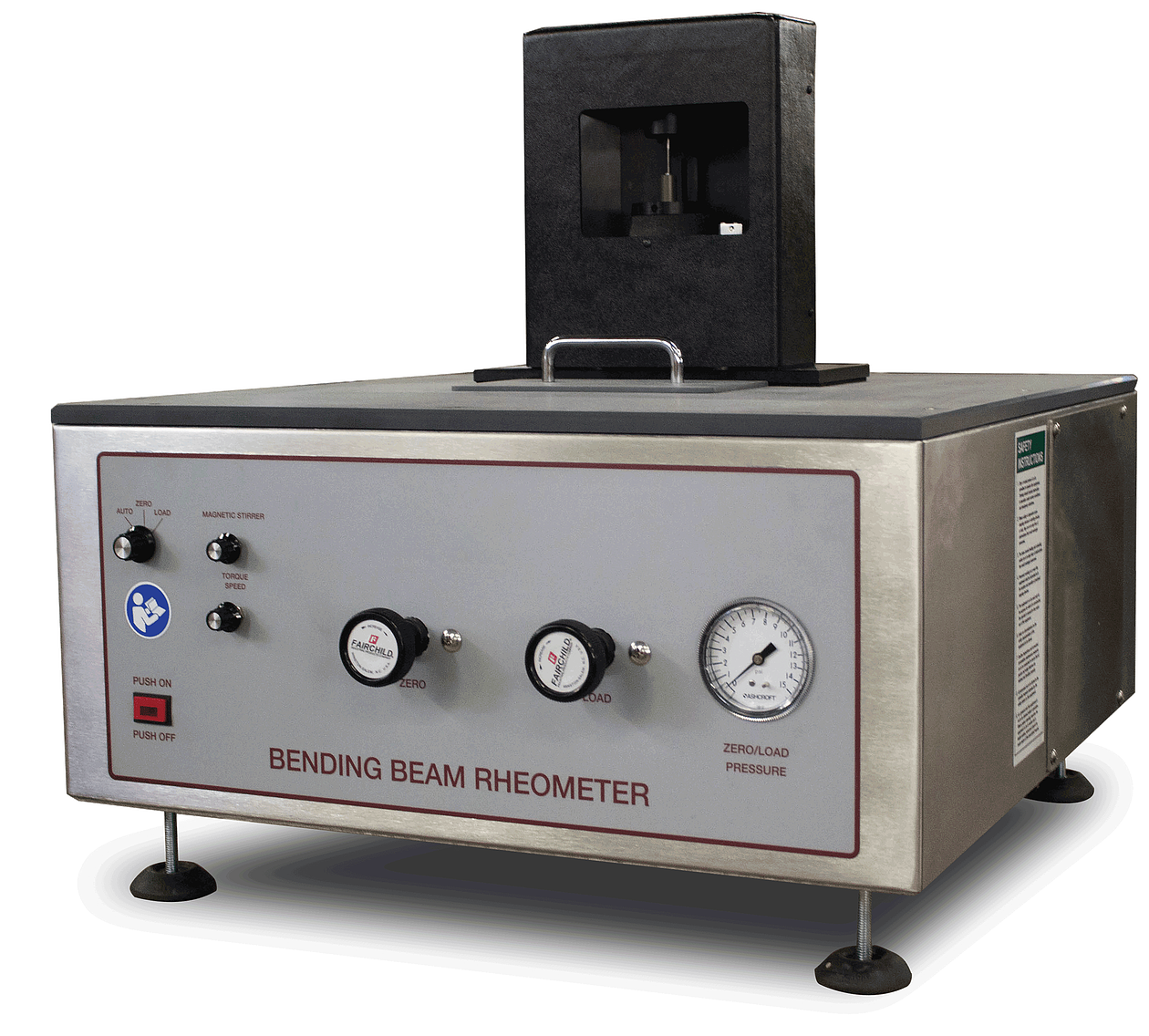

The bending beam rheometer (BBR) performs flexural tests on asphalt binder and similar specimens per tests, initially developed by the Strategic Highway Research Program (SHRP), which consist of a constant force being applied to a specimen in a chilled fluid bath in order to derive specific rates of deformation at various temperatures. The complete BBR system consists of a fluid bath base unit, a three-point bend test apparatus, which is easily removed from the base unit for specimen loading and unloading, an external cooling unit with temperature controller and a calibration hardware kit with carrying case. The unit features an integral, stainless steel load frame and in-line, blunt-point loading shaft. The large, easy-to-read digital display shows load, displacement, and bath temperature for ease of setup and operation. Real-time displacement, loading, and temperature graphs are displayed during the test cycle and can be re-plotted and re-scaled as needed for easy viewing.
The BBR uses a linear, variable-displacement transducer (LVDT) with a range of 6.35mm and accuracy to ±2mm measures deflection. The temperature-compensating 500g load cell with mechanical overload protection ensures accurate load results. Safe, rapid cooling of the ethylene glycol mixture test fluid to -40° to 25°C is provided by a mechanical refrigeration system. Process temperature is controlled and monitored by two, independent, platinum RTD temperature transducers maintaining temperature stability.
The BBR comes with a pre-loaded software package, which allows for device configuration, daily verifications, test setup, test initiation, and reporting. It also includes five aluminum specimen molds with mylar strips, a Calibration Kit with required weights, and confidence beam. Calibrated test weights and a certified LVDT (NIST-traceable). The easy-to-use software allows daily verification and periodic calibration of load cell, LVDT, and RTD transducers
Dimensions: 49" x 49" x 41" (1,245 x 1,245 x 1,040mm). An adequate compressed air source must be supplied by user.
Specifications
| Power Requirements: | 115V 60Hz or 230V, 1ph, 50/60 Hz |
|---|---|
| TTemperature Range: | -40 to 25°C |
| Operating Temperature: | Ambient to -40°C |
| Test Load: | Variable test range from 0-200g standard within +/- .5g |
| Test Cycle Times: | Cycle times for pre-load, recovery, and test load are completely operator adjustable. |
| Load Cell: | 500g (temperature compensated) |
| LVDT Displacement Transducer: | 0.25 in. (6.35 mm.) calibrated range to provide 2um resolution throughout testing and verification range |
| Coolant Capacity: | 2 gallons (7.57 liters) |
| Recommended Cooling Bath Fluid: | Non-flammable ethylene glycol mixture |
| Temperature Measurement: | Platinum RTD |
| Compressed Air Requirements: | 50 psi (0.34 MPa) clean, dry air supply required |
| Weight: | Approximately 270 lbs. |
| Dimensions: | 24.125" W x 24.125" D x 23.25" H (w/ load frame) |
Accessories
Literature
Manuals, Data Sheets & Safety Data Sheets
Bending Beam Rheometer (Data Sheet PDF)
Standards
Standards
ASTM D6648
AASHTO T313-02
