Consolidation Cell Part, Lifting Knobs (All)
Product Options
Consolidation Cell Part, Lifting Knobs (All)

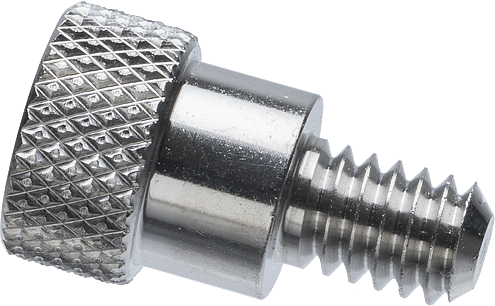

Lifting knobs carry the same part number for all sizes from 2.0" through 100mm.
Consolidation Cell Components
| 2.0" | 2.42" | 2.5" | 3.0" | 4.0" | 50mm | 70mm | 75mm | 100mm | |
|---|---|---|---|---|---|---|---|---|---|
| Load pad | HM-1220.20.10 | HM-1220.24.10 | HM-1220.25.10 | HM-1220.30.10 | HM-1220.40.10 | HM-1220.50.10 | HM-1220.70.10 | HM-1220.75.10 | HM-1220.100.10 |
| Upper stone | HM-4184.1985 | HM-4184.240 | HM-1220.25.11* HM-4184.2485 |
HM-4184.2985 | HM-4184.3985 | HM-4184.1955 | HM-4184.274 | HM-4184.2940 | HM-4184.3925 |
| Lower stone (floating) | HM-4184.1985 | HM-4184.240 | HM-4184.2485 | HM-4184.2985 | HM-4184.3985 | HM-4184.1955 | HM-4184.274 | HM-4184.2940 | HM-4184.3925 |
| Lower stone (fixed & permability) |
HM-4184.331 | HM-4184.331 | HM-4184.331 | HM-4184.331 | HM-4184.4375T | HM-4184.331 | HM-4184.331 | HM-4184.331 | HM-4184.4375T |
| Acrylic cylinder (fixed) | HM-1220.25.2 | HM-1220.25.2 | HM-1220.25.2 | HM-1220.25.2 | HM-1220.40.2 | HM-1220.25.2 | HM-1220.25.2 | HM-1220.25.2 | HM-1220.40.2 |
| Acrylic cylinder (floating) | HM-1210.25.2 | HM-1210.25.2 | HM-1210.25.2 | HM-1210.25.2 | HM-1210.40.2 | HM-1210.25.2 | HM-1210.25.2 | HM-1210.25.2 | HM-1210.40.2 |
| Centering ring (floating) | HM-1210.20.12 | HM-1210.24.12 | HM-1210.25.12 | HM-1210.30.12 | HM-1210.40.12 | HM-1210.50.12 | HM-1210.70.12 | HM-1210.75.12 | HM-1210.100.12 |
| Clamping ring (permability) | HM-1230.20.9 | HM-1230.24.9 | HM-1230.25.9 | HM-1230.30.9 | HM-1230.40.9 | HM-1230.50.9 | HM-1230.70.9 | HM-1230.75.9 | HM-1230.100.9 |
| Clamping ring (fixed) | HM-1220.20.9 | HM-1220.24.9 | HM-1220.25.9 | HM-1220.30.9 | HM-1220.40.9 | HM-1220.50.9 | HM-1220.70.9 | HM-1220.75.9 | HM-1220.100.9 |
| Base (floating & permability) | HM-1230.25.1 | HM-1230.25.1 | HM-1230.25.1 | HM-1230.25.1 | HM-1230.40.1 | HM-1230.25.1 | HM-1230.25.1 | HM-1230.25.1 | HM-1230.40.1 |
| Base (fixed) | HM-1220.25.1 | HM-1220.25.1 | HM-1220.25.1 | HM-1220.25.1 | HM-1220.40.1 | HM-1220.25.1 | HM-1220.25.1 | HM-1220.25.1 | HM-1220.40.1 |
| Cutter ring (all) | HM-1220.20.8 | HM-1220.24.8 | HM-1220.25.8 | HM-1220.30.8 | HM-1220.40.8 | HM-1220.50.8 | HM-1220.70.8 | HM-1220.75.8 | HM-1220.100.8 |
| Lower o-ring (floating & permability) |
HM-003053 | HM-003053 | HM-003053 | HM-003053 | HM-003056 | HM-003053 | HM-003053 | HM-003053 | HM-003056 |
| Lower o-ring (fixed) | HM-003052 | HM-003052 | HM-003052 | HM-003052 | HM-003024 | HM-003052 | HM-003052 | HM-003052 | HM-003024 |
| Upper o-ring (permability) | HM-003057 | HM-003058 | HM-003054 | HM-003059 | HM-003060 | HM-003057 | HM-003061 | HM-003062 | HM-003063 |
| Post (all) | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 | HM-1220.25.3 |
| Locking nut (all) | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 | HM-1220.25.5 |
| Lifiting knob (all) | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 | HM-1220.25.6 |
| Port connection upper (permability) |
HM-003027 | HM-003027 | HM-003027 | HM-003027 | HM-003027 | HM-003027 | HM-003027 | HM-003027 | HM-003027 |
| Port connection lower (permability) |
HM-003055 | HM-003055 | HM-003055 | HM-003055 | HM-003055 | HM-003055 | HM-003055 | HM-003055 | HM-003055 |
| Filter paper | HM-4189.20 | HM-4189.25 | HM-4189.25 | HM-4189.30 | HM-4189.40 | HM-4189.20 | HM-4189.28 | HM-4189.30 | HM-4189.40 |
| Calibration disk (used for consolidation or round shear box.) |
HM-1220.20.4 | HM-1220.24.4 | HM-1220.25.4 | HM-1220.30.4 | HM-1220.40.4 | HM-1220.50.4 | HM-1220.70.4 | HM-1220.75.4 | HM-1220.100.4 |
Related Items
-
HM-1210.XX.XX
Centering Ring (Floating) for Consolidation Cells
Centering Rings (Floating) for consolidation cells are available in sizes from 2.0" to 100mm.
-
HM-1230.XX.XX
Clamping Ring (Permeability) for Consolidation Cells
Clamping Rings (Permeability) for consolidation cells are available in sizes from 2.0" to 100mm.
-
HM-1220.XX.XX
Cutter Ring (All) for Consolidation Cells
Cutter Rings (all) for consolidation cells are available in sizes from 2.0" to 100mm.
-
HM-1220.25.3
Consolidation Cell Part, Post for all Cells
Posts (all) for consoldation cells are available in sizes from 2.0" to 100mm.
