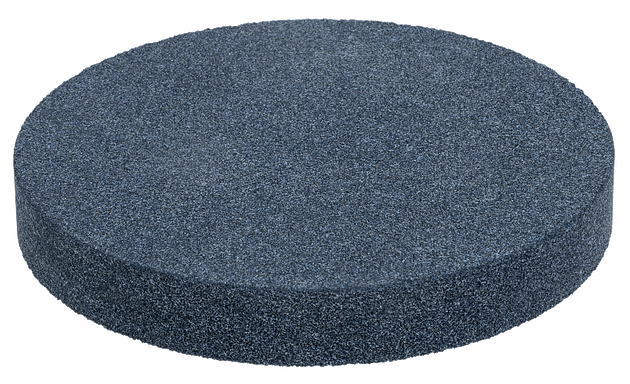

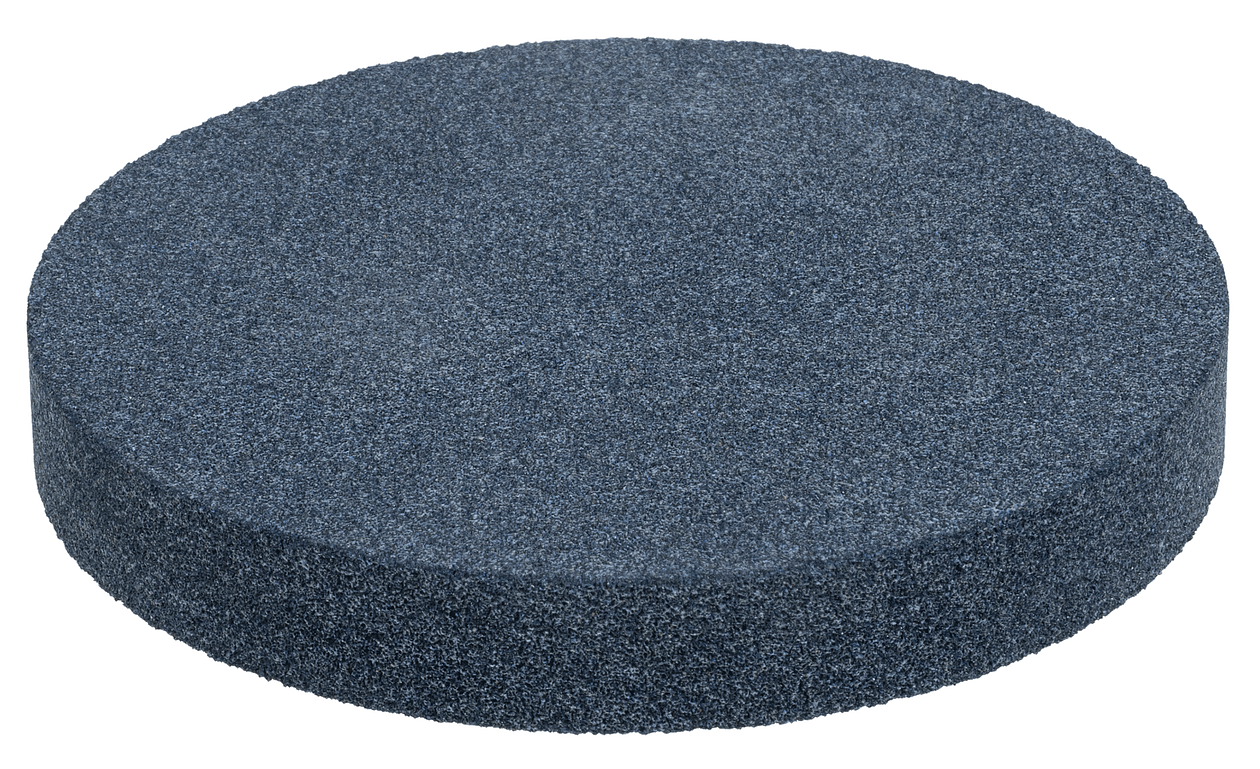

Consolidation Cells, Lower Stones (Floating)

Consolidation Cells, Lower Stones (Floating)

Product Options

  Part Number & Name Price QTY
Porous Stone, 2.0", Upper and Lower FloatingHM-4184.1985
Porous Stone, 2.0", Upper and Lower Floating
$15.00
Porous Stone, 2.42", Upper and Lower FloatingHM-4184.240
Porous Stone, 2.42", Upper and Lower Floating
$17.60
Porous Stone, 2.5", Upper and Lower FloatingHM-4184.2485
Porous Stone, 2.5", Upper and Lower Floating
$14.70
Porous Stone, 4.0", Upper and Lower FloatingHM-4184.3985
Porous Stone, 4.0", Upper and Lower Floating
$18.00
Porous Stone, 50mm, Upper and Lower FloatingHM-4184.1955
Porous Stone, 50mm, Upper and Lower Floating
$15.00
Porous Stone, 70mm, Lower and UpperHM-4184.274
Porous Stone, 70mm, Lower and Upper
$21.00
Porous Stone, 75mm, Lower and UpperHM-4184.2940
Porous Stone, 75mm, Lower and Upper
$19.60
Porous Stone, 100mm, Upper and Lower FloatingHM-4184.3925
Porous Stone, 100mm, Upper and Lower Floating
$17.00
Add to Cart

Consolidation Cells, Lower Stones (Floating)

Lower Stones for Consolidation Cells.

Consolidation Cell Components

  2.0" 2.42" 2.5" 3.0" 4.0" 50mm 70mm 75mm 100mm
Load pad HM-1220.20.10 HM-1220.24.10 HM-1220.25.10 HM-1220.30.10 HM-1220.40.10 HM-1220.50.10 HM-1220.70.10 HM-1220.75.10 HM-1220.100.10
Upper stone HM-4184.1985 HM-4184.240 HM-1220.25.11*
HM-4184.2485
HM-4184.2985 HM-4184.3985 HM-4184.1955 HM-4184.274 HM-4184.2940 HM-4184.3925
Lower stone (floating) HM-4184.1985 HM-4184.240 HM-4184.2485 HM-4184.2985 HM-4184.3985 HM-4184.1955 HM-4184.274 HM-4184.2940 HM-4184.3925
Lower stone
(fixed & permability)
HM-4184.331 HM-4184.331 HM-4184.331 HM-4184.331 HM-4184.4375T HM-4184.331 HM-4184.331 HM-4184.331 HM-4184.4375T
Acrylic cylinder (fixed) HM-1220.25.2 HM-1220.25.2 HM-1220.25.2 HM-1220.25.2 HM-1220.40.2 HM-1220.25.2 HM-1220.25.2 HM-1220.25.2 HM-1220.40.2
Acrylic cylinder (floating) HM-1210.25.2 HM-1210.25.2 HM-1210.25.2 HM-1210.25.2 HM-1210.40.2 HM-1210.25.2 HM-1210.25.2 HM-1210.25.2 HM-1210.40.2
Centering ring (floating) HM-1210.20.12 HM-1210.24.12 HM-1210.25.12 HM-1210.30.12 HM-1210.40.12 HM-1210.50.12 HM-1210.70.12 HM-1210.75.12 HM-1210.100.12
Clamping ring (permability) HM-1230.20.9 HM-1230.24.9 HM-1230.25.9 HM-1230.30.9 HM-1230.40.9 HM-1230.50.9 HM-1230.70.9 HM-1230.75.9 HM-1230.100.9
Clamping ring (fixed) HM-1220.20.9 HM-1220.24.9 HM-1220.25.9 HM-1220.30.9 HM-1220.40.9 HM-1220.50.9 HM-1220.70.9 HM-1220.75.9 HM-1220.100.9
Base (floating & permability) HM-1230.25.1 HM-1230.25.1 HM-1230.25.1 HM-1230.25.1 HM-1230.40.1 HM-1230.25.1 HM-1230.25.1 HM-1230.25.1 HM-1230.40.1
Base (fixed) HM-1220.25.1 HM-1220.25.1 HM-1220.25.1 HM-1220.25.1 HM-1220.40.1 HM-1220.25.1 HM-1220.25.1 HM-1220.25.1 HM-1220.40.1
Cutter ring (all) HM-1220.20.8 HM-1220.24.8 HM-1220.25.8 HM-1220.30.8 HM-1220.40.8 HM-1220.50.8 HM-1220.70.8 HM-1220.75.8 HM-1220.100.8
Lower o-ring
(floating & permability)
HM-003053 HM-003053 HM-003053 HM-003053 HM-003056 HM-003053 HM-003053 HM-003053 HM-003056
Lower o-ring (fixed) HM-003052 HM-003052 HM-003052 HM-003052 HM-003024 HM-003052 HM-003052 HM-003052 HM-003024
Upper o-ring (permability) HM-003057 HM-003058 HM-003054 HM-003059 HM-003060 HM-003057 HM-003061 HM-003062 HM-003063
Post (all) HM-1220.25.3 HM-1220.25.3 HM-1220.25.3 HM-1220.25.3 HM-1220.25.3 HM-1220.25.3 HM-1220.25.3 HM-1220.25.3 HM-1220.25.3
Locking nut (all) HM-1220.25.5 HM-1220.25.5 HM-1220.25.5 HM-1220.25.5 HM-1220.25.5 HM-1220.25.5 HM-1220.25.5 HM-1220.25.5 HM-1220.25.5
Lifiting knob (all) HM-1220.25.6 HM-1220.25.6 HM-1220.25.6 HM-1220.25.6 HM-1220.25.6 HM-1220.25.6 HM-1220.25.6 HM-1220.25.6 HM-1220.25.6
Port connection
upper (permability)
HM-003027 HM-003027 HM-003027 HM-003027 HM-003027 HM-003027 HM-003027 HM-003027 HM-003027
Port connection
lower (permability)
HM-003055 HM-003055 HM-003055 HM-003055 HM-003055 HM-003055 HM-003055 HM-003055 HM-003055
Filter paper HM-4189.20 HM-4189.25 HM-4189.25 HM-4189.30 HM-4189.40 HM-4189.20 HM-4189.28 HM-4189.30 HM-4189.40
Calibration disk
(used for consolidation or round shear box.)
HM-1220.20.4 HM-1220.24.4 HM-1220.25.4 HM-1220.30.4 HM-1220.40.4 HM-1220.50.4 HM-1220.70.4 HM-1220.75.4 HM-1220.100.4
