Cylinder Mold Vibrating Table Apparatus

Cylinder Mold Vibrating Table Apparatus

Product Options

  Part Number & Name Price QTY
Cylinder Mold, Vibrating Table Apparatus, 120V 60HzH-3649
Cylinder Mold, Vibrating Table Apparatus, 120V 60Hz
$4,208.00
Cylinder Mold, Vibrating Table Apparatus, 220V 60HH-3649.2F
Cylinder Mold, Vibrating Table Apparatus, 220V 60H
$4,280.00
Cylinder Mold, Vibrating Table Apparatus, 220V 50HzH-3649.5F
Cylinder Mold, Vibrating Table Apparatus, 220V 50Hz
$4,280.00
Add to Cart

Cylinder Mold Vibrating Table Apparatus

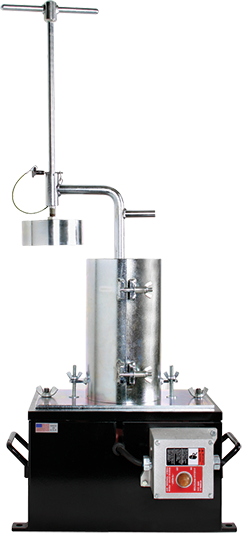

Used for making roller-compacted concrete in cylinder molds using a vibrating table. This practice is used when the standard procedures of rodding and internal vibration are not practicable. The unit is comprised of a vibrating table, which can be bolted to a floor or substantial base slab. A swing arm with guide sleeve for the 20 lb (9kg) surcharge weight is attached to the base, which allows the weight to swing out of the way when filling the mold, but allows easy application of the weight to the top of the specimen in the mold prior to vibration. The test mold is a 6" x 12" mold conforming to ASTM C470 and is locked into place on the base of the unit.

Accessories

  Part Number & Name Price QTY
Concrete Mold Assembly for Vibrating Table Apparatus H-2950.RCA
Concrete Mold Assembly for Vibrating Table Apparatus
$407.40
Add to Cart
Related Items
  • Consistency Vibrating Table Test

    H-3649.XX

    Consistency Vibrating Table Test

    Determines the consistency of Roller-Compacted concrete mixtures, ASTM C1170

  • Ball Penetration Apparatus (Kelly Ball)

    H-3649.XX

    Ball Penetration Apparatus (Kelly Ball)

    A test for the consistency of concrete using the penetration of a half sphere.

  • Carrier for Ball Penetration Apparatus

    H-3656

    Carrier for Ball Penetration Apparatus

    Heavy-duty, cast-aluminum design with quick release latches.

  • Ball Drop Apparatus (Kelly Ball)

    H-3655.D6024

    Ball Drop Apparatus (Kelly Ball)

    Used to test the suitability of load applications on controlled low-strength material
