FlexPanels – 2-Cell Control Panel

Supports the following standards: ASTM D5084, BS 1377 Part 6 1990

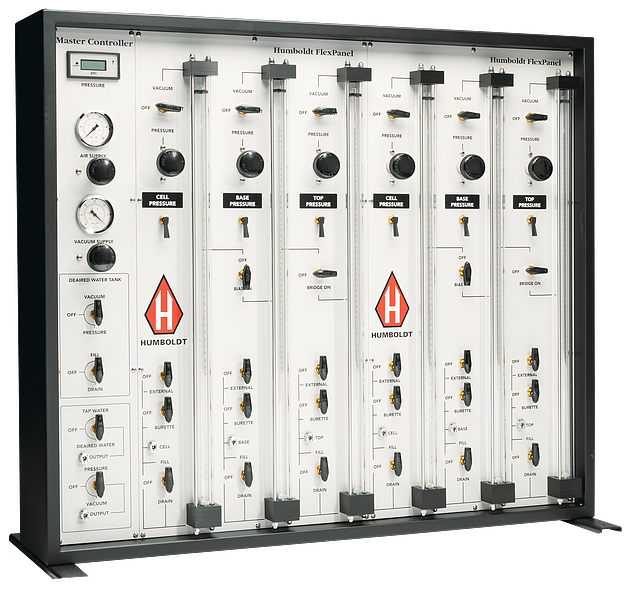

The HM-4160 2-cell, 6-burette control panel provides pressure controls and readouts for permeability and triaxial applications. It can control all the functions of two cells, however with the addition of Auxillary Panels it can control the operations of up to five (5) cells.

Controls include: a digital, readout pressure meter, a pressure supply gauge, a master pressure regulator, a vacuum supply gauge, a master vacuum regulator, de-aired water tank controls, tap and de-aired water supply outlets and pressure and vacuum outlets.

FlexPanels can manually measure volume change or permeability in a triaxial test sample without the use of a volume change apparatus, a distinct benefit when compared to air/water bladder systems.

  • Bias pressure regulator allows simultaneous control of confining
  • back pressures, while maintaining a constant differential
  • Longer Burette and 0.02ml graduation give more accurate results, better productivity, and faster turnaround
  • Uses no-volume-change Swagelock valves
  • Bridge feature delivers simultaneous control of base and top pressures by adjusting one pressure regulator simplifying testing
  • Quick-connect hookups for fast and reliable set up.
  • Master control panel houses digital pressure readout for the controlling pressure, inlet vacuum regulator & gauge, inlet pressure regulators & gauge, de-aired water tank controls, tap & de-aired water supply outlets, and pressure & vacuum outlets
  • Comply with ASTM D5084; BS 1377 Part 6 1990.

Permeability testing measures the rate of discharge of water under laminar flow conditions through a unit cross-sectional area of a porous medium under a unit hydraulic gradient and standard (20°C) temperature conditions. In permeability testing, soil is subjected to water under a known pressure, and the flow is measured. The coefficient of permeability (k), or simply permeability, expresses the ability of water to flow through the particular medium. The “constant head” test method is applicable to course granular soils such as sands and gravels. The “falling head” test method is applicable to fine grain soils. Either method may be used to test clay soils.

Humboldt FlexPanels
Humboldt FlexPanels provide a simple and highly efficient distribution system for providing air, water and de-aired water for use in permeability and triaxial testing applications. The FlexPanel’s simple, straight-forward configuration, with its integral burettes provides a condensed/compact design that takes up less counter space than competing systems with air/water bladders. The long, narrow burette design of Humboldt's FlexPanels provide faster test processing times when compared to larger, shorter burette systems, while providing the same volume. This is due to the reduced amount of meniscus formation in the narrower burettes, which allows the water level to drop faster, resulting in faster readings. In addition, the use of longer/narrower burettes and a scale graduation of 0.02ml, also provides an easier-to-read and more accurate scale.

FlexPanels also feature a bias regulator and bridge. The bias regulator maintains the differential pressure when confining and back pressures are increased. The bridge delivers simultaneous control of base and top pressures through the use of just one regulator. This feature minimizes operator time and reduces the margin of error in opening and adjusting regulators during a test. The Humboldt FlexPanel system is comprised of 5 separate panel configurations, which can be grouped together to accommodate from 1 to 6 cell setups.

Fast and Easy Setup and Operation
Humboldt FlexPanels make setup fast and easy with clearly labeled ports and quick-connect hookups. Operation is just as easy with clearly labeled controls, large gauges and easy-to-read burette markings. All Humboldt FlexPanels use no-volume change Swagelock valves and Fairchild constant-bleed type precision regulators for accurate control. All inlets and outlets utilize quick-connects to ensure fast, accurate setup to permeameter cells, as well as air, water and drain hook ups. Fittings, tubing and connectors are supplied with each unit. All FlexPanels are designed to handle air pressures up to 150 psi. For testing contaminated samples, Humboldt offers an optional Toxic Interface Unit, which prevents toxic fluids and vapors from entering the FlexPanel. See facing page.

Humboldt FlexPanels Features:
Humboldt FlexPanels are constructed of lightweight aluminum for long, rust-free life. FlexPanels provide an accurate and easy-to-operate solution for controlling compressed air, water, de-aired water and vacuum without the need for air/water bladder interfaces to produce the pressures necessary for permeability and triaxial testing. FlexPanels utilize a set of three burettes to control cell, top cap and base pedestal pressures. This extremely versatile pressure system controls the pressure, water, de-airing tank and vacuum from a single panel. The three burettes allow for the control of the cell pressure and the back pressure for each cell. They can monitor volume change in the sample and can be used to measure the flow of water through the sample for permeability testing. FlexPanels can manually measure volume change or permeability in a triaxial test sample without the use of a volume change apparatus, a distinct benefit when compared to air/water bladder systems.

  HM-4140.3F HM-4140M.3F HM-4150.3F HM-4150M.3F HM-4160.3F HM-4160M.3F HM-4150A HM-4160A
Pressure/ Resolution 2-150 psi (0.1 psi) 14-1000 kPa (1 kPa) 2-150 psi
(0.1 psi)
14-1000 kPa (1 kPa) 2-150 psi
(0.1 psi)
14-1000 kPa (1 kPa) Not Applicable
Vacuum 0-14.7 psi
or 30 Hg
(0-100kPa)
or 30 Hg
0-14.7 psi
or 30 Hg
(0-100kPa)
or 30 Hg
0-14.7 psi
or 30 Hg
(0-100kPa)
or 30 Hg
Inner Burette
Cell Not Applicable 50cc x 0.1 cc (ml)
Top Not Applicable 10cc x 0.02 cc (ml)
Base Not Applicable 10cc x 0.02 cc (ml)
Outer Burette
Cell Not Applicable 400 cc (ml)
Top Not Applicable 460 cc (ml)
Base Not Applicable 460 cc (ml)
Voltage 110/220VAC 50/60Hz Not Applicable
Power 6 watts
Operating Temperature 14 to 158°F (-10 to 70°C)
Dimensions 8 x 8 x 37.5"
(203 x 203 x 952mm)
8 x 25.5 x 37.5"
(203 x 648 x 952mm)
8 x 43.5 x 37.5"
(203 x 1105 x 952mm)
8 x 19.5 x 37.5"
(203 x 495 x 952)
8 x 37.5 x 37.5"
(203 x 952 x 952)
Shipping Weight 35lb (16kg) 95lb (43kg) 145lb (66kg) 107lb (49kg) 157lb (71kg)

Literature

Manuals, Data Sheets & Safety Data Sheets
Distribution Panels FlexPanels (Data Sheet PDF)
Humboldt Triaxial Equipment Guide-LR0417 (Data Sheet PDF)
Triaxial-Catalog-Spanish (Data Sheet PDF)
HM-4150 man 1209 (Product Manual PDF)

Standards

Standards
ASTM D5084
BS 1377 Part 6 1990
Related Items
  • FlexPanels - Master Control Panel

    HM-4160.XX

    FlexPanels - Master Control Panel

    Provides pressure controls and readouts for permeability and triaxial applications.

  • FlexPanels, 1-Cell Auxiliary Panel

    HM-4150A

    FlexPanels, 1-Cell Auxiliary Panel

    1-Cell Auxiliary Panel for system expansion

  • FlexPanels, 2-Cell Auxiliary Panel

    HM-4160A

    FlexPanels, 2-Cell Auxiliary Panel

    2-Cell Auxiliary Panel for system expansion

  • Permeability Test Toxic Interface Unit

    HM-4190

    Permeability Test Toxic Interface Unit

    Safe and convenient means of performing permeability tests of corrosive or toxic permeants.
