One-Piece Construction Sample Splitters

One-Piece Construction Sample Splitters

Product Options

  Part Number & Name Price QTY
Humboldt Sample Splitter 0.50" (12.7mm) Max Material SizeH-3966
Humboldt Sample Splitter 0.50" (12.7mm) Max Material Size
$480.00
Humboldt Sample Splitter 0.66" (16.9mm) Max Material SizeH-3987
Humboldt Sample Splitter 0.66" (16.9mm) Max Material Size
$498.00
Humboldt Sample Splitter 1.33" (33.8mm) Max Material SizeH-3989
Humboldt Sample Splitter 1.33" (33.8mm) Max Material Size
$500.00
Humboldt Sample Splitter 1.00" (25.4mm) Max Material SizeH-3990
Humboldt Sample Splitter 1.00" (25.4mm) Max Material Size
$500.00
Humboldt Sample Splitter 1.67" (42.3mm) Max Material SizeH-3992
Humboldt Sample Splitter 1.67" (42.3mm) Max Material Size
$550.00
Add to Cart

One-Piece Construction Sample Splitters

Supports the following standards: ASTM C702, ASTM C128, AASHTO T27, AASHTO T144, AASHTO T248

Riffle-type sample splitters divide or halve dry materials such as cement, gravel, powdered ores, coal, coke, sand, soils, etc. Material poured into the hopper is divided into two equal portions by a series of chutes that discharge the material alternately in opposite directions into separate pans. Humboldt splitters are constructed of cold-rolled steel, or in some cases, stainless steel— see chart below for quantity and construction of pans included. Also refer to the chart below for ordering replacement or extra pans. All splitters include pans, scoop and cleaning brush. See chart below for product details on specific models.

One-Piece Construction Sample Splitters
For rapid, single-step reduction of large sample volumes— ideal for field applications. See models: H-3962, H-3964, H-3966, H-3987, H-3989, H-3990, H-3992.

H-3966:
Material Size: 0.50" (12.7mm), Chutes: (14), .750" (19mm) width; Hopper: 6.75" width x 14.75" length (171 X 375mm); (4) H-3967S Pans— (13.25" x 6.625" x 5.125" (337 x 168 x 130mm) L W D

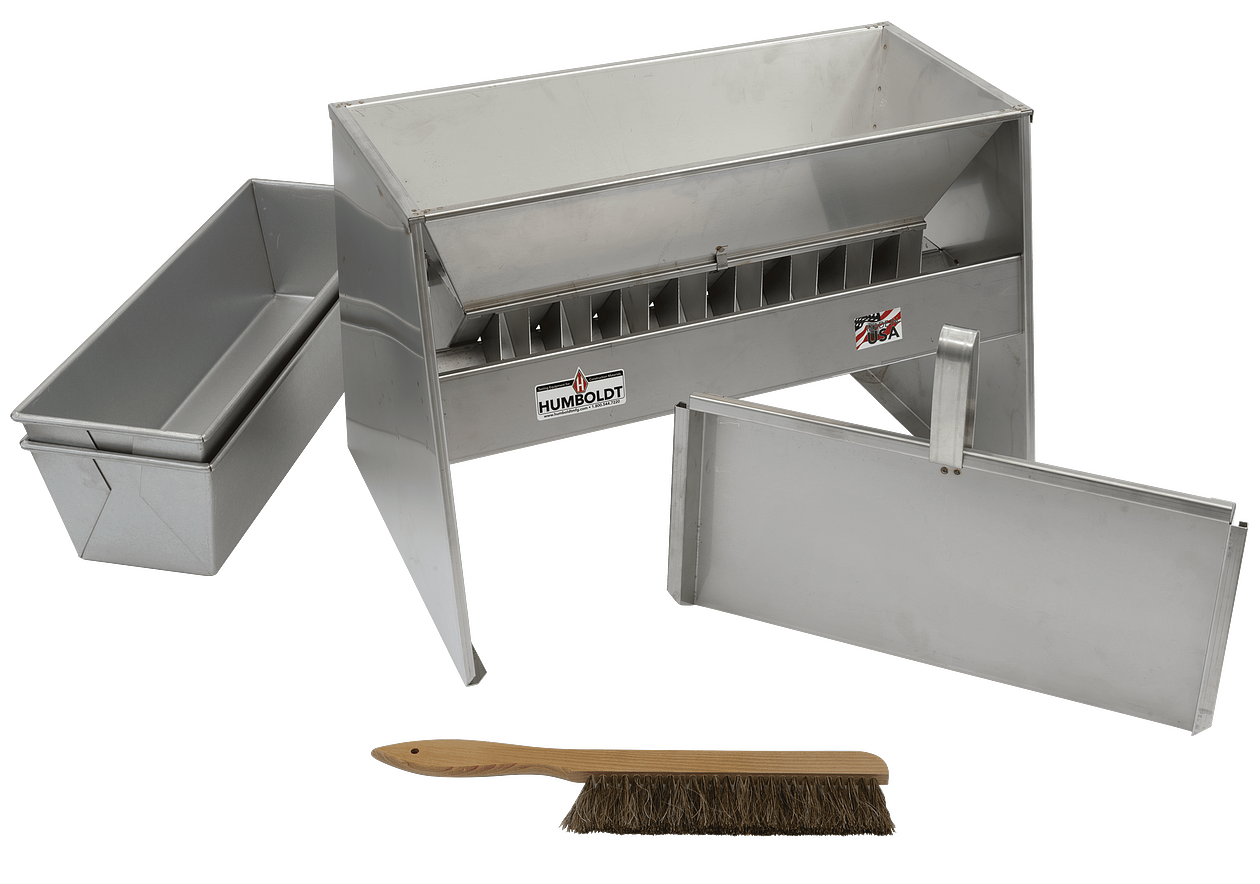

H-3987:
Material Size: 0.66" (16.9mm), Chutes: (16), 1.00" (25.4mm) width; Hopper: 9" width x 20" length (229 X 508mm); (4) H-3988 Pans— x 19" x 6.375" x 4.875" (483 x 162 x 124mm) L W D

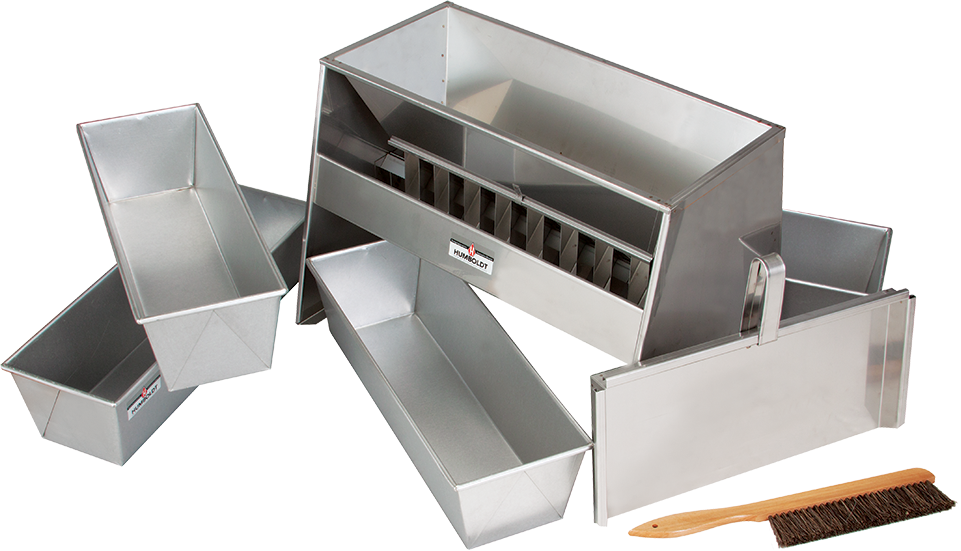

H-3989:
Material Size: 1.33" (33.8mm), Chutes: (8), 2.00" (50.8mm) width; Hopper: 9.5" width x 19.5" length (241 X 495mm); (4) H-3988 Pans— 19" x 6.375" x 4.875" (483 x 162 x 124mm) L W D

H-3990:
Material Size: 1.00" (25.4mm), Chutes: (10), 1.50" (38.1mm) width; Hopper: 9" width x 20" length (229 X 508mm); (4) H-3988 Pans— 19" x 6.375" x 4.875" (483 x 162 x 124mm) L W D

H-3992:
Material Size: 1.67" (42.3mm), Chutes: (8), 2.50" (63.5mm) width; Hopper: 9" width x 24" length (229 X 610mm); (4) H-3993S Pans— 22" x 6.75" x 5.125" (559 x 171 x 130mm) L W D

Replacement Parts

  Part Number & Name Price QTY
Stainless Steel Rectangular Pans Stainless Steel Rectangular PansClick for Options
H-3988
Steel Pan for H-3987, H-3989, H-3990 Splitters, 19 x 6.5 x 5.25" (483 x 165 x 133mm)
$27.00
H-3988AS
Stainless Pan, 16.375 x 6.5 x 5.25" (416 x 165 x 133mm)
$68.00
Add to Cart

Standards

Standards
ASTM C702
ASTM C128
AASHTO T27
AASHTO T144
AASHTO T248
