Smart DCP for Dual-Mass Penetrometers
Smart DCP for Dual-Mass Penetrometers
The SmartDCP makes collecting soil data with your Dynamic Cone Penetrometer much easier by automatically counting blows and eliminating the need for tape, pencils, paper and at times a second operator. It also provides vastly improved accuracy and ease of collecting and transferring data from the field to the office.
The SmartDCP achieves this by:
- Automatically counting blows;
- Recording the change in depth with each blow;
- Tracking the total depth of the probe;
- Recording data on Apple iOS and Android smart devices via WIFI;
- Eliminating the need for a ruler, pencil, and paper,
- and, transferring data via e-mail or USB from the smart device
The SmartDCP kit can be mounted to most hand held DCPs on the market and is easily operated by a single person. The investment cost associated with the SmartDCP is quickly realized through the reduction in time spent doing field tests, as well as the increased accuracy and ease of transferring data and creating reports. Users have repeatedly doubled the number of completed tests with increased accuracy when compared to the traditional manual data collection method of using a scale and paper log.
In the field the SmartDCP records data on a smart App. The App is free and available for download at the iOS App store for iPhones or Google Play for Android phones. The SmartDCP App immediately provides real time CBR%, depth change between blows, as well as total depth of penetration with each data point. Completed tests can be graphed on the smart device in the field for quick analysis or sent via email to the investigation lead to review in the office A complimentary desktop application for Window's systems is also available. The desktop application can be used to quickly graph your field data and keep your data organized using the application and Windows Explorer. This program can be downloaded from the following link: http://www.vertekcpt.com/dcp-handheld-and-adcp or via electronic transmittal.
- Touchscreen user interface (Android only)
- Real-time display of test data
- Data transfer to computer via WIFI or USB
- Displays mm per blow; blow counts vs. delta distance per blow (mm)
- Displays depth plot; depth (0-100cm) vs. number of blows
- Displays CBR plot; depth (0-100cm) vs. CBR%
- Fast setup / fast deployment
- Uses wireless WIFI laser depth transducer
- ANDROID OS version 2.2 or higher
- WIFI-enabled ANDROID smart phone or tablet
- SD card

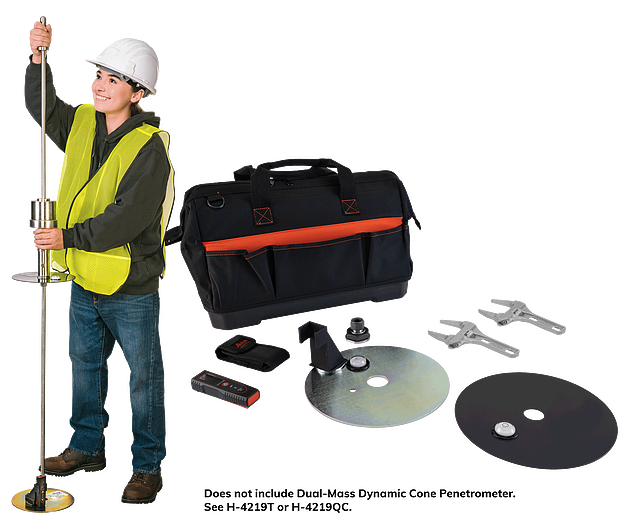

The H-4219.30 SmartDCP includes:
carry bag; Leica Disto E7100i Laser Range Finder with batteries; Baseplate with laser mount; laser target; smart device arm band; stamped wrench and 1” combination set, and a manual.
Does not include Dual-Mass Dynamic Cone Penetrometer See H-4219T or H-4219QC.
For additional information about SmartDCP, click here.
|Manuals, Data Sheets & Safety Data Sheets|
|H-4219.30-SmartDCP-Manual (Product Manual PDF)|
SmartDCP - Traditional vs. SmartDCP Method
Rather than relying on traditional measurement by hand, our laser measurement system makes this process both instantaneous and accurate. The SmartDCP Method allows the measurements to be taken by one person, and data is transferred wirelessly to the DCP app to log data in real time.
SmartDCP Adding an Extension
With the new SmartDCP, you can easily add an extension to increase the depth of measurement with simple assembly. Remember to pause your test from the DCP app before removing parts and adding the extension.
SmartDCP - Assembly and Operation
This demonstration shows us step by step how to assemble and use the SmartDCP. Everything needed for assembling the penetrometer comes in the Smart DCP kit. Once it is set up, remember to open the SmartDCP app, available for download at the iOS App store for iPhones or Google Play for Android Phones. After both the penetrometer and app are up and running, you can begin testing and logging information.
SmartDCP - Syncing with a Device
One of the added benefits of the SmartDCP is the ability to sync the penetrometer with a Smart App on any mobile device, eliminating the need for tape, pencils, paper and at times a second operator. After launching the app it will begin locating the range finder, once found, any data from tests will automatically appear in the app.
SmartDCP - Downloading the App
The incorporation of App technology makes the new SmartDCP the most efficient DCP method yet. The Smart DCP App is available for download at the iOS App store for iPhones or Google Play for Android Phones. Search “Smart DCP” in either App store to find the app and click install or download to start using your SmartDCP.
SmartDCP - Field Plotting of the Data
The SmartDCP provides vastly improved accuracy and ease of collecting and transferring data from the field to the office. After completing testing, data can be emailed to the office or downloaded directly from the smart device. The SmartDCP desktop software enables you to open the CSV files from the field on your computer. Data and graphs can be viewed or copied from that software.
