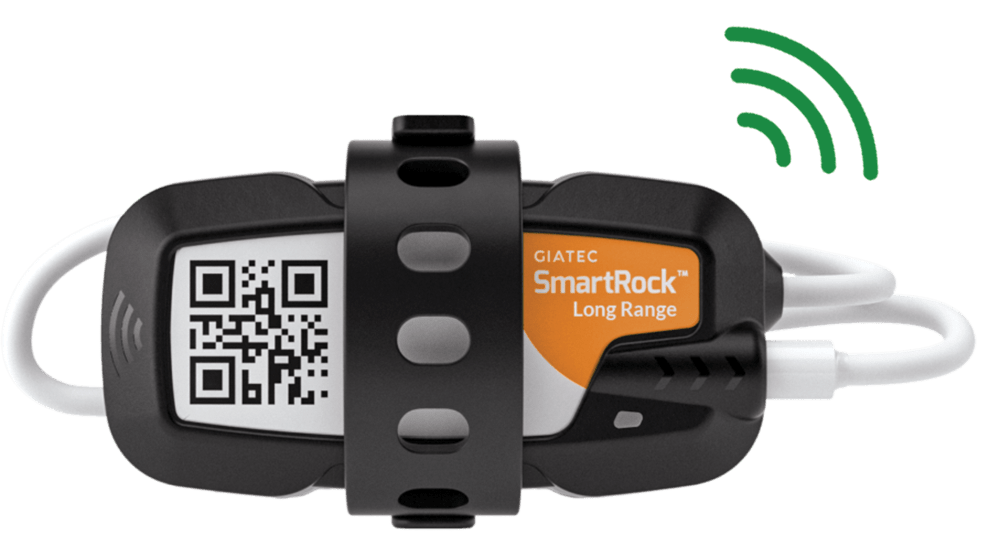

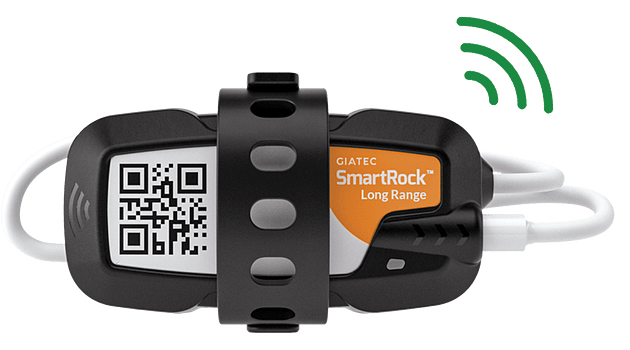

SmartRock Long-Range Concrete Sensor

The SmartRock Long Range and SmartHub™ Long Range temperature and strength monitoring solution is a new generation, revolutionary ecosystem for effective 24/7 remote monitoring on concrete job sites. It enables contractors, testing agencies, and concrete producers to have real-time insights into hard-to-reach places and hazardous projects like highway structures or high-rise buildings, as well as excelling in harsh applications like cold-weather concreting. With the SmartRock Long-Range sensors connected to the SmartHub Long Range, data collection can be performed effectively with the strong range of signal, making it convenient for remote monitoring at large sites, enabling accurate monitoring of concrete curing and hardening.

Benefits:
With this Long-Range solution, sensors can alert the construction teams to potential issues early in the curing process, which helps in improving quality control. With access to accurate and timely data, these sensors help mitigate the risk of concrete-related issues and failures on large sites, ultimately reducing the potential for costly rework or project delays.

Regular / Long Range Sensor Specifications
Reading Range: -22 to +181°F (-30 to 85°C)
Measurement Accuracy: ± 1.8 °F (± 1°C)
Measurement Resolution: ± .18 °F (± 0.1°C)
Measured Frequency: Once every 15 mins.
Temperature Cable Length: 12 in (30 cm) / 10 ft (3 m) / By request: 50 ft (15.2 m)
Data Formats: Export as PDF or CSV
Battery Life: Up to 4 months
