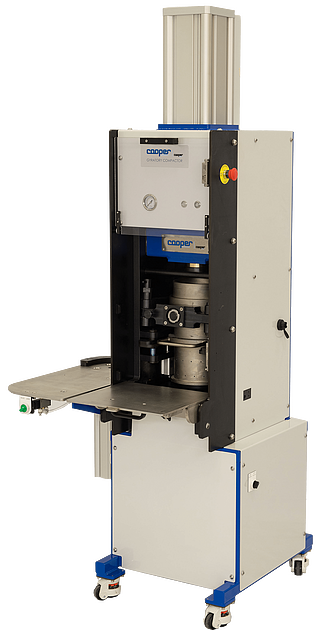

Superpave GYR Gyratory, 220V 50/60Hz

Superpave GYR Gyratory, 220V 50/60Hz

Product Options


Part Number & Name
Price QTY
HA-5000A.4F
Superpave GYR Gyratory, 220V 50/60Hz
$32,250.00
Add to Saved Cart

Superpave GYR Gyratory, 220V 50/60Hz

Supports the following standards: ASTM D6925, AASHTO T312, CS9010-1115, CS9010-1230, SHRP M-002, T 0736-2011, TEX- 241-F, EN 12697-10

Compaction is achieved by the application of a vertical stress (normally 600KPa (87psi)) via end platens to a known mass of asphaltic mixture within a 150 and 100mm (6" and 4") internal Ø mold. The longitudinal axis of the mold is rotated (gyrated) at a fixed angle to the vertical while the platens are kept parallel and horizontal. During compaction the height of the sample is automatically measured and both the mixture density and void content calculated.

Features:

  • Automatic mold insertion and retraction on side table which allows cooling time before extraction without loss of compaction time (especially important for rubberized asphalt)
  • 150 mm and 100 mm (6 and 4 inch) internal Ø molds can be tested without changing parts
  • Cold mix (emulsion) materials can be compacted and the expelled fluid collected
  • Ethernet and multiple USB connections for data acquisition and control system
  • User friendly LabVIEW™ software displays results in real time
  • Machine calibrated with traceable equipment
  • Option for mold up to 300 mm (11.8 inch) high
  • Manufactured in the UK

Software:

  • User friendly, intuitive and reliable Windows® software developed using LabVIEW™
  • Software allows 3 methods of compaction – number of gyrations, height and target density. The operator is guided through every step of the compaction
  • Real-time display of current height, density & void content (%) Data is recorded to disk at regular intervals for further analysis
  • Utilities are included for transducer check, diagnostic routines and calibration
Specifications
Speed:Normally 30 rpm
Stress:Normally 600 kPa (87psi) Maximum 1000 kPa (145psi)
Actuator Stroke:9.85" (250mm)
Internal Angle of Gyration:0.2 to > 2°
Electrical Supply:220V 60 Hz
Specimen Ø mm (inch):6" (150mm) and 4" (100mm)
Compressed Air:7-10 bar (100-145psi) @ 12.5cfm (350 lpm)
Mixtures:Wet, dry and rubber
Dimensions:31" x 40" x 76" (780 x 1000 x 1920mm)
Working Space Required (WxDxH):79" x 79" x 87" (2000 x 2000 x 2200mm)
Desktop PC:Included

Accessories


Part Number & Name
Price QTY
HA-5000.17
Specimen Extruder, Automatic
HA-5000.19
Rubberized asphalt option
$431.00
HA-5000.20
Dynamic Angle Verification (DAV) with Hot Mixed Simulator (HMS)
$10,800.00
HA-5000.2
6" (150mm) Internal Ø mold & platens with specimen temperature measurement
$1,407.00
HA-5000.6
6" (150mm) Internal Ø mold & platens, slotted for emulsion mix
$1,293.00
HA-5000.4
4" (100mm) Internal Ø mold & platens, slotted for emulsion mix
$1,274.00
HA-5000.5
4" (100mm) Internal Ø mold & platens, slotted – includes features for specimen temperature measurement
$1,387.00
HA-5000.21
Lift handle for light weight gyro mold
$90.00
HA-5000.10
6" (150mm) Spacer to compact 2.5" (63mm) height on Gyratory
$247.00
HA-5000.11
Spacer, 100mm to compact 63mm height on HA-5000
HA-5000.13
Shear force display
HA-5000.14
Specimen Temperature Measurement
HA-5000.12
Calibration kit for internal angle lead
HA-5000.16
9cm (90mm) Circle Filter Paper (100 pk)
HA-5000.15
6" (150mm) circle filter papers (100pk)
$68.00
Add to Saved Cart

Standards

Standards

ASTM D6925

AASHTO T312

CS9010-1115

CS9010-1230

SHRP M-002

T 0736-2011

TEX- 241-F

EN 12697-10
