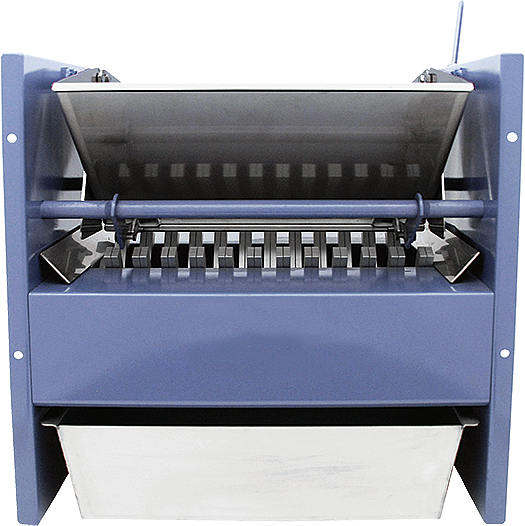

Versa-Splitter Sample Splitter

Versa-Splitter Sample Splitter

Product Options

  Part Number & Name Price QTY
Versa-Splitter Sample SplitterH-4290
Versa-Splitter Sample Splitter
$600.00
Add to Cart

Versa-Splitter Sample Splitter

The Versa-Splitter can be used for fine aggregates up to .75" (19mm) aggregate. Contact parts and pans are stainless steel except for aluminum chute bars, which are anodized for corrosion resistance. Includes 2 pans.

Hopper Capacity: 0.25ft3 (7.9L)
Chute Bar Width: .25" (6mm)
Chute Bar Amount: 48
Chute Slope: 60°
Dimensions: 15.5" x 12.5" x 17.5" (394 x 318 x 445mm)

Number of Chutes (openings)

Number of Chutes
(openings)
Model Chute Width - inches
.125 .25 .375 .5 .75 1 1.5 2 3 4 6
H-4291 48 24 16 12 8 6 4 - - - -
H-4290 - 48 - 24 16 12 8 6 4 - -
H-4289 - - - 36 - 18 12 - - - -
H-4288 - - - 48 - 24 16 12 8 6 4
H-4293 - - - 48 - 24 16 12 8 6 4
Hopper
Capacity in3/ft3 (liters)
Chute Bar
Width
Chute Bar
Amount
Chute
Slope
Dimensions
L x W x H inches (mm)
Gilson
#
Model Pans
Replacements
104 in3 (1.7) .125" (3mm) 48 60° 9.5 x 8.5 x 13.5 (214 x 216 x 343) SP-3 H-4291 H-4291.1
.28 ft3 (7.9) .25" (6mm) 48 60° 15.5 x 12.5 x 17.5 (394 x 318 x 445) SP-2.5 H-4290 H-4290.1
0.55 ft3 (15.6) .5" (13mm) 36 45° 22 x 14.5 x 20.5 (559 x 368 x 521) SP-2 H-4289 H-4289.1
1.0 ft3 (28.3) .5" (13mm) 48 45° 29 x 19 x 39 (737 x 483 x 991) SP-1 H-4288 H-4288.2
1.0 ft3 (28.3) .5" (13mm) 10 Fixed 60° 29 x 19 x 39 (737 x 483 x 991) SP-1C H-4288FC H-4288.2
1.0 ft3 (28.3) 1" (25mm) 48 60° 29 x 19 x 39 (737 x 483 x 991) SP-10 H-4293 H-4288.2

Accessories

  Part Number & Name Price QTY
Dust EnclosuresClick for Options
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
H-4290.1
Replacement Pan for H-4290 Universal Sample Splitter, Gilson Model SP-2.5
$63.50
Add to Cart
