Humidity Curing Chambers, Workbench-style

Supports the following standards: ASTM C109, EN 196-1

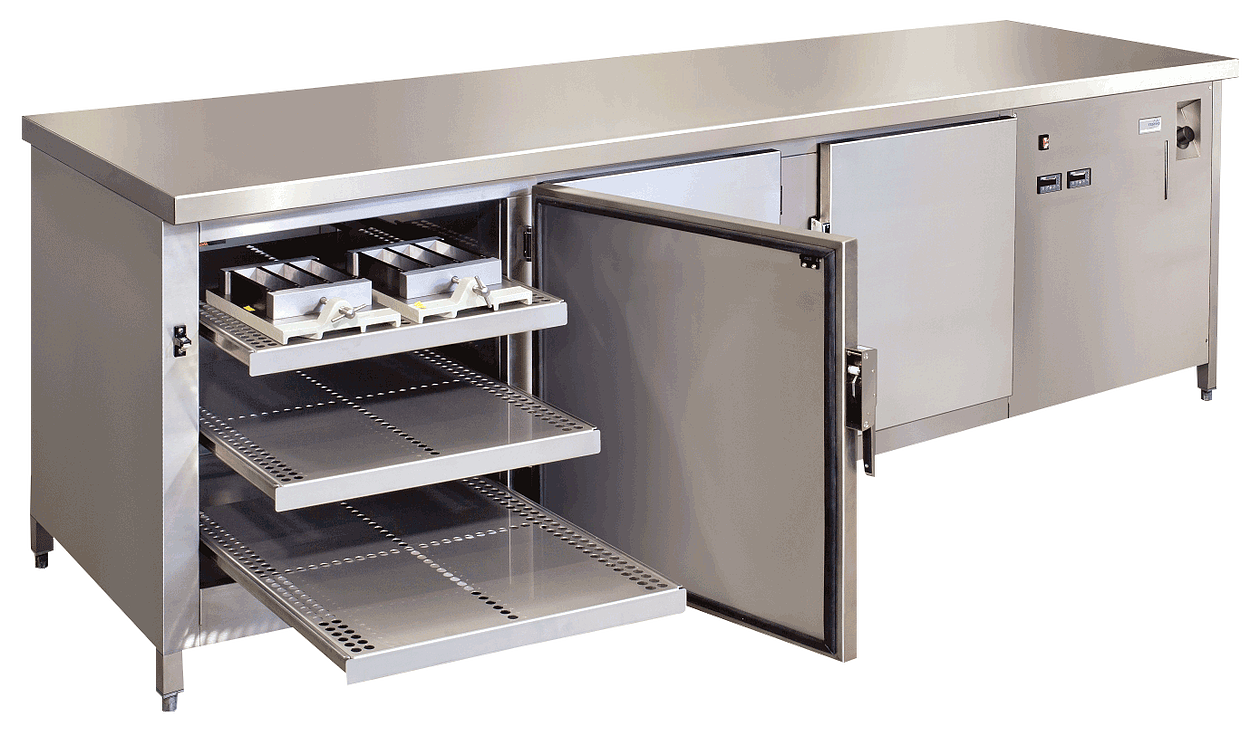

These humidity cabinets have been designed as a workbench to provide a work surface, as well as a cabinet for curing and storage of mortar prisms and cubes in 3-gang molds. They feature durable stainless steel construction with durable specimen shelves that stand up to the loading and unloading of molds.
These chambers maintain a curing temperature 68°F (20°C) at an accuracy of ±1°. A humidity reading of 95% can be maintained at an accuracy of ±3%. These parameters are maintained through the use of an electronic, adjustable controller for both temperature and humidity.
Chambers are available with 3, 6 or 9 shelves. Each shelf will hold (4) 3-gang molds. So the 6-shelf model will hold (12) 3-gang molds; the 6-shelf model will hold (24) 3-gang molds and the 12-shelf model will hold (36) 3-gang molds.
Electrical specifications for these cabinets are 230V / 50/60 Hz / 1200 W.

3-Shelf Model:12 EN 196 molds, 30 ASTM C109 2" cube molds
6-Shelf Model:24 EN 196 molds, 60 ASTM C109 2" cube molds
9-Shelf Model:36 EN 196 molds, 90 ASTM C109 2" cube molds
Dimensions:3-Shelf Model: 63" x 31.4" x 35.4"(1600 x 800 x 900mm)
6-Shelf Model: 89" x 31.4" x 35.4" (2255 x 800 x 900mm
9-Shelf Model: 104" x 31.4" x 35.4" (2650 x 800 x 900mm
Power:230V 50/60Hz - 1200W




EN 196-1
