Constant Head Permeameter Cells

Constant Head Permeameter Cells

Product Options

  Part Number & Name Price QTY
Permeameter Cell, 2.5" (63mm)HM-5801
Permeameter Cell, 2.5" (63mm)
$355.00
Permeameter Cell, 3.0" (76mm)HM-5802
Permeameter Cell, 3.0" (76mm)
$355.00
Permeameter Cell, 4.5" (114mm)HM-5803
Permeameter Cell, 4.5" (114mm)
$535.00
Permeameter Cell, 6" (152mm)HM-5804
Permeameter Cell, 6" (152mm)
$855.00
Permeameter Cell, 9" (229mm)HM-5805
Permeameter Cell, 9" (229mm)
$1,045.00
Add to Cart

Constant Head Permeameter Cells

Use to determine the coefficient of permeability by the constant head method for laminar flow of water through granular soils. Two manometer ports are grooved & screened on the inside. Distance between ports is always equal to diameter. 100 mesh screens used to prevent migration of material through valves & tubing during test. Acrylic chamber permits viewing sample. Spring incorporated into top cap to apply 5-10 lbs. force against screen to prevent soil density changes. End caps and clamping ring are anodized aluminum. Each cell comes complete with valves and perforated screens. 9" (229mm) cells are made to order.

The Constant Head Permeameter Cells supports the following standards: ASTM D2434, BS 1377 Part 5

Accessories

  Part Number & Name Price QTY
Permeameter Cell Replacement Screen, 2.5" (Set of 2) for HM-5801 HM-5801.7
Permeameter Cell Replacement Screen, 2.5" (Set of 2) for HM-5801
$14.50
Permeameter Cell Replacement Screens 2.485" (Set of 3) HM-5801.8
Permeameter Cell Replacement Screens 2.485" (Set of 3)
$11.50
Perforated Plate 2.5" HM-5801.9
Perforated Plate 2.5"
$5.00

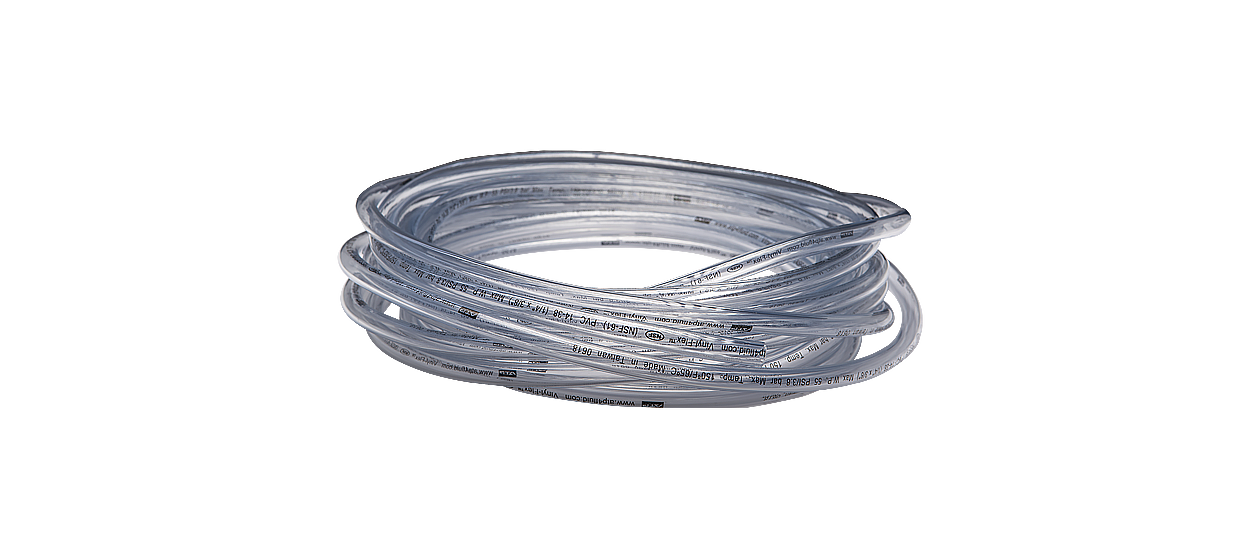

Tubing, 0.25" ID x 0.375" OD, 25ft. HM-003349
Tubing, 0.25" ID x 0.375" OD, 25ft.
$13.50
Add to Cart

Standards

Standards
ASTM D2434
BS 1377 Part 5
