De-Aired Water System for Triaxial Testing, 120/220V 50/60Hz
Product Options

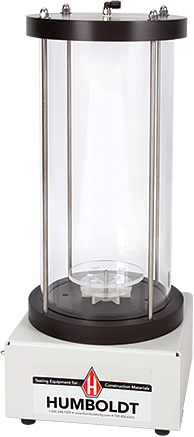

De-Aired Water System for Triaxial Testing, 120/220V 50/60Hz
Supports the following standards: ASTM D4767, ASTM D5084, ASTM D6035, ASTM D7181
The HM-4187A.3F produces 8-liter batches of de-aired water without the use of heat. Combined mechanical agitation and vacuum evacuation removes gasses at much higher rate than conventional heat-boiling methods. Will de-air water to less than 0.5 pph dissolved oxygen in 4 minutes. Requires a vacuum pump, 1/55hp motor 110V, 60Hz. 7.5 x 7.5 x 20" (190 x 190 x 508mm).
Literature
Manuals, Data Sheets & Safety Data Sheets
Humboldt Triaxial Equipment Guide-LR0417 (Data Sheet PDF)
HM-4187A man 0811 (Product Manual PDF)
