Displacement Crack Gauge
Product Options
Displacement Crack Gauge

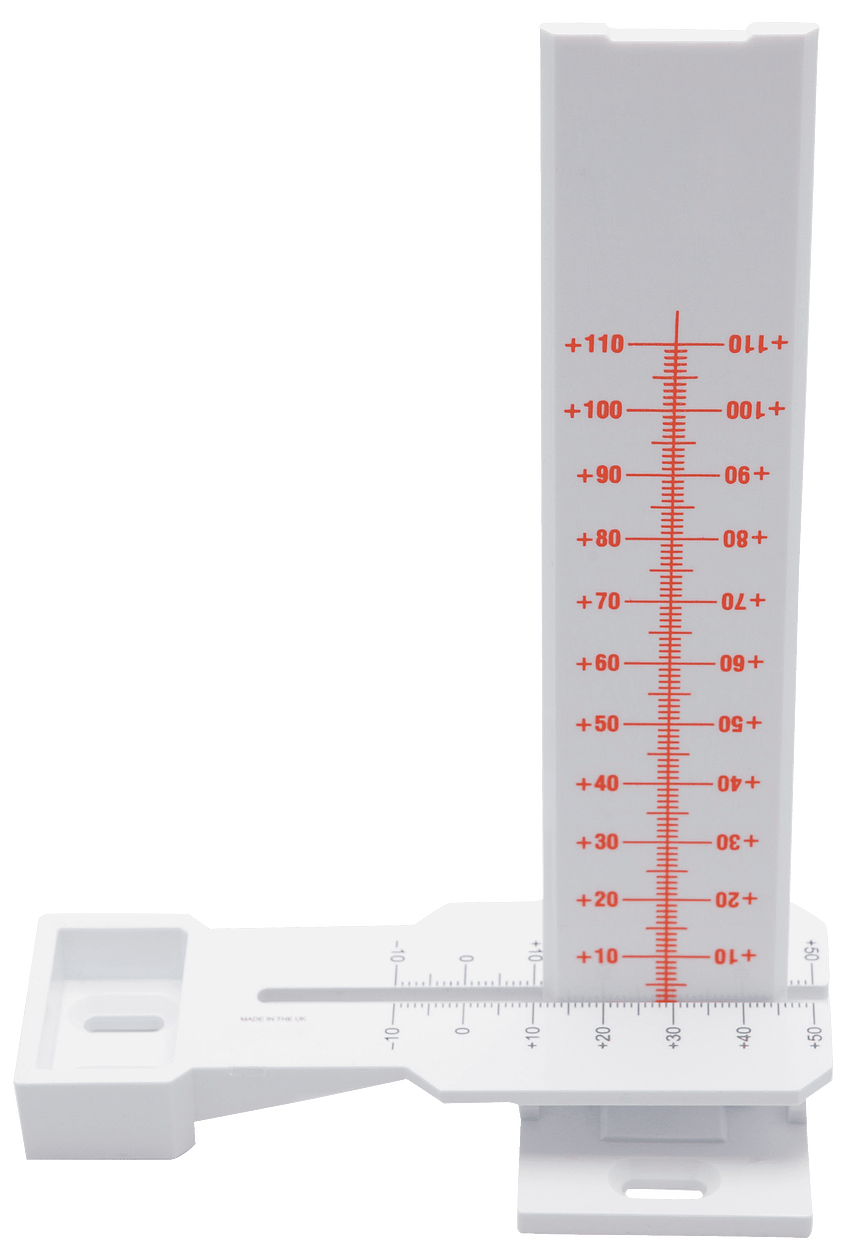

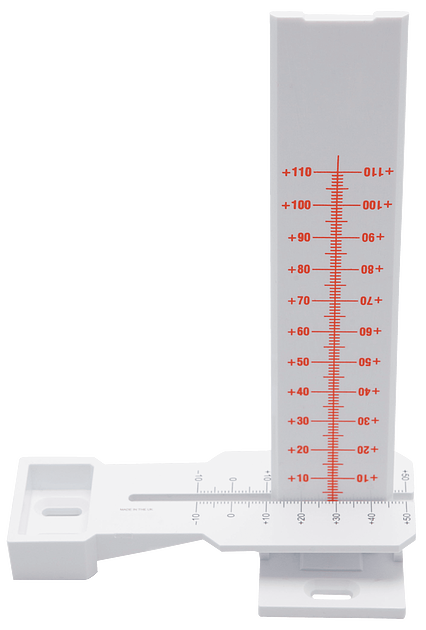

The displacement crack gauge monitors horizontal and displacement movement where there is a step across a crack due to displacement of “out-of-plane” movement. The gauge consists of a base plate (not calibrated), a top plate (calibrated) and a graduated ruler. The ruler is removed from the gauge when not taking a measurement, but used to measure the relative movement in the plates. Can be fixed to the surface with screws or adhesive (not included). Supplied with instructions and record sheet.
Accessories
Literature
Manuals, Data Sheets & Safety Data Sheets
HC-2939 man 1110 (Product Manual PDF)
