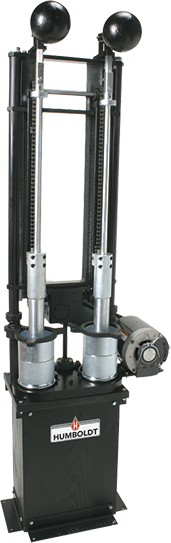

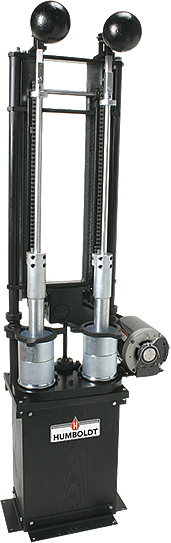

Marshall Compactor, Double, 4", Automatic with Rotating Base

Marshall Compactor, Double, 4", Automatic with Rotating Base

Product Options

  Part Number & Name Price QTY
Marshall Asphalt, Double Compactor, 4", Automatic with Rotating Base, 115V 60HzH-1346D
Marshall Asphalt, Double Compactor, 4", Automatic with Rotating Base, 115V 60Hz
$4,210.00
Marshall Asphalt, Double Compactor, 4", Automatic with Rotating Base, 230V 60HzH-1346D.2F
Marshall Asphalt, Double Compactor, 4", Automatic with Rotating Base, 230V 60Hz
$4,410.00
Marshall Asphalt, Double Compactor, 4", Automatic with Rotating Base, 230V 50HzH-1346D.5F
Marshall Asphalt, Double Compactor, 4", Automatic with Rotating Base, 230V 50Hz
$4,510.00
Add to Cart

Marshall Compactor, Double, 4", Automatic with Rotating Base

Supports the following standards: ASTM D6926, AASHTO T245, PTM705

This compactor automatically compacts two samples simultaneously at a preset number of hammer blows and shuts off at completion. The compactor features rotating bases with tapered-foot hammers. Unit includes mechanical compactor, automatic counter, ASTM-compliant oak compaction pedestal, (2) hammers and (2) H-1337 mold assemblies. Additional mold and hammer assemblies are recommended for efficient testing operations, allowing you to preheat multiple molds and hammers to speed testing.

Accessories

  Part Number & Name Price QTY
Paper Disks Paper DisksClick for Options
Mold Extractor, 4" H-1348
Mold Extractor, 4"
$69.00
Marshall Mix Design and Testing Booklet H-1328A
Marshall Mix Design and Testing Booklet
$25.00
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
H-1338B
Asphalt Compactor, Standard Duty, 4" Hammer with tapered foot
$314.00
H-1336.21
Standard-Duty, Automatic Compactors, Lift Chain
$108.20
Replacement Counter and Proximity Switch for Marshall Compactor Replacement Counter and Proximity Switch for Marshall CompactorClick for Options
H-1356D Marshall Compactor, Replacement Pedestal H-1347M
H-1356D Marshall Compactor, Replacement Pedestal
$290.00
H-1338C
Asphalt Compactor, Standard Duty, Automatic, 4" hammer with "Canadian" tapered foot (rotating base)
$356.00
H-1338.40A
Lift Catch Assembly, Complete, for SD Compactors
$82.00
H-1338.28
Release Block for Lift Catch Assembly, SD Compacors
$15.00
H-1338.28.1
Pin for Lift Catch Assembly, SD Compactors
$3.50
H-1338.29
Clevis Pin with Screw for Lift Catch Assembly, SD Compactor
$5.50
H-1338.30
Lift Catch for SD Compactors
$23.00
H-1338.31
Spring for Lift Catch Assembly, SD Compactor
$3.00
H-1338.36
Screw for Lift Catch Assembly
$2.40
H-1338.37
Washer for Lift Catch Assembly
$0.70
H-1338.40
Release Housing for Lift Catch Assembly, SD Compactors
$23.00
H-1338.40.1
Screw for Release Housing, Lift Catch Assembly
$3.20
H-1338.29
Clevis Pin with Screw for Lift Catch Assembly, SD Compactor
$5.50
H-1338.25
Locator Guide for Hammer Assemblies, SD Compactors
$18.00
H-1338.25.1
Hex Head Bolt for Hammer Assemblies, SD Compactors
$1.60
H-1338.25.2
Washer for Hammer Assemblies, SD Compactors
$0.60
H-1338.25.3
Nut for Hammer Assemblies, SD Compactors
$0.60
H-1338.25.4
Spacer for Hammer Assemblies, SD Compactors
$4.75
H-1338.26
Hammer Handle for Hammer Assemblies, SD Compactors
$16.00
H-1338.26.1
Spring Pin for Hammer Assemblies, SD Compactors
$0.60
H-1338.27
Hammer Rod for Hammer Assemblies, SD Compactors
$45.80
H-1338.32
Hammer Weight (complete), SD Compactors
$170.00
H-1338.33
Plug for Hammer Assemblies, SD Compactors
$15.20
H-1338.34
Hammer Assemblies Spring for SD Compactors
$3.40
H-1338.35
Hammer Foot for SD Compactors, Flat for Stationary Base
$80.00
H-1338.38
Hammer Foot for SD Compactors, Tapered for Rotating Base
$78.00
H-1338.39
Hammer Foot for SD Compactors, Canadian specification
$75.10
H-1338.35.1
Set Screw for Foot on SD Compactor Hammers (2 required)
$1.10
H-1338.36
Screw for Lift Catch Assembly
$2.40
H-1338.37
Washer for Lift Catch Assembly
$0.70
H-1336D Marshall Compactor, Replacement Pedestal H-1347.2M
H-1336D Marshall Compactor, Replacement Pedestal
$385.00
H-1346D Marshall Compactor, Replacement Pedestal H-1347.3M
H-1346D Marshall Compactor, Replacement Pedestal
$465.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-1336 46 56D man 0609 (Product Manual PDF)

Standards

Standards
ASTM D6926
AASHTO T245
PTM705
