Ductility Machine, Temperature-Controlled

Ductility Machine, Temperature-Controlled

Product Options

  Part Number & Name Price QTY
Ductility Machine, Temperature Controlled, 120V 60HzH-1068B
Ductility Machine, Temperature Controlled, 120V 60Hz
$17,300.00
Ductility Machine, Temperature Controlled, 220V 60HzH-1068B.2F
Ductility Machine, Temperature Controlled, 220V 60Hz
$17,800.00
Ductility Machine, Temperature Controlled, 220V 50HzH-1068B.5F
Ductility Machine, Temperature Controlled, 220V 50Hz
$18,000.00
Add to Cart

Ductility Machine, Temperature-Controlled

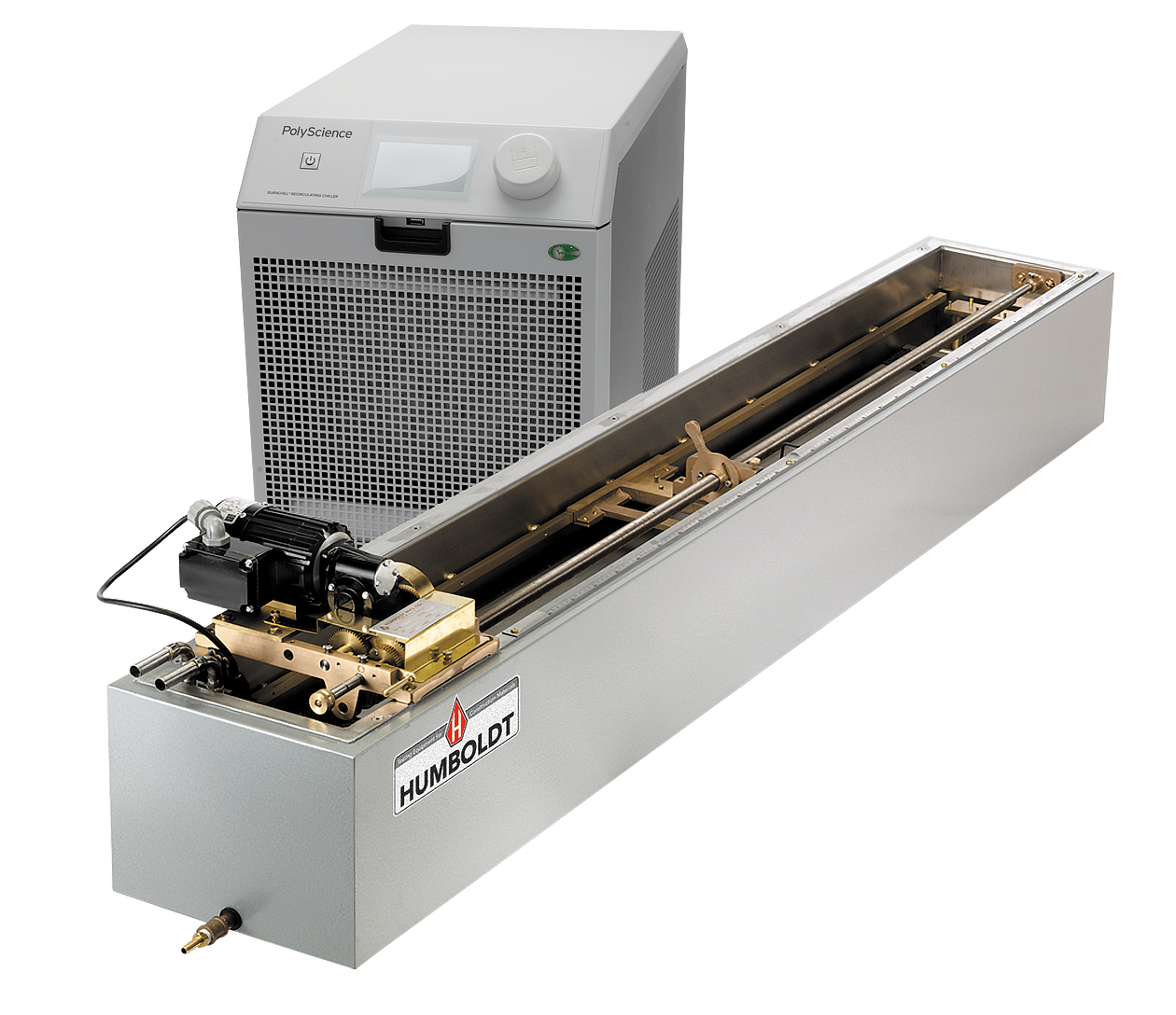

The H-1068 Ductility machine builds on the H-1068X machine and adds a circulating temperature-control unit. Solid-state thermostatically controlled bath and circulator maintain water temperature within a ± 0.18°F (± 0.1°C). The H-1068B is a three-speed machine designed for Standard and Force Ductility tests. The unit tests three briquettes simultaneously and its DC, direct-drive motor maintains constant speed, entirely vibration-free. Speeds of 1/4, 1 or 5cm per minute are selected via lever shift on mechanical gear box.

A single stainless steel lead screw mounted above water level prevents agitation of water and premature rupture of specimens. A traveling pointer adjusts to zero starting position and indicates exact position of carriage on a linear centimeter scale attached to trough‘s front edge. Maximum carriage travel (elongation) is 150cm with an automatic stop.

The Unit has a stainless steel interior with an overflow connection, and a baked-enamel, stainless steel-wrapped exterior. Gears are bronze or brass; all other parts are solid brass to prevent rusting. Finned stainless steel tubes beneath a false bottom provide efficient thermal transfer. Includes a 6' (183cm) cord, feed-through switch and 3-prong plug. Includes 3 standard H-1080 briquette molds with H-1090 plates. Trough overall dimensions: 11.75" x 74" x 6.375"H (30 x 188 x 16cm). H-1068PC Acrylic Cover is recommended to maintain constant tank temperatures.

The Ductility Machine, Temperature-Controlled supports the following standards: ASTM D113ASTM D5892ASTM D6084, AASHTO T51

Accessories

  Part Number & Name Price QTY
Cover for Ductility Machines (Clear, Acrylic) H-1068PC
Cover for Ductility Machines (Clear, Acrylic)
$720.00

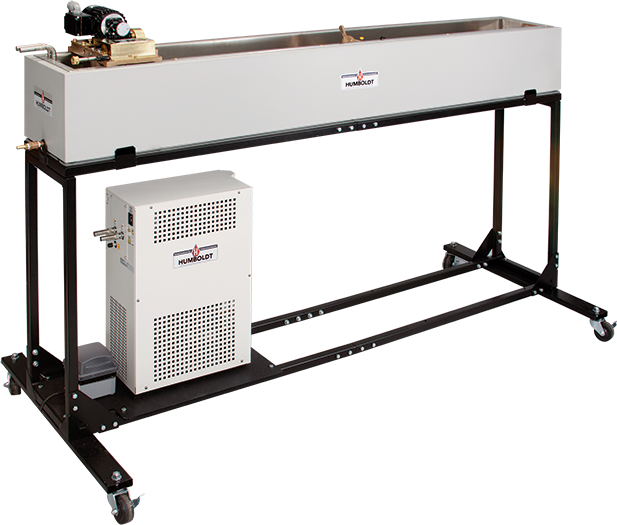

Ductility Machine Stand H-1068.100
Ductility Machine Stand
$1,350.00
Elastic Recovery Mold H-1030
Elastic Recovery Mold
$186.00
Ductility Briquette Mold H-1080
Ductility Briquette Mold
$200.00
Base Plate For Single Ductility Mold H-1090
Base Plate For Single Ductility Mold
$28.00
Base Plate For Three Ductility Molds H-1090.3
Base Plate For Three Ductility Molds
$35.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-1068 man 1111 (Product Manual PDF)

Standards

Standards
ASTM D113
ASTM D5892
ASTM D6084
AASHTO T51
Related Items
  • Humboldt Ductility Machine

    H-1068B.XX

    Humboldt Ductility Machine

    3-speed machine for Standard and Force Ductility tests. Direct drive motor maintains constant speed. 3 briquets

  • Ductility Machine, Basic

    H-1068B.XX

    Ductility Machine, Basic

    Economy model without the thermal wrapper and finned tubes for thermal transfer

  • Circulating Temperature Controller

    H-1068B.XX

    Circulating Temperature Controller

    Provides a solid-state, thermostatically-controlled bath and circulator to maintain water temperature ± 0.9°F (± 0.5°C)

  • Ductility Machine Stand

    H-1068.100

    Ductility Machine Stand

    Places machine at working height and includes a shelf for Circulating Temperature Controller
