Humboldt Ductility Machine

Humboldt Ductility Machine

Product Options

  Part Number & Name Price QTY
Ductility Machine, 120V 60HzH-1068X
Ductility Machine, 120V 60Hz
Ductility Machine, 220V 60HzH-1068X.2F
Ductility Machine, 220V 60Hz
Ductility Machine, 220V 50HzH-1068X.5F
Ductility Machine, 220V 50Hz
Add to Cart

Humboldt Ductility Machine

Supports the following standards: ASTM D113, ASTM D5892, ASTM D6084, AASHTO T51

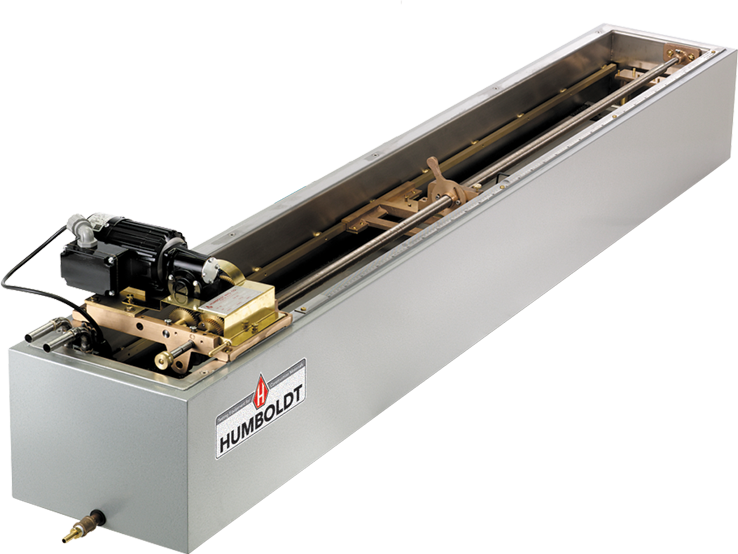

Humboldt ductility machines determine ductility of formed asphalt/cement or semi-solid bitumen by measuring the distance of elongation before reaching the breaking point of a briquette sample, which is pulled apart at a specific speed and temperature. The H-1068X is a three-speed machine designed for standard and force ductility tests. The unit tests three briquettes simultaneously and its DC, direct-drive motor maintains constant speed, entirely vibration-free. Speeds of 1/4, 1 or 5cm per minute are selected via lever shift on mechanical gear box.

A single stainless steel lead screw mounted above water level prevents agitation of water and premature rupture of specimens. A traveling pointer adjusts to zero starting position and indicates exact position of carriage on a linear centimeter scale attached to trough‘s front edge. Maximum carriage travel (elongation) is 150cm with an automatic stop.

The Unit has a stainless steel interior with an overflow connection, and a baked enamel stainless steel-wrapped exterior. Gears are bronze or brass; all other parts are solid brass to prevent rusting. Finned stainless steel tubes beneath a false bottom provide efficient thermal transfer. Includes a 6' (183cm) cord, feed-through switch and 3-prong plug. Includes 3 standard H-1080 briquette molds with H-1090 plates. Trough overall dimensions: 11.75" x 74" x 6.375"H (30 x 188 x 16cm). H-1068PC Acrylic Cover is recommended to maintain constant tank temperatures.


  Part Number & Name Price QTY
Cover for Ductility Machines (Clear, Acrylic) H-1068PC
Cover for Ductility Machines (Clear, Acrylic)
Ductility Machine Stand H-1068.100
Ductility Machine Stand
Circulating Temperature Controller Circulating Temperature ControllerClick for Options
Elastic Recovery Mold H-1030
Elastic Recovery Mold
Ductility Briquette Mold H-1080
Ductility Briquette Mold
Base Plate For Single Ductility Mold H-1090
Base Plate For Single Ductility Mold
Base Plate For Three Ductility Molds H-1090.3
Base Plate For Three Ductility Molds
Add to Cart


ASTM D5892
ASTM D6084
Related Items
  • Ductility Machine, Temperature-Controlled


    Ductility Machine, Temperature-Controlled

    The H-1068 Ductility machine takes our H-1068X machine and adds a circulating temperature control unit.

  • Ductility Machine, Basic


    Ductility Machine, Basic

    Economy model without the thermal wrapper and finned tubes for thermal transfer

  • Circulating Temperature Controller


    Circulating Temperature Controller

    Provides a solid-state, thermostatically-controlled bath and circulator to maintain water temperature ± 0.9°F (± 0.5°C)

  • Ductility Machine Stand


    Ductility Machine Stand

    Places machine at working height and includes a shelf for Circulating Temperature Controller
