Ductilometer, Elite Series–Automated

Ductilometer, Elite Series–Automated

Product Options

  Part Number & Name Price QTY
Ductilometer, Elite Series–AutomatedHA-1068.3F
Ductilometer, Elite Series–Automated
$18,950.00
Add to Cart

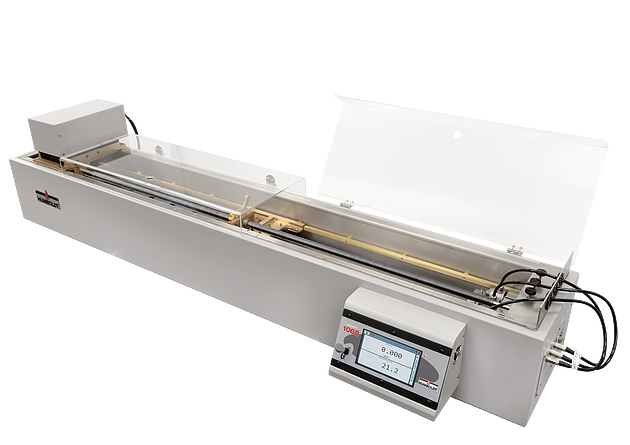

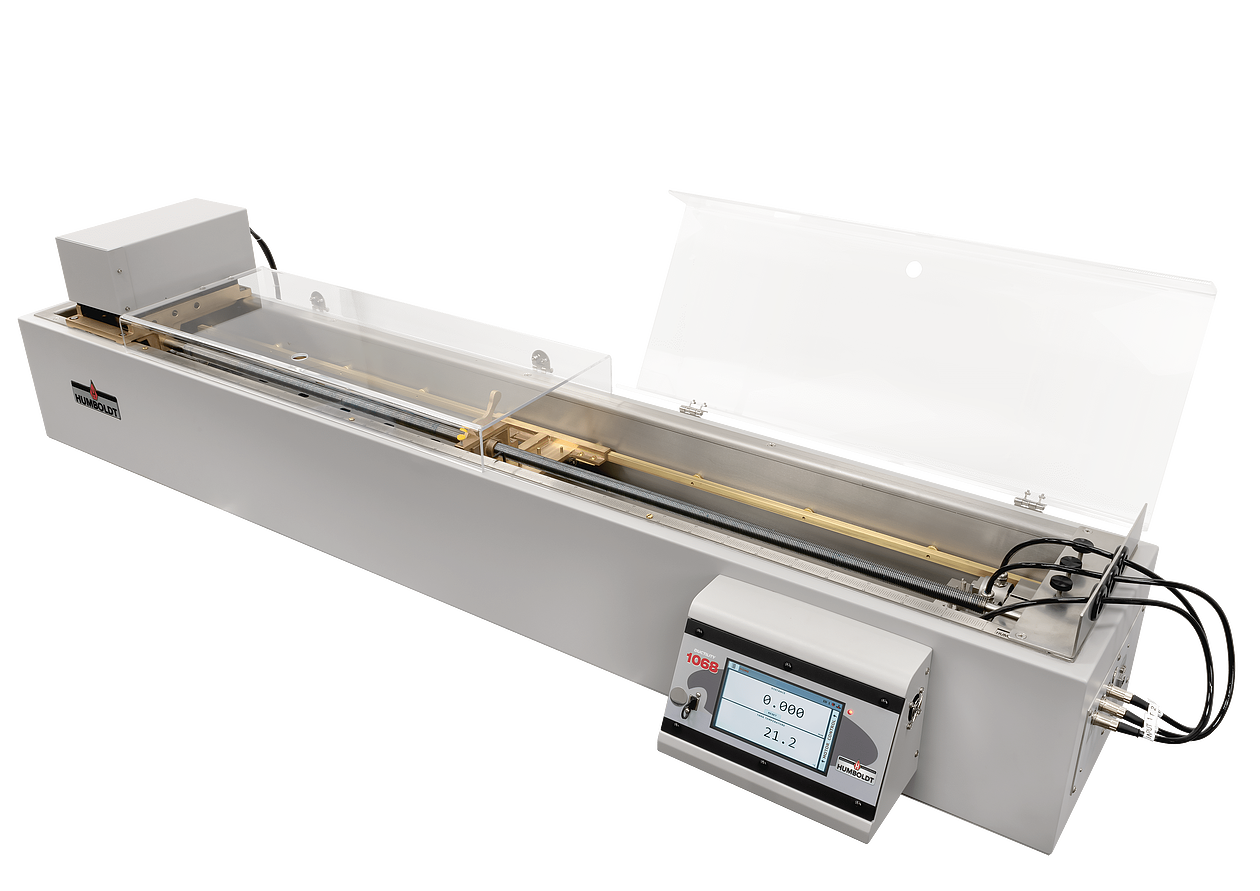

Ductilometer, Elite Series–Automated

The HA-1068 Ductilometer features Humboldt's Elite Series Controller. This touch-screen controller provides you with full, graphical monitoring of all testing functions in a stand-alone application, while also providing the ability to control the machine from a networked computer or just port data from the controller to a networked computer.

The HA-1068 Controller provides precise speed control of the DC, stepper motor maintaining constant speed, entirely vibration-free, from 5 to 100mm/min. The unit provides for three test briquettes per testing sequence with a maximum carriage travel (elongation) of 150cm and an automatic stop feature. The machine also provides a manual disengage lever for quickly disengaging the screw drive to return the testing carriage back to the start position after a test completion. This feature allows multiple tests to be run without having to wait for the machine to reset itself.

The HA-1068 has a stainless steel interior with an overflow connection, and a baked enamel stainless steel-wrapped exterior. Gears are bronze or brass; all other parts are solid brass to prevent rusting. Finned stainless steel tubes beneath a false bottom provide efficient thermal transfer. A single stainless steel lead screw mounted above water level prevents agitation of water and premature rupture of specimens. A traveling pointer adjusts to zero starting position and indicates exact position of carriage on a linear centimeter scale attached to trough‘s front edge.

In stand-alone mode the controller provides you with full, graphical monitoring of all testing functions, while maintaining full computer control when desired. The seven-inch, waterproof screen provides at-a-glance monitoring of testing functions, in a real-time graphical display, without the use of a computer, building upon Humboldt's dedication to modular, stand-alone data acquisition.

You will be able to run tests and display results while viewing tabulation, basic x-y graphs and instrument readings in real-time during the test, using user-defined, basic data acquisition. Test data is stored in the device and can be down-loaded to a USB drive via the machine's FRONT USB port or the data can be transferred to a computer via the LAN port.

A second USB port located on the back of the machine can also be used to power a wireless access point, which can provide a wireless hook-up with a computer, if no LAN is available.

The HA-1068 Ductilometer is sold without a circulating temperature controller. If desired, choose a circulating temperature controller with the correct AC requirements. The temperature-controller provides a solid-state, thermostatically controlled bath and circulator to maintain water temperature within a ±0.9°F (±0.5°C). The temperature range is:
-10°C to 80°C and the heating capacity is 1000W with a 0.1°C stability. Includes a 6' (183cm) cord, feed-through switch and 3-prong plug and 3 standard H-1080 briquette molds with H-1090 plates. Trough overall dimensions: 11.75" x 74" x 6.375"H (30 x 188 x 16cm). Acrylic Cover is included with this machine.

Accessories

  Part Number & Name Price QTY
Ductility Machine Stand H-1068.100
Ductility Machine Stand
$1,350.00
Circulating Temperature Controller Circulating Temperature ControllerClick for Options
Ductility Briquette Mold H-1080
Ductility Briquette Mold
$200.00
Elastic Recovery Mold H-1030
Elastic Recovery Mold
$186.00
Base Plate For Three Ductility Molds H-1090.3
Base Plate For Three Ductility Molds
$35.00
Base Plate For Single Ductility Mold H-1090
Base Plate For Single Ductility Mold
$28.00
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
Ductility Briquette Mold H-1080
Ductility Briquette Mold
$200.00
Elastic Recovery Mold H-1030
Elastic Recovery Mold
$186.00
Base Plate For Three Ductility Molds H-1090.3
Base Plate For Three Ductility Molds
$35.00
Base Plate For Single Ductility Mold H-1090
Base Plate For Single Ductility Mold
$28.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
HA-1068-Ductilometer-DS (Data Sheet PDF)
Product Videos
Play Video

Humboldt Mfg. Co. – Switching Stored Calibrations in NEXT Software

Switching Stored Calibrations for Elite Testing Devices in HMTS NEXT Software

Play Video

Humboldt Mfg. Co. - Changing the Number of Test Specimens in NEXT Software

Updating the Number of Test Specimens for Elite Testing Devices in HMTS NEXT Software

Play Video

Humboldt Mfg. Co. - Importing Test Data into NEXT Software

Importing Test Data for Elite Testing Devices in HMTS NEXT Software

Play Video

Humboldt Mfg. Co. - Restoring Legacy Calibrations into NEXT Software

Manually Restoring Calibration for Legacy Equipment in HMTS NEXT Software

Play Video

Humboldt Mfg. Co. - Removing a Straggler Test From NEXT Software

How to Remove a Straggler Test in HMTS NEXT Software

Play Video

Humboldt Mfg. Co. - Importing Calibration Data into NEXT Software

How to Import Calibrations into HMTS NEXT Software

Related Items
  • Ductility Machine Stand

    H-1068.100

    Ductility Machine Stand

    Places machine at working height and includes a shelf for Circulating Temperature Controller

  • Ductilometer, Elite Series, Refrigerated

    HA-1060.4F

    Ductilometer, Elite Series, Refrigerated

    Fully-refrigerated cabinet and Humboldt's Elite Series Controller are featured items with this Ductiliometer

  • Force Determination Kit for Ductilometers

    HA-1063

    Force Determination Kit for Ductilometers

    Designed for use with manual control ductilometers to upgrade them to allow you to monitor the test and its results

  • Calibration Device, Force Transducers

    HA-1062

    Calibration Device, Force Transducers

    Calibration device for Humboldt Elite Series Ductilometer force determination transducers.
