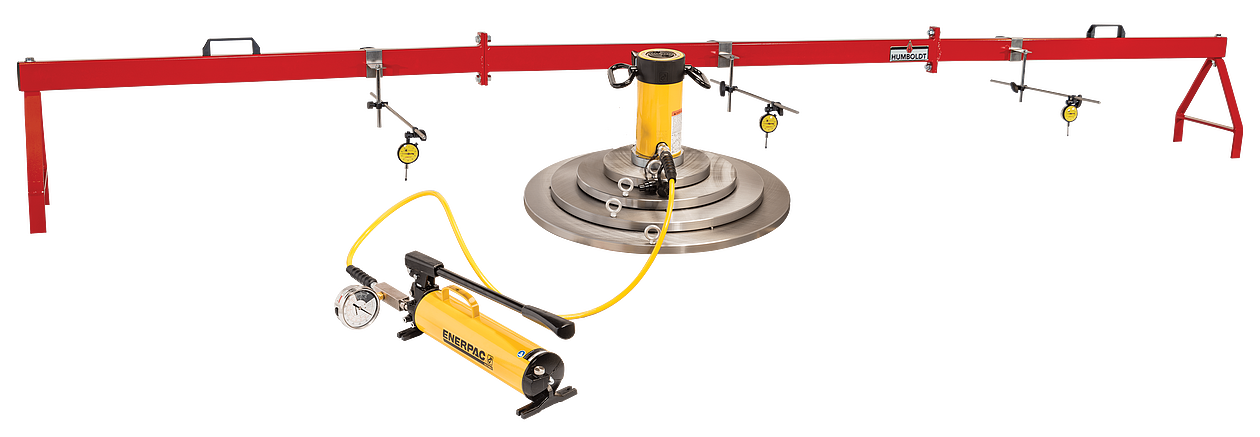

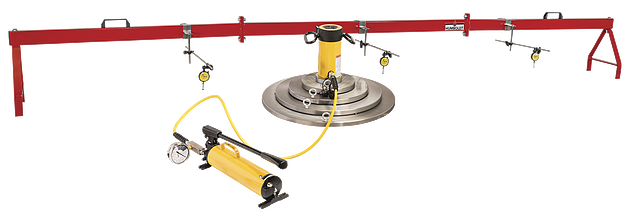

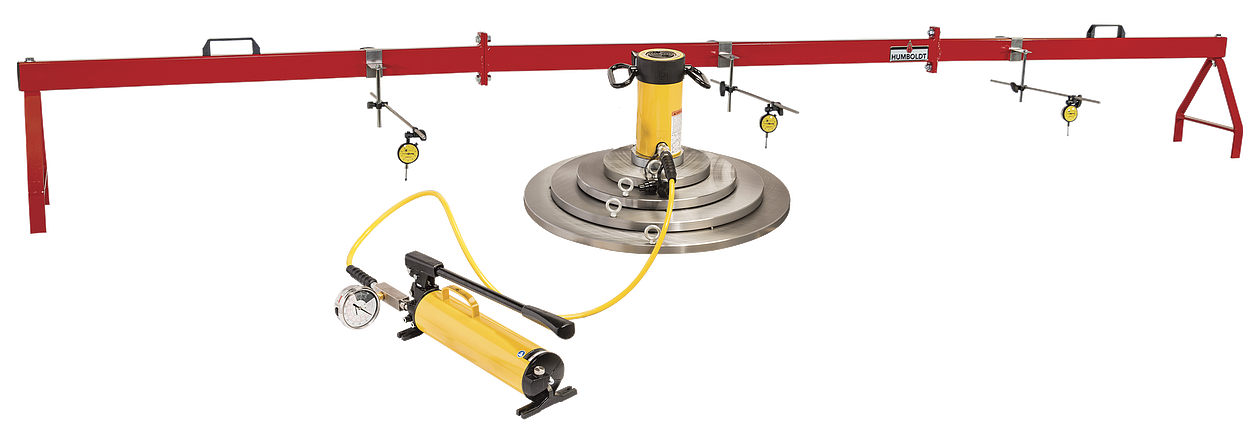

Humboldt Plate Bearing Tester

Humboldt Plate Bearing Tester

Supports the following standards: ASTM D1195, ASTM D1196

The Humboldt Plate Bearing Tester is a field test used for determining the bearing capacity of soil under varying loading conditions. It can also be used to evaluate the designs of airport and highway pavements.

Includes:

Hydraulic jack complete with hand pump and rubber
Fast-connect hose
Large pressure dial gauge
Seat plate
(3) precision dial or digital gauges (1" x 0.0004 (25 x 0.01mm)
18’ (5.5m) deflection beam, complete with mounting hardware for gauges
Plate Set (HD-4605)
Case for gauges, pump, and jack.

The Plate Bearing Tester is available in three (3) capacities: 100kN, 200kN and 500kN. All have a digital gauge option available.

Individual plate sizes available. Call for more info.

Features:

Long piston travel to accommodate the setup of the reaction loading system
Double-delivery hand pump for a fast approach in setup with a reaction loading system
High-precision dial gauges
Heavy-duty, rigid measuring bridge

HD-4600
Plate Bearing Tester – 100kN

$7,800.00

HD-4601
Plate Bearing Tester – 200kN

$8,000.00

HD-4602
Plate Bearing Tester – 500kN

$9,800.00

HD-4600D
Digital Plate Bearing Tester – 100kN

Call
800.544.7220

HD-4601D
Digital Plate Bearing Tester – 200kN

$9,200.00

HD-4602D
Digital Plate Bearing Tester – 500kN

$11,000.00

Add to Saved Cart

Accessories

HD-4605
Plate Bearing Plate Set

$3,770.00

HD-4604
Ball Joint Adaptor for Corp of Engineers Test CRD-C655

Call
800.544.7220

Add to Saved Cart

Standards

ASTM D1195

ASTM D1196
