Concrete Vibrator
Product Options
Concrete Vibrator
Supports the following standards: ASTM C138, ASTM C192, ASTM C31, ASTM C878, AASHTO T23, AASHTO T97

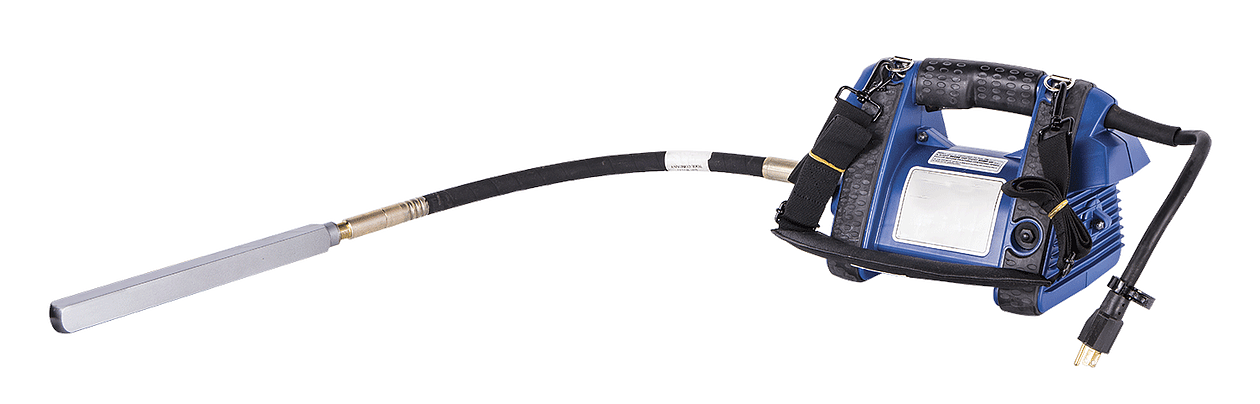

Lightweight square-head model is used for vibrating concrete test cylinders and molds in the laboratory or field. Unit is flexible-shaft type, powered with 3/4 HP electric motor. Shaft is 24" (610mm) long; vibrating head is 1" sq x 13" L (25 x 330mm) with a speed of 10,000 vpm. 115V model is 7 amps 1ph and 230V model is 3.6 amps 1ph.
Related Items
-
H-3755
Vibrating Table
Cushioned impact vibrating table with load capacity of 300 lbs. (136.1kg) Meets ASTM C31, C192
-
H-3753
Vibration Indicator, Tachometer Type
Precision tachometer is pen size to allow accurate readings even on hard-to-reach equipment.
-
H-3754A
Vibration Indicator, Visual Type
Visual indicator gives accurate reading of amplitude of vibration
-
H-2952
Concrete Cylinder Capper, Vertical, 6" x 12" Cylinders
Simplifies capping process by assuring plane end surfaces are right angles to the axis of the cylinder
