Masonry Saw, 8" Cut

Masonry Saw, 8" Cut

Product Options

  Part Number & Name Price QTY
Masonry Saw, 8" CutHC-2931.2F
Masonry Saw, 8" Cut
$4,342.00
Add to Cart

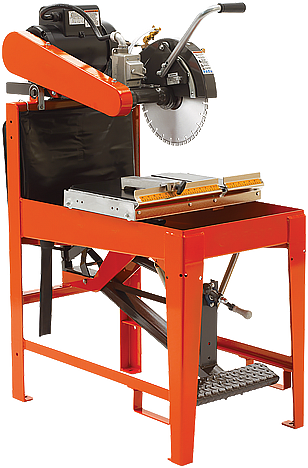

Masonry Saw, 8" Cut

Saw for use in cutting cylinders and blocks. Blade capacity is 20" (508mm), which allows a cutting depth of 8" (203mm). Unit features a 5hp, 230 60hz 1ph Baldor motor. The saw has only two pivot points for reduced saw maintenance and longer diamond blade life. The cutting head pivots on bearings, which are sealed and lubricated for life requiring no greasing. Its ergonomically designed steel handle with molded grip bolts securely into place and the Sta-levelĀ® blade guard keeps the blade guard parallel to the cutting table for accurate cuts. Height can be controlled with a convenient crank control on foot pedal.

  • High torque, continuous duty dual capacitor motors make efficient use of horsepower and reduce cutting time.
  • Capable of cutting 8" x 8" x 16" block with a 20" blade in one pass or 10" block with a 24" blade in one pass.(For 24" blade, please enquire)
  • Height can be controlled with a convenient crank control or foot pedal.
  • The Sta-levelĀ® blade guard keeps the blade guard parallel to the cutting table for accurate cuts.

Blade not included, order separately

Specifications
Blade Dia.:20" (508mm)
Cut Depth:8" (203mm)
Motor:5hp (3.7)
Power Supply:230V, 1ph
Dimensions:47.75" x 22" x 57.5" 1213 x 559 x 1461kg)
Ship weight:361 lbs (162kg)

Accessories

  Part Number & Name Price QTY
20" (508mm) Masonry Saw Blades 20" (508mm) Masonry Saw BladesClick for Options
Add to Cart
