Plastic Limit Roller

Plastic Limit Roller

Product Options

  Part Number & Name Price QTY
Plastic Limit RollerH-4262
Plastic Limit Roller
$196.00
Add to Cart

Plastic Limit Roller

Supports the following standards: ASTM D4318, AASHTO T90, TX DOT 105-E

Humboldt's Plastic Limit Roller provides an easily repeatable mechanical technique that provides consistent results in accordance to ASTM D4318 and AASHTO T 90 specifications for testing plastic limits of cohesive soils.

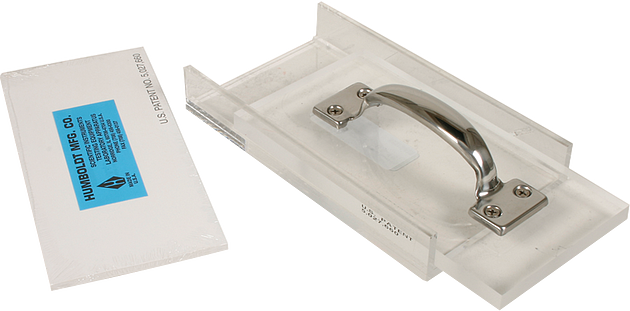

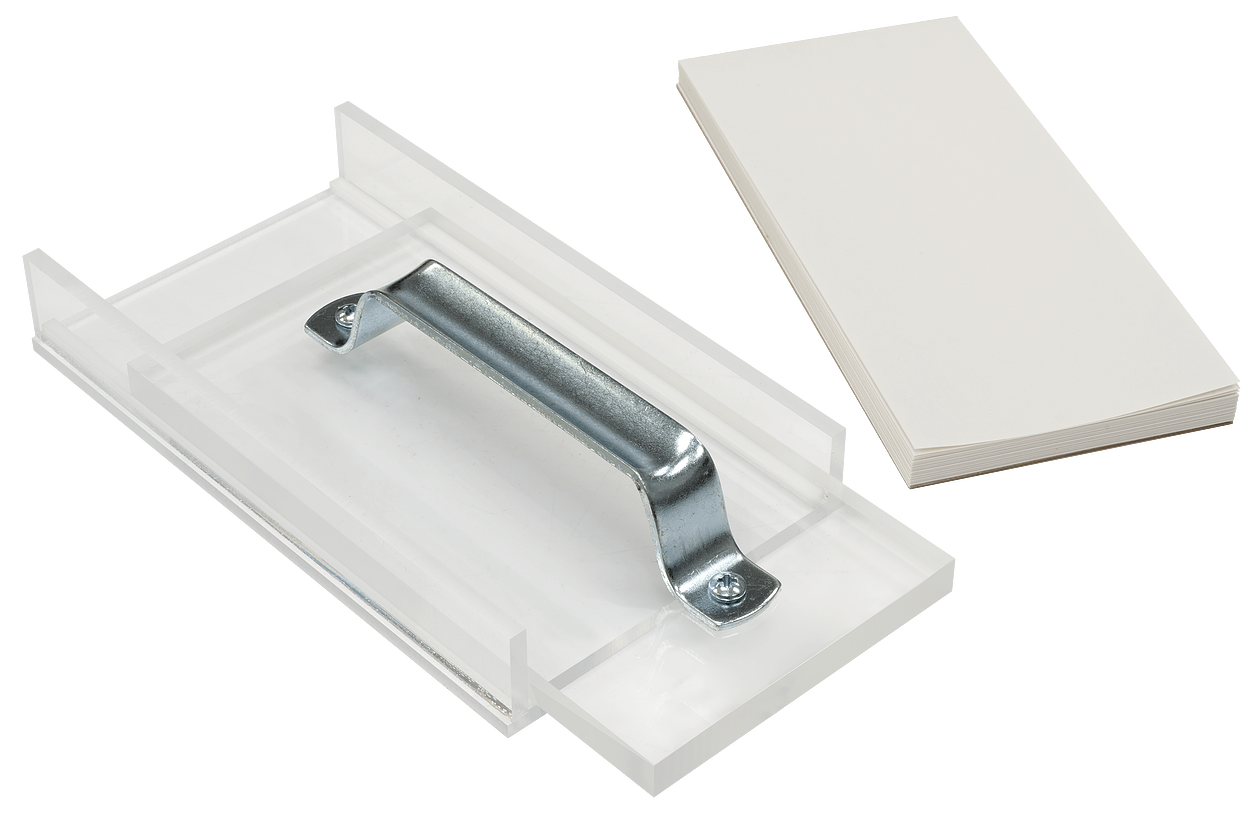

The Plastic Limit Roller consists of a rigid acrylic bottom plate with 0.125" (3.2mm) side rails and a top plate of the same material with an integral handle that assists with operation. In operation, soil samples are placed on a sheet of adhesive-backed absorbent paper, which is placed onto the bottom plate of the roller. This paper adds no fiber to the soil samples. Soil samples are then rolled between the top and bottom plates until it comes in contact with the bottom plate's side rails, which prevent further operation.

Includes integral top plate/handle, one pad of 50 sheets of special adhesive backed paper to cover contact surfaces (paper will not introduce fibers into soil samples), and instructions. Rigid acrylic 8 x 4.5 x1.25" (203 x 114 x 32mm).

Accessories

  Part Number & Name Price QTY
Adhesive Paper H-4262P
Adhesive Paper
$6.50
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
Atterberg-Limits-data (Data Sheet PDF)
H-4262 man 0409 (Product Manual PDF)

Standards

Standards
ASTM D4318
AASHTO T90
TX DOT 105-E
Related Items
  • Plastic Limit Set

    H-4253

    Plastic Limit Set

    Perform plastic limit tests in accordance with specifications.

  • Shrinkage Limit Set

    H-4254

    Shrinkage Limit Set

    Apparatus recommended to perform shrinkage limit test in accordance with specifications.

  • Adhesive Paper

    H-4262P

    Adhesive Paper

    Pad of 50 sheets of special adhesive backed paper for Plastic Limit.

  • Plastic Limit Plate

    H-4253.1

    Plastic Limit Plate

    Glass plate with ground finish on one side and seamed edges.
