Proceq Ultraportable GP8800
Proceq Ultraportable GP8800
Supports the following standards: ASTM D4748, ASTM D6087, ASTM D6432, AASHTO R37-04, ACI 228.2R.98, EN 302066- ETSI
Proceq‘s Ultaportable Ground Penetrating Radae, GP8800 is yet another revolution by Proceq in concrete inspection and imaging. The rugged, lightweight Swiss Made probe packs our unique radar technology in a tiny footprint with gigantic clarity and depth. This makes it possible to locate rebar and tendon ducts by inspecting overhead, in tight spots, close to walls, from the edge of the slab—and in congested spaces, such as underneath pipes.

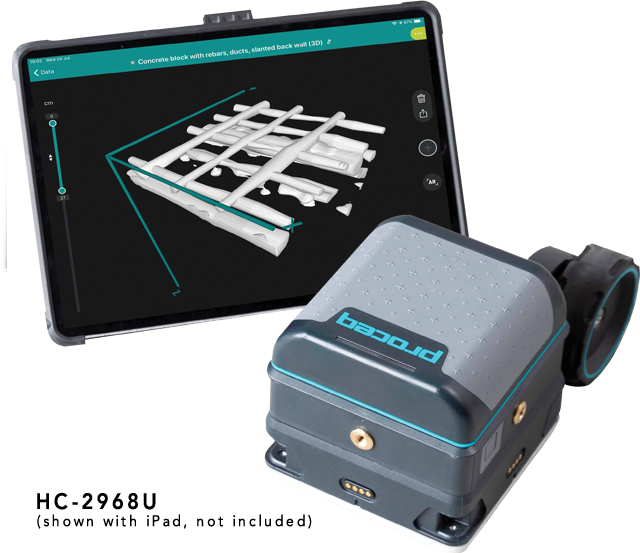

Connect the powerful probe to your iPad and enjoy the rich features of the famously user-friendly Proceq GPR Live app. Inspect with ease in four different configurations by reorienting the wireless wheel on the fly, even during the measurement, without screws or tools. Enjoy powerful post-processing, visualization, sharing, collaboration and reporting anywhere, anytime—in 3D and Augmented Reality.
Proceq GP8800 is the only ground penetrating radar in the market that offers complete, wireless autonomy and flexibility in an mini, ultraportable, lightweight probe that connects to iPad over encrypted Wi-Fi.
There is no need to connect Proceq GP8800 to any master GPR device with long, thick, and fragile cables that adversely impact data quality. Say goodbye to tripping hazards, and welcome convenient scanning, even overhead.
As for flexibility: the wireless wheel snaps effortlessly on any side of the probe in both trailing and side-car configurations, and can be rotated at will for cross-polarization, even while you scan—without fumbling with screws or tools.
Proceq GP8800 is powered by a battery pack with rechargeable AA batteries, enabling smooth air travel and easy battery replenishments worldwide.
Need unlimited autonomy, better access to tight spaces, or both? Simply tether the battery pack or an off-the-shelf power bank by USB-C and scan under pipes with as little as 63 mm (2.5 in) distance to concrete—for hours and hours.
Proceq GP8800 features the unique implementation of Stepped-Frequency Continuous-Wave (SFCW) radar technology by Proceq, delivering the most ultra-wide bandwidth ever in a handheld GPR device.
As proven by the explosive global adoption of Proceq GPR Live by expert GPR users since 2017, SFCW GPR technology by Proceq delivers far superior signal-to-noise ratio compared to traditional high-frequency pulsed GPR devices for concrete scanning.
Now available in the ultraportable form factor of Proceq GP8800, SFCW GPR will continue to impress you with superior inspection insights thanks to crystal-clear radar data, without the traditional dilemma between multiple pulsed-GPR antennas, center frequencies, and their hard compromises between resolution and penetration depth.
*Pro software requires a 2-year subscription with the first year being purchased with your HC-2968A unit and the second and subsequent years being purchased directly from Proceq. These are one-year, use licenses.
|Radar Technology:||Stepped-frequency continuous-wave GPR|
|Frequency Range:||400 – 6000 MHz|
|Depth Penetration:||65 cm / 25.6 in|
|Dimensions:||90 x 90 x 60 mm / 3.5 x 3.5 x 2.4 in|
|Weight:||460 g / 16.2 oz|
|Max. line scan length:||1000 m / 3281 ft|
|Max. area scan size:||120 x 120 cm / 47.2 x 47.2 in|
|Antenna Distance to edge:||45 mm / 1.77 in|
|Path Measurement:||Wireless wheel, ±2% accuracy|
|Cross-Polarization:||Yes, adjustable at any time|
|Ground Clearance:||0 mm / 0 in|
|Built-in Battery:||Removable pack, 4x AA (NiMH), flight-safe|
|Off-the-shelf power bank:||<5V DC, at least 2A|
|Autonomy:||2.5 h (up to 8 hours with off-the-shelf10'000 mAh power bank)|
|Connectivity:||Wi-Fi® and USB-C to iPad|
|Operating Temperature:||-10 to 50 °C / 14 to 122 °F|
|Operating Humidity:||<95% RH, non-condensing|
|IP Rating:||<95% RH, non-condensing|
|Exporting Formats:||JPG, PNG, CSV, SEG-Y, HTML|
|EN 302066- ETSI|
