Pundit Lab, Ultrasonic Test Device

Pundit Lab, Ultrasonic Test Device

Product Options

  Part Number & Name Price QTY
Pundit Lab, Ultrasonic Test DeviceH-2984
Pundit Lab, Ultrasonic Test Device
$4,110.00
Pundit Lab+ Ultrasonic Test DeviceH-2983
Pundit Lab+ Ultrasonic Test Device
$4,660.00
Add to Cart

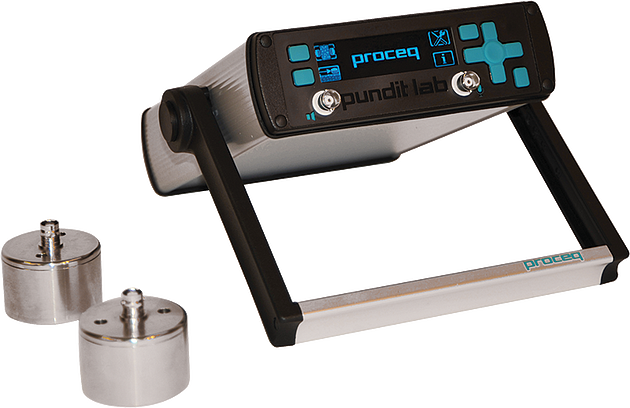

Pundit Lab, Ultrasonic Test Device

The Pundit Lab ultrasonic tester can be used to detect the presence of cracks, voids and other imperfections in concrete, as well as determine and monitor the strength and deterioration of concrete, which may have occurred due to age, fire, frost or chemical attack. The Pundit Lab devices provide optimized pulse shaping, automated transmission settings and a range of powerful transducers. They allow analysis of the received signal and manual triggering directly on the instrument. Full remote control of all transmission parameters, data logging function and functionality that can turn your PC into an oscilloscope. USB interface and data analysis software provide data analysis and export to third party programs through Open interface such as LabVIEW. Pundit Lab consists of: display unit, 2 transducers (54kHz), 2 BNC cables 1.5 m, couplant, calibration rod, battery charger with USB-cable, 4x AA (LR6) batteries, data carrier with software, documentation and carrying case.

The Pundit Lab+ comes with an extended feature set, making it particularly suitable for on-site measurements. Functions include, an integrated gain stage making an external amplifier unnecessary when using long cables or exponential transducers, a real time stamp for recording the time of measurement, a data review list that allows previous measurements to be viewed on site, and a correlation to compressive strength either directly from pulse velocity or in combination with a rebound value (SONREB method). Pundit Lab+ consists of: display unit, 2 transducers (54kHz), 2 BNC cables 1.5 m, couplant, calibration rod, battery charger with USB-cable, 4x AA(LR6) batteries, data carrier with software, documentation and carrying case

Accessories

  Part Number & Name Price QTY
Pundit Lab, 24 kHz Transducer H-2984.1
Pundit Lab, 24 kHz Transducer
$483.00
Pundit Lab, 54 kHz Transducer H-2984.2
Pundit Lab, 54 kHz Transducer
$483.00
Pundit Lab 150 kHz Transducer (Two required for operation) H-2984.3
Pundit Lab 150 kHz Transducer (Two required for operation)
$483.00
Pundit Lab 250 kHz Transducer (Two required for operation) H-2984.4
Pundit Lab 250 kHz Transducer (Two required for operation)
$483.00
Pundit Lab 500 kHz Transducer  (Two required for operation) H-2984.5
Pundit Lab 500 kHz Transducer (Two required for operation)
$1,162.50
Pundit Lab, (2) 54 kHz Exponential Transducers (include calibration rod) H-2984.6
Pundit Lab, (2) 54 kHz Exponential Transducers (include calibration rod)
$1,575.00
Pundit Lab (2) 250 kHz, Shear Wave Transducers (include couplant) H-2984.7
Pundit Lab (2) 250 kHz, Shear Wave Transducers (include couplant)
Discontinued!
Add to Cart
