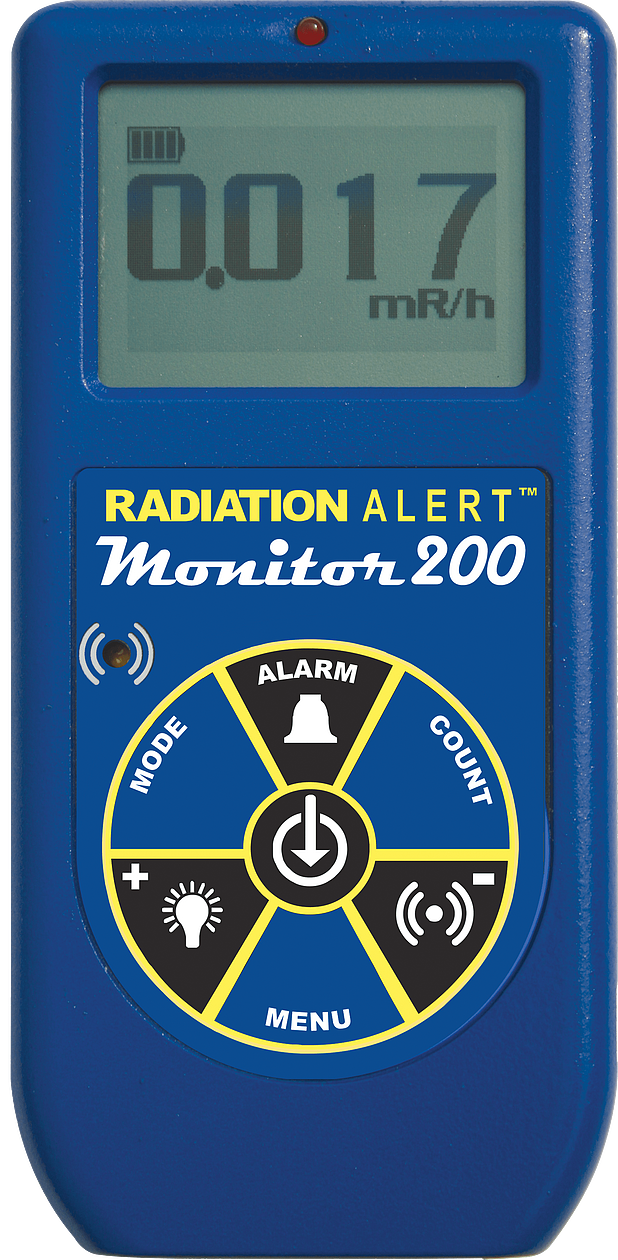

Radiation Survey Meter, Digital
Specifications
| Operating Range: | mR/hr - .001 (1µR) to 100 mR/hr; µSv/hr - .01 to 1000; CPM - 0 to 350,000; CPS - 0 to 5000; Total/Timer - 1 to 9,999,000 cts. |
|---|---|
| Gamma Sensitivity: | 1000 CPM/mR/hr referenced to Cs-137 |
| Accuracy: | ±10% typical (NIST), ±15% maximum |
| Energy Sensitivity: | Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%. Detects beta at 50 keV with typical 35% detection efficiency. Detects beta at 150 keV with typical 75% detection efficiency. Detects gamma and x-rays down to 10 keV typical through the window, 40 keV minimum through the case. Normal background is 5-20 CPM. |
Literature
Manuals, Data Sheets & Safety Data Sheets
HS-130508 DS (Data Sheet PDF)
