Triaxial Installation Kit

Product Options

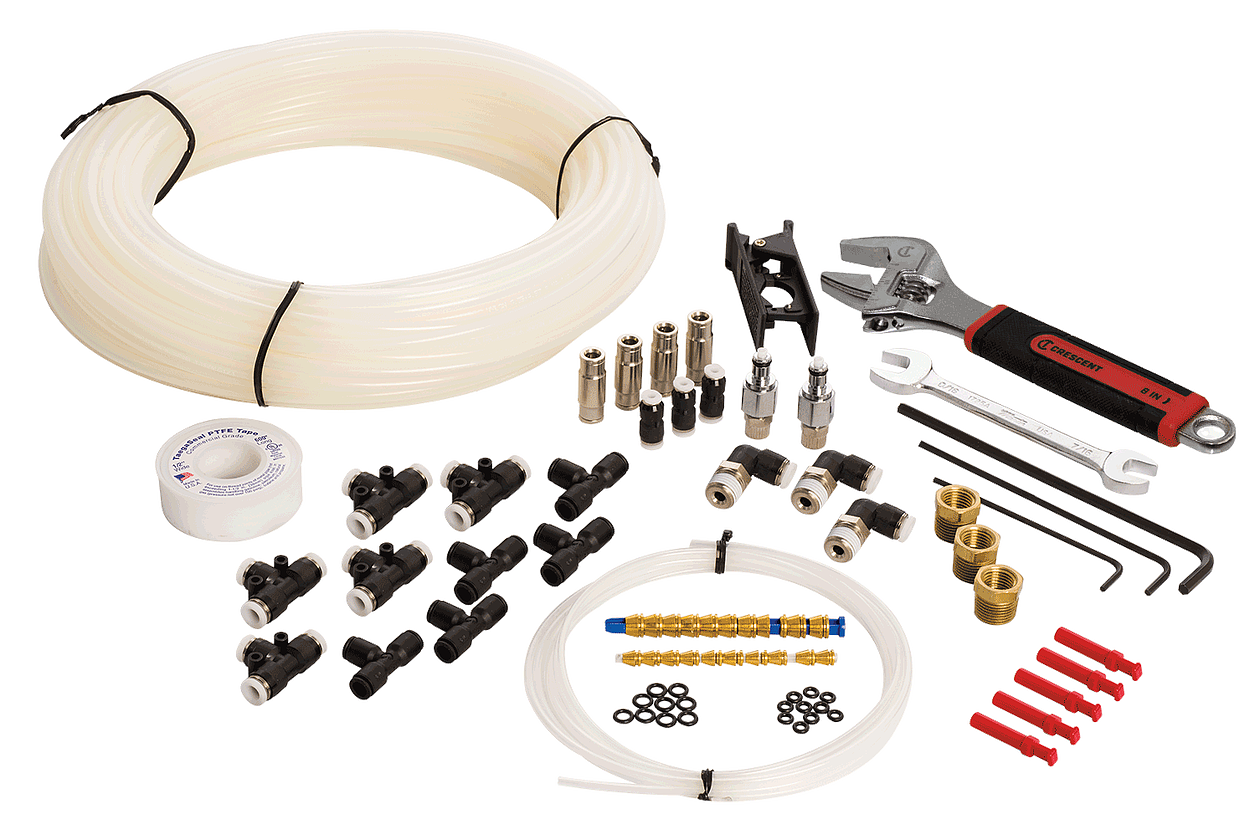

Triaxial Installation Kit
Supports the following standards: ASTM D4767, ASTM D7181
Kit designed to provide fittings, connectors, tubing and tools to complete a triaxial set up installation. All items can be purchased individually as well.
Triaxial Kit Components
• .125" Brass Ferrules (10) - HM-4197.12
• .25" Brass Ferrules (10) - HM-4197.25
• .125" OD Tubing, 10ft. - HM-4196.12
• .25" OD Tubing, 100ft. - HM-4196.25
• .375" to .25" Reducer Bushing (3) - HM-4150.77
• Cutter, Flexible Tubing (1) - HM-000058
• Thread Tape, PTFE (1) - HM-000059
• Hex wrench, 3/16" (1) - HM-000060
• Hex wrench, 7/64" (1) - HM-000061
• Hex wrench, 2.5mm (1) - HM-000062
• Wrench, 7/16 & 9/16" (1) - HM-000063
• Wrench, Adjustable, 6" (1) - HM-000064
• Union T Fitting, .25" (5) - HM-4150.45
• Quick Valve Coupling, .25" (2) - HM-4150.72
• Regulator Elbow, .25" (3) - HM-4150.44
• .25" to .125" Reducer Coupling (3) - HM-4150.78
• Tube Fitting T, 6mm OD (5) - HM-003175
• Push-to-Connect Tube Fitting Coupler, .25" OD (4) - HM-003176
• Plug, .25" Nylon (5) - HM-003193
• O-ring (Upper Cap), .125" (10) - HM-4150.006
• O-ring for Quick-Connect (10) - HM-4196.CXO
