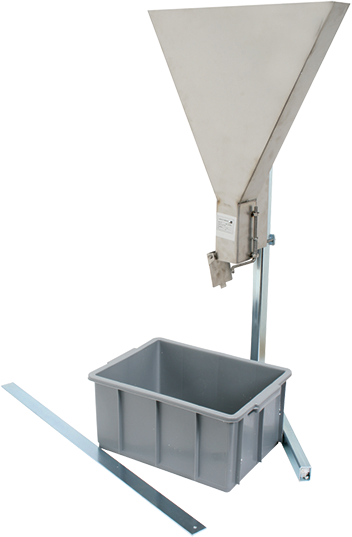

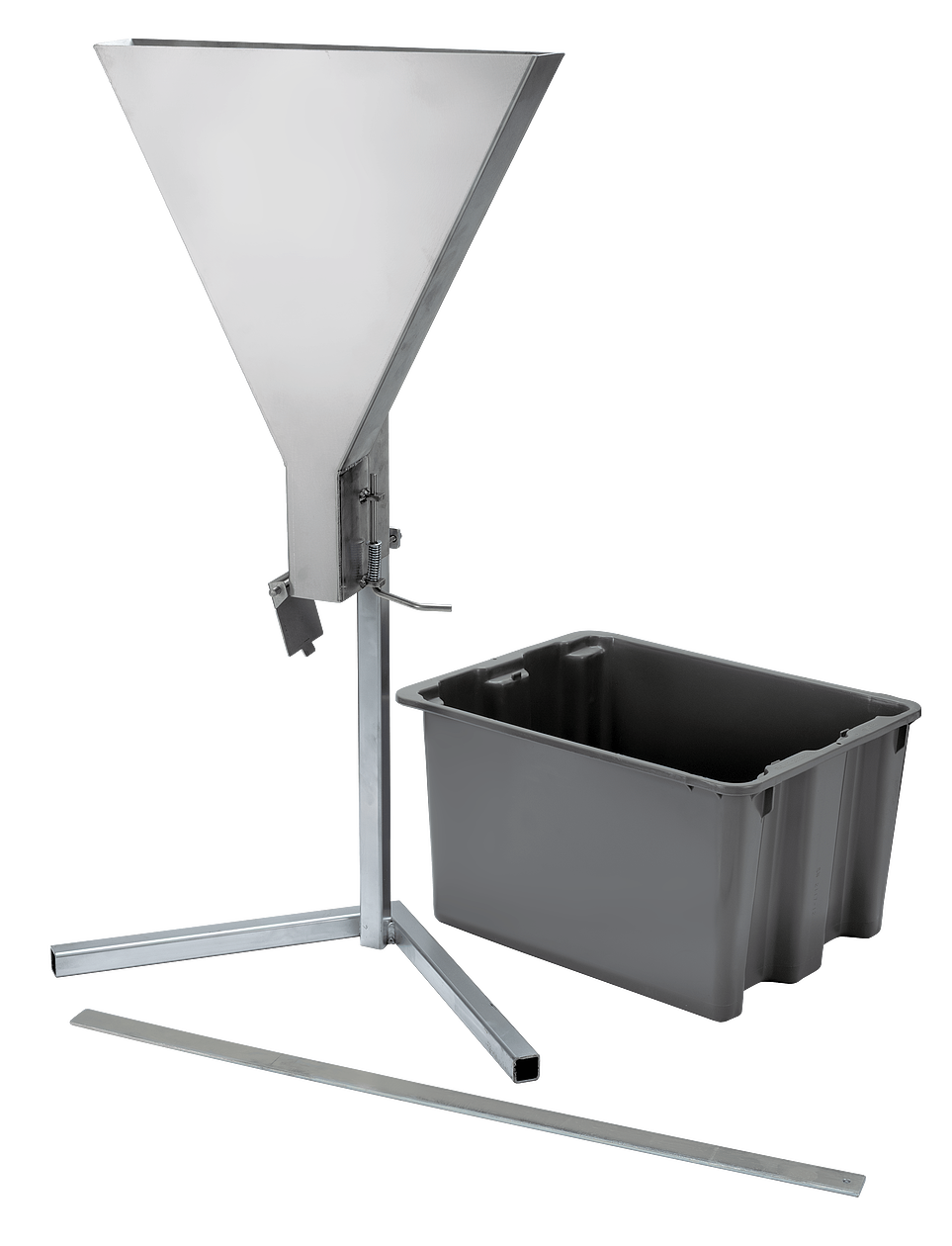

V-Funnel Flowability Test

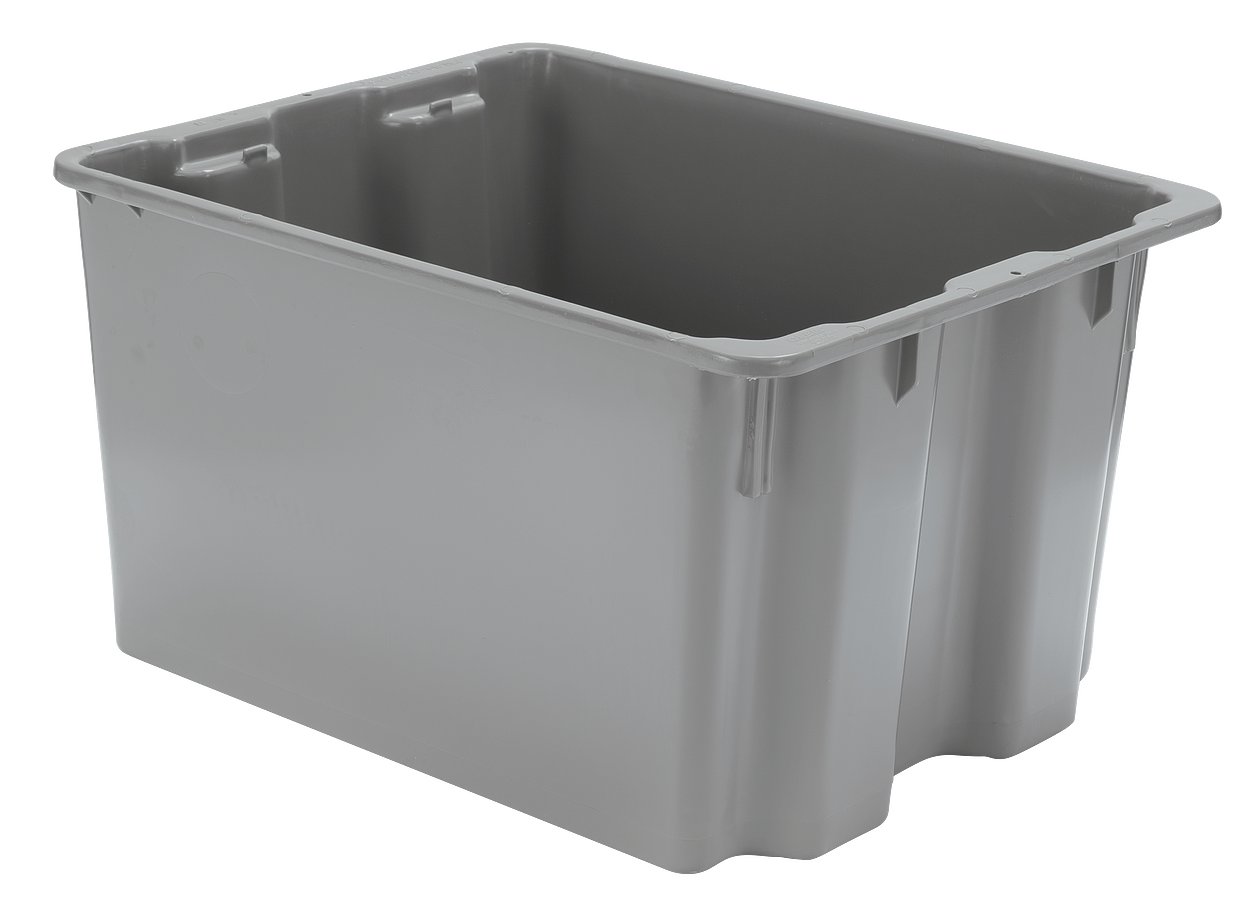

Designed to evaluate the segregation resistance of self-consolidating concrete through the flowing speed from a funnel. Applicable to concrete with aggregates of 1" (25mm) maximum size. Stainless steel construction with 10L capacity. Upper edge is smooth and reinforced and the outflow orifice is equipped with a sealable valve. Includes polyethylene box to collect discharge and a 36" (914mm) long straight edge to level concrete prior to testing.

The V-Funnel Flowability Test supports the following standards: EN 12350

Standards

Standards
EN 12350
