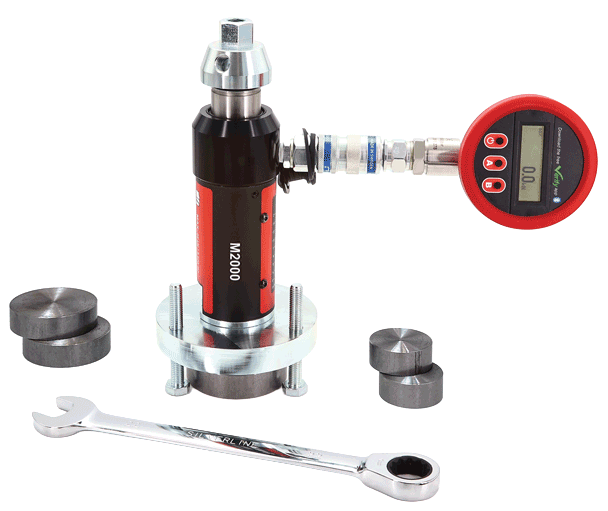

Bond Test Kit with 25kN Gauge

Bond Test Kit with 25kN Gauge

Product Options

  Part Number & Name Price QTY
Bond Test Kit with 25kN GaugeHC-2988A
Bond Test Kit with 25kN Gauge
$3,395.00
Add to Cart

Bond Test Kit with 25kN Gauge

The bonding strengths of a wide and varied range of materials including concrete, screeds, repair mortars, epoxy resin coatings, laminates, plastics, paints and enamels may be accurately determined using this Bond Tester. Adequate direct tensile strength or bonding strength between two layers is important if repairs to concrete structures or additional overlays and screeding on existing concrete is to be structurally sound. The pull-off test as a means of projecting the compressive strength of concrete and other materials involves bonding a circular steel disk to the surface by means of an epoxy resin adhesive. A controlled tensile force is then applied to the disk, and as the strength of the bond is greater than that of the material under stress it will eventually fail in tension. From the area of the disk and the force applied at failure it is possible to calculate a nominal tensile strength for the material.

The standard kit provides:
1. Model 2000 Medium Duty Tester featuring 50mm of Stroke
2. 25kN Gauge
3. 10 x 50mm Steel Bond Discs
4. 10 x 75mm Steel Bond Discs
5. Bond Test Stool
6. Bond Plug
7. 22mm Operating Nut
8. 22mm Operating Spanner
9. 6mm Long series Allen Key
10. Hex wrench
11. Carry Case with Filler
12. Operating Instructions
13. Calibration Certificate

Choice of Six analog gauges are available as accessories: 0-5kN, 0-10kN, 0-15kN, 0-20kN, 0-25kN (and 0-30kN)

The Bond Test Kit with 25kN Gauge supports the following standards: ASTM D4541, ASTM D7234

Accessories

  Part Number & Name Price QTY
50mm Hexagon Extension Legs for Bond Testers HC-2988.1
50mm Hexagon Extension Legs for Bond Testers
Call
75mm Hexagon Extension Legs For Bond Testers HC-2988.2
75mm Hexagon Extension Legs For Bond Testers
Call
100mm Hexagon Extension Legs for Bond and Anchor Testers HC-2988.3
100mm Hexagon Extension Legs for Bond and Anchor Testers
Call
5kN Gauge for Bond and Anchor Testers HC-2988.4
5kN Gauge for Bond and Anchor Testers
$220.00
10kN Gauge for Bond and Anchor Testers HC-2988.5
10kN Gauge for Bond and Anchor Testers
Call
20kN Gauge for Bond and Anchor Testers HC-2988.6
20kN Gauge for Bond and Anchor Testers
Call
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
Pull-Off-Testers (Data Sheet PDF)

Standards

Standards
ASTM D4541
ASTM D7234
