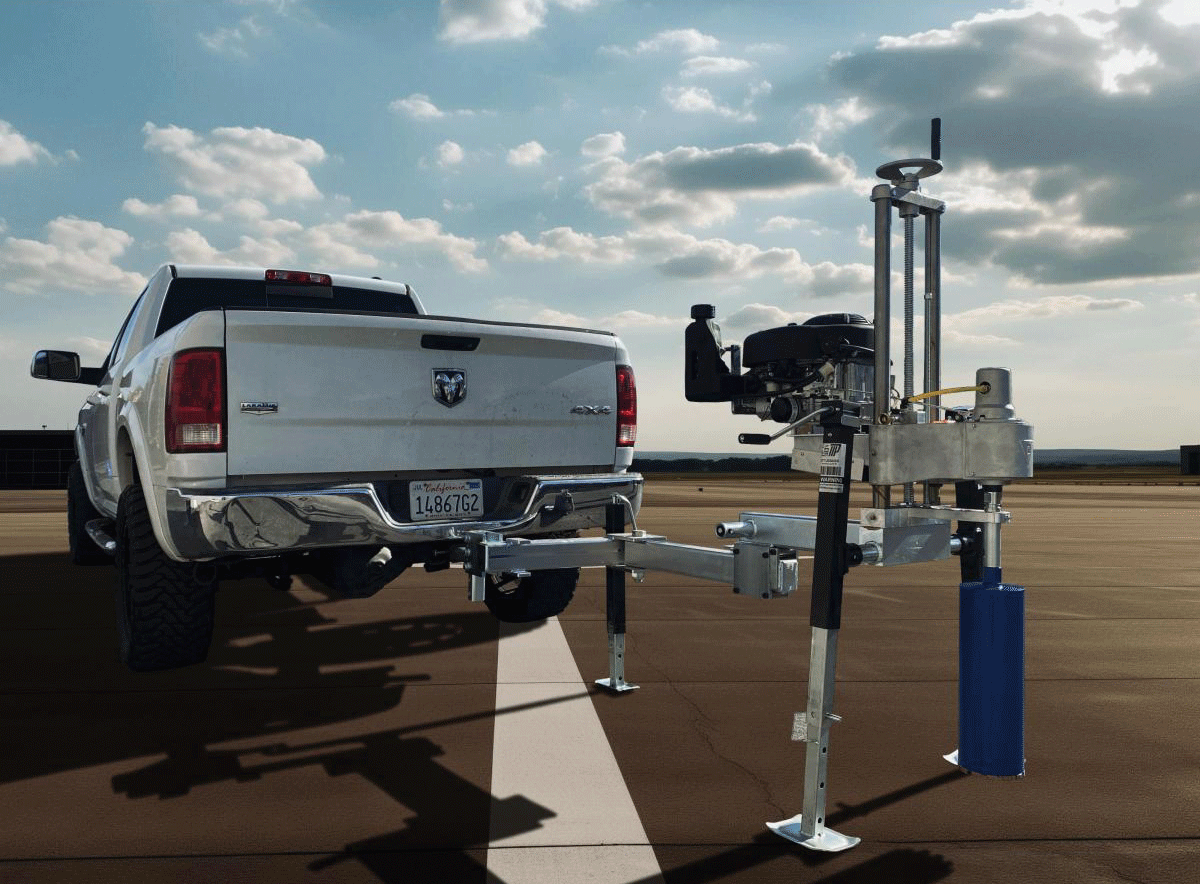

Core Drill, Hitch-Mounted

Core Drill, Hitch-Mounted

Product Options

  Part Number & Name Price QTY
Core Drill, Hitch-Mount 16" CapacityHR-2700
Core Drill, Hitch-Mount 16" Capacity
$11,435.08
Core Drill, Hitch-Mount, Auger CapabilityHR-2701
Core Drill, Hitch-Mount, Auger Capability
$13,383.08
Add to Cart

Core Drill, Hitch-Mounted

This hitch-mounted system provides a mobile system, which provides fast set-up and drilling while ensuring consistent quality. Setup minimizes time required to do jobs reducing job costs.

Features include:

  • 15 HP gas-powered, electric-start drill head with electric start, with 16" bit capacity
  • Accurate drilling with easy positioning and alignment of drill head
  • Positioning arm swings 180° in semi-circle
  • Multi-jointed arm allows drilling anyway within the arc of trailer-hitch mount
  • Stand-alone, gasoline-powered system – no additional power supplies needed
  • Easy, one-person mounting or removal using machine's own drill caddy

Standard package includes:

  • Drill Head with up to 16" bit capacity
  • Flexible position receiver mount bracket
  • Drill caddy
  • Variable RPM (300-1500 bit RPM)
  • Water swivel
  • Drive shaft stabilizer system

Accessories

  Part Number & Name Price QTY
HR-2510
Core Drill Accessories, Extension Rod, 9" (229mm)
$126.00
Core Drill Accessories, Strap Wrench, 18" (457mm) HR-2514
Core Drill Accessories, Strap Wrench, 18" (457mm)
$132.00
Core Drill Accessories, Portable Water Pressure Tank HR-2516
Core Drill Accessories, Portable Water Pressure Tank
$156.00
HR-2511
Core Drill Accessories, Water Trapping Assembly
$290.00
Core Drill Accessories, Diamond Bit Edge Dresser HR-2512
Core Drill Accessories, Diamond Bit Edge Dresser
$80.00
HR-2513
Core Drill Accessories, Replacement wheel for diamond bit edge dresser
$48.00
Add to Cart
Related Items
  • Diamond Drill Bits for Concrete

    HR-2700.XX

    Diamond Drill Bits for Concrete

    Professional quality diamond drill bits, designed for use-specific applications with concrete.

  • Diamond Drill Bits for Asphalt

    HR-2700.XX

    Diamond Drill Bits for Asphalt

    Professional quality diamond drill bits, designed for use-specific applications with asphalt.

  • High-Low Detector (Rolling Straight Edge)

    HR-2700.XX

    High-Low Detector (Rolling Straight Edge)

    Measures planeness of pavement surfaces, such as highways, airport runways, bridge decks.

  • Electrical Density Gauge

    H-4114SD.3F

    Electrical Density Gauge

    Nuclear-free % compaction from a time-saving gauge
