Concrete Crack Gauge for Corners

Concrete Crack Gauge for Corners

Product Options

  Part Number & Name Price QTY
Concrete Crack Gauge for CornersHC-2938
Concrete Crack Gauge for Corners
$65.00
Add to Cart

Concrete Crack Gauge for Corners

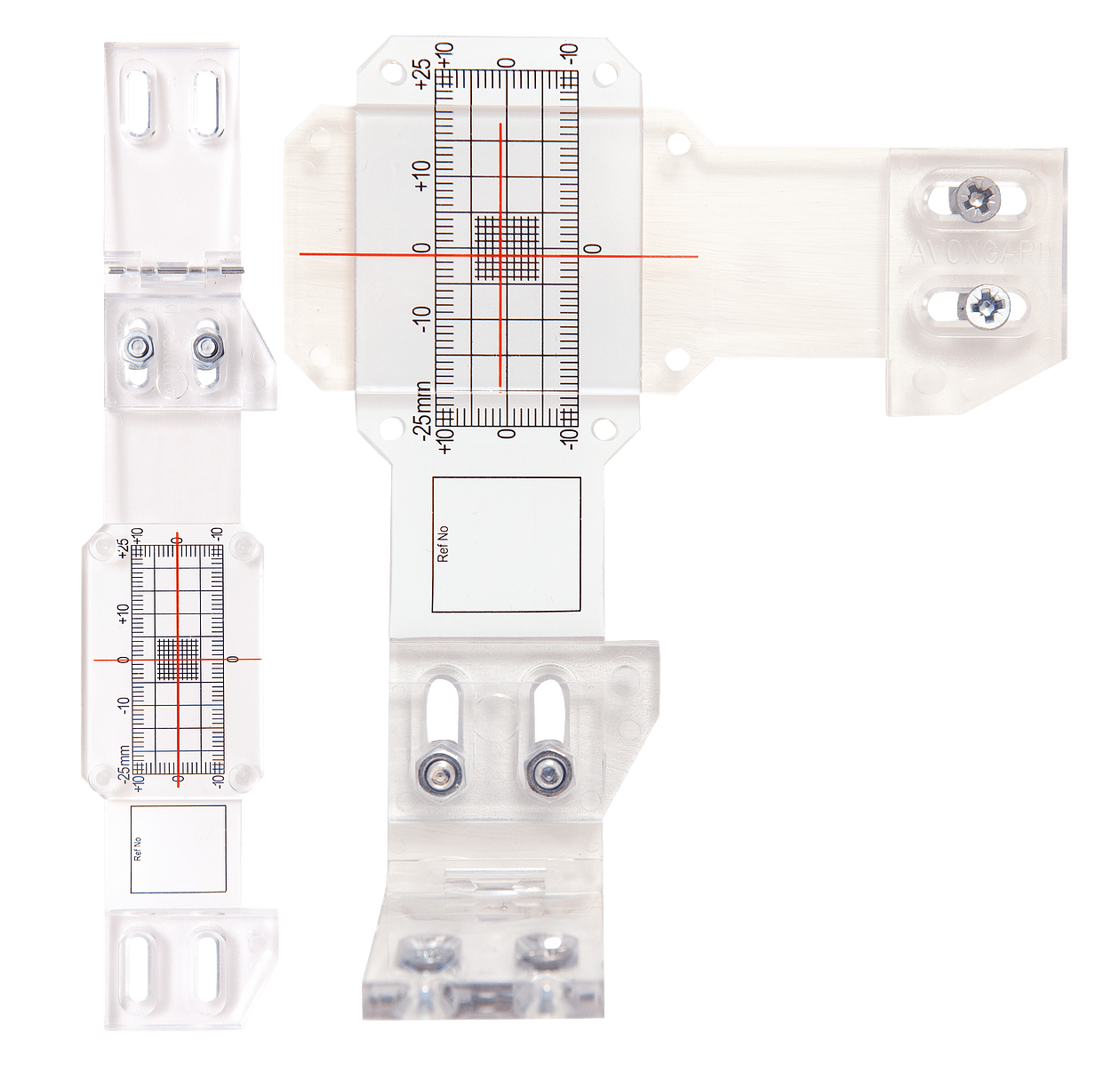

The corner crack gauge uses a hinged mounting bracket to allow monitoring of cracks in corners with angles between 70° and 180°. Monitors both internal and external corners. Corner gauges use the design of the plus gauge using four small pegs, which ensure alignment during installation and are then removed during monitoring. The corner gauge also provides measuring flats, which allow accurate readings to be taken with calipers during monitoring. Can be fixed to the surface with screws or adhesive (not included). Supplied with instructions and record sheet. Sold in pairs.

Accessories

  Part Number & Name Price QTY
Concrete Crack Monitor Adhesive HC-2942A
Concrete Crack Monitor Adhesive
$13.00
Concrete Crack Gauge, Screws and Plugs HC-2944
Concrete Crack Gauge, Screws and Plugs
$2.95
Concrete Crack Width Gauge HC-2940
Concrete Crack Width Gauge
$29.50
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
HC-2938 man 1110 (Product Manual PDF)
