Dial Indicators

Dial Indicators

Product Options

  Part Number & Name Price QTY
Dial Gauge, Range: .200", Division: .0001", Dia.: 2.25", Brake: NoH-4460
Dial Gauge, Range: .200", Division: .0001", Dia.: 2.25", Brake: No
$160.00
Dial Gauge, Range: .200", Division: .0001", Dia.: 2.25", Brake: YesH-4461A
Dial Gauge, Range: .200", Division: .0001", Dia.: 2.25", Brake: Yes
$180.00
Dial Gauge, Range: .300", Division: .0001", Dia.: 2.25", Brake: NoH-4462
Dial Gauge, Range: .300", Division: .0001", Dia.: 2.25", Brake: No
$178.00
Dial Gauge, Range: .500", Division: .0001", Dia.: 2.25", Brake: NoH-4471
Dial Gauge, Range: .500", Division: .0001", Dia.: 2.25", Brake: No
$189.80
Dial Gauge— Range: 1.000", Division: .001", Dia.: 2.25", Brake: NoH-4158.1
Dial Gauge— Range: 1.000", Division: .001", Dia.: 2.25", Brake: No
$115.00
Dial Gauge, Range: 2.000", Division: .001", Dia.: 2.75", Brake: NoH-4463
Dial Gauge, Range: 2.000", Division: .001", Dia.: 2.75", Brake: No
$186.00
Dial Gauge, Range: 3.000", Division: .001", Dia.: 3.5", Brake: NoH-4464
Dial Gauge, Range: 3.000", Division: .001", Dia.: 3.5", Brake: No
$254.00
Dial Gauge, Range: 4.000", Division: .001", Dia.: 2.75", Brake: NoH-4465
Dial Gauge, Range: 4.000", Division: .001", Dia.: 2.75", Brake: No
$283.00
Dial Gauge, Range: 5.000", Division: .001", Dia.: 2.25", Brake: NoH-4466
Dial Gauge, Range: 5.000", Division: .001", Dia.: 2.25", Brake: No
$310.00
Dial Gauge, Range: .200", Division: .0001", Dia.: 2.25", Brake: No, Counter-ClockwiseH-4460CC
Dial Gauge, Range: .200", Division: .0001", Dia.: 2.25", Brake: No, Counter-Clockwise
$129.00
Dial Gauge, Range: .300", Division: .0001", Dia.: 2.25", Brake: No, Counter-ClockwiseH-4462CC
Dial Gauge, Range: .300", Division: .0001", Dia.: 2.25", Brake: No, Counter-Clockwise
Call
Dial Gauge, Range: .500", Division: .0001", Dia.: 2.25", Brake: No, Counter-ClockwiseH-4471CC
Dial Gauge, Range: .500", Division: .0001", Dia.: 2.25", Brake: No, Counter-Clockwise
$150.00
Dial Gauge, Range: 1.000", Division: .001", Dia.: 2.25", Brake: No, Counter-ClockwiseH-4158.1CC
Dial Gauge, Range: 1.000", Division: .001", Dia.: 2.25", Brake: No, Counter-Clockwise
$115.00
Dial Gauge, Range: 2.000", Division: .001", Dia.: 2.75", Brake: No, Counter-ClockwiseH-4463CC
Dial Gauge, Range: 2.000", Division: .001", Dia.: 2.75", Brake: No, Counter-Clockwise
Call
Dial Gauge, Range: 3.000", Division: .001", Dia.: 3.5", Brake: No, Counter-ClockwiseH-4464CC
Dial Gauge, Range: 3.000", Division: .001", Dia.: 3.5", Brake: No, Counter-Clockwise
$254.00

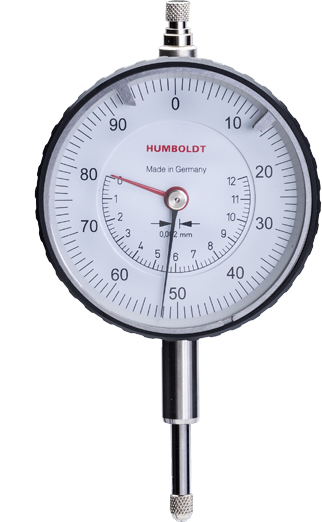

Dial Gauge, Range: 12mm, Division: .002mm, Dia.: 57mm, Brake: NoH-4465.12
Dial Gauge, Range: 12mm, Division: .002mm, Dia.: 57mm, Brake: No
$159.00
Dial Gauge, Range: 25mm, Division: .010mm, Dia.: 57mm, Brake: NoH-4465.25
Dial Gauge, Range: 25mm, Division: .010mm, Dia.: 57mm, Brake: No
$100.00
Dial Gauge, Range: 50mm, Division: .020mm, Dia.: 70mm, Brake: NoH-4465.50
Dial Gauge, Range: 50mm, Division: .020mm, Dia.: 70mm, Brake: No
$226.00
Metric Dial Gauge, Range: 12mm, Division: .002mm, Dia.: 57mm, Brake: No, Counter-ClockwiseH-4465.12CC
Metric Dial Gauge, Range: 12mm, Division: .002mm, Dia.: 57mm, Brake: No, Counter-Clockwise
$150.00
Metric Dial Gauge, Range: 25mm, Division: .010mm, Dia.: 57mm, Brake: No, Counter-ClockwiseH-4465.25CC
Metric Dial Gauge, Range: 25mm, Division: .010mm, Dia.: 57mm, Brake: No, Counter-Clockwise
$95.00
Metric Dial Gauge, Range: 50mm, Division: .020mm, Dia.: 70mm, Brake: No, Counter-ClockwiseH-4465.50CC
Metric Dial Gauge, Range: 50mm, Division: .020mm, Dia.: 70mm, Brake: No, Counter-Clockwise
$226.00
Add to Cart

Dial Indicators

Supports the following standards: ASTM D2850, ASTM D4829, ASTM D1883, ASTM D2166, ASTM D2435, ASTM D4546, ASTM D5333

Indicators are built to American Gauge Design specifications for accuracy and are used in field and laboratory testing applications. Dials are high-quality, low-friction type, designed for long life and accurate repeatable readings. All dial indicators have continuous graduations and revolution counters that show revolutions of the indicator hand. They are furnished with a lug back (with a 90° mounting hole to be used vertically or horizontally), a regular contact point .25" long, and a dust cap.

Specifications

Standard Dial Gauges have clockwise rotation. Models with a CC suffix have counter-clockwise rotation.
