Dynamic Cone Penetrometer for Shallow Insitu Tests

Dynamic Cone Penetrometer for Shallow Insitu Tests

Product Options

  Part Number & Name Price QTY
Dynamic Cone Penetrometer for Shallow Insitu TestsH-4202A
Dynamic Cone Penetrometer for Shallow Insitu Tests
$707.00
Add to Cart

Dynamic Cone Penetrometer for Shallow Insitu Tests

The dynamic cone penetrometer (DCP), originally developed by George Sowers, uses a 15 lb steel mass falling 20" to strike an anvil to penetrate a 1.5" diameter 45° (vertex angle) cone that has been seated in the bottom of a hand-augered hole. The DCP can be used effectively in augered holes in nearly all types of soils to depths of 15 to 20 ft. (4.6 to 6.1m). Components are zinc-plated and cones are heat-treated. The cone can be replaced with a Drive Tube Assembly (H-4202.7A ) for collection of 3" x 10" (7.6 x 25.4 cm) tube samples from hand-augered holes.

This penetrometer is used to determine a penetration resistance relationship with the standard penetration resistance of virgin soils. As with all field tools used in foundation evaluations, this method should never be used as the sole means for determining foundation conditions. It should be used in conjunction with previously established field and laboratory data, wich as the split-spoon standard penetration test, density, shear stength or consolidation data.

The H-4202 set includes; (1) standard hammer assembly (H-4202.1), (1) heat-treated 45° cone penetrometer point with a 1 ft. adapter rod (H-4202.3), (4) 2.5 ft. E drill rod extensions (H-4202.225), (1) auger head (H-4202.6), (1) auger T-handle (H-4202.4), (4) 36" auger extensions (H-4202.5).

The 4202 DCP test set is also available with a H-4202.1A sleeved drive hammer for easier and safer operation. Order H-4202AS.

Accessories

  Part Number & Name Price QTY
Sleeved Drive Hammer H-4202.1A
Sleeved Drive Hammer
$273.20
E drill rod extension 1 ft. H-4202.21
E drill rod extension 1 ft.
$50.00
E drill rod extension 2 ft. H-4202.22
E drill rod extension 2 ft.
$61.00
E drill rod extension 5 ft H-4202.25
E drill rod extension 5 ft
$97.30
Auger Tee handle, stainless steel H-4202.4SS
Auger Tee handle, stainless steel
$48.00
Auger extension, Stainless Steel, 36" H-4202.5SS
Auger extension, Stainless Steel, 36"
$73.00
Windowed auger head,  standard (heat-treated carbon steel), 3-1/4" H-4202.6W
Windowed auger head, standard (heat-treated carbon steel), 3-1/4"
$93.00
Windowed auger head,  standard (stainless steel) 3-1/4" H-4202.6WSS
Windowed auger head, standard (stainless steel) 3-1/4"
$168.00
3" E Rod Drive Head for Shelby Tubes H-4202.7A
3" E Rod Drive Head for Shelby Tubes
$90.00
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
Standard DriveHhammer H-4202.1
Standard DriveHhammer
$250.00
E drill rod extension 2.5 ft. H-4202.225
E drill rod extension 2.5 ft.
$95.00
Drive point w/1 ft. adapter (45° cone) H-4202.3
Drive point w/1 ft. adapter (45° cone)
$72.10
Drive point only (45° cone) H-4202.3DP
Drive point only (45° cone)
$32.00
Auger Head, Standard 3.25" H-4202.6
Auger Head, Standard 3.25"
$75.00
Auger Set with Quick-release Handle and Bucket H-4202.6A
Auger Set with Quick-release Handle and Bucket
$130.00

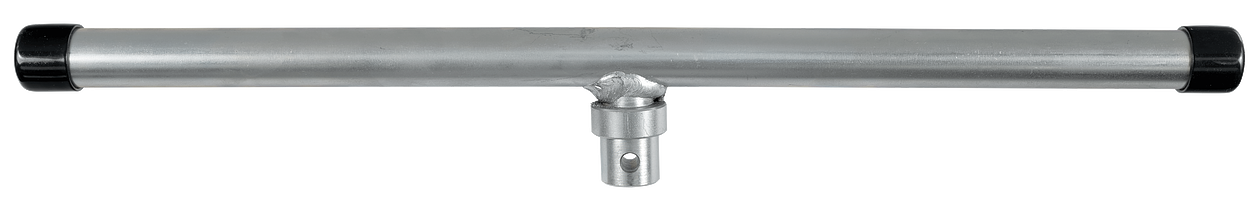

Auger Tee handle H-4202.4
Auger Tee handle
$34.00
Auger Extension. 36" H-4202.5
Auger Extension. 36"
$35.00
Replacement Connector Pin H-4202.8
Replacement Connector Pin
$2.00
Replacement Connector Pin, Stainless Steel H-4202.8SS
Replacement Connector Pin, Stainless Steel
$4.25
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-4202A MAN 0417 (Product Manual PDF)
