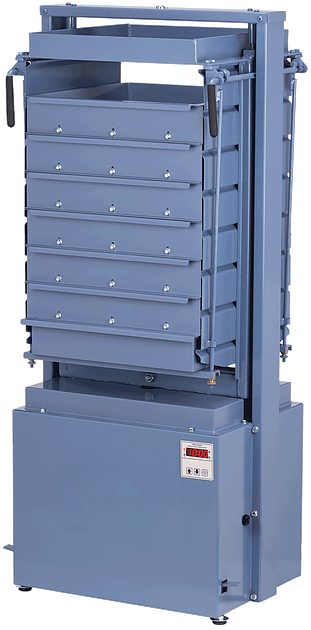

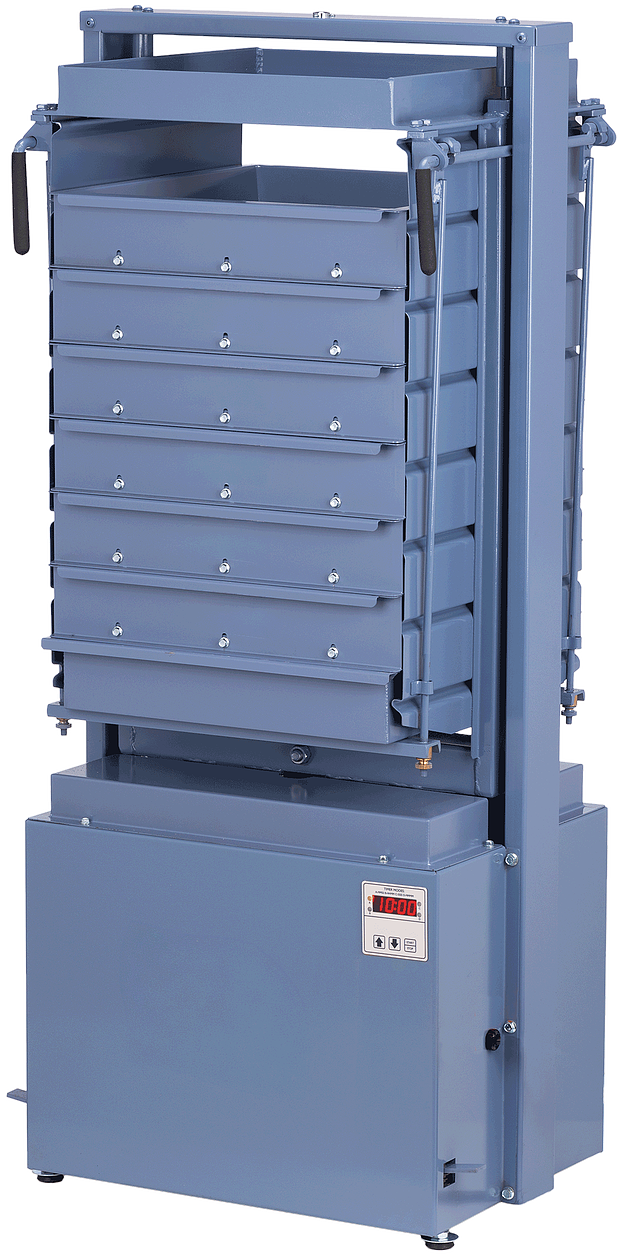

Gilson Porta-Screen® Screen Shaker

Gilson Porta-Screen® Screen Shaker

Product Options

  Part Number & Name Price QTY
Gilson Porta-Screen¨ (8 slots), 120V 60HzH-4295A
Gilson Porta-Screen¨ (8 slots), 120V 60Hz
$3,490.50
Gilson Porta-Screen¨ (8 slots), 220V 50HzH-4295A.5F
Gilson Porta-Screen¨ (8 slots), 220V 50Hz
$3,192.00
Gilson Porta-Screen¨ (6 slots), 120V 60HzH-4297A
Gilson Porta-Screen¨ (6 slots), 120V 60Hz
$3,250.00
Gilson Porta-Screen¨ (6 slots), 220V 50HzH-4297A.5F
Gilson Porta-Screen¨ (6 slots), 220V 50Hz
$3,184.50
Add to Cart

Gilson Porta-Screen® Screen Shaker

Supports the following standards:

The H-4295A and H-4297A Porta-Screen® screen shakers have long been the accepted standard portable screens for field control of construction aggregates and quality control of asphalt and ready to mix plants. These units are also useful for size separations of many other materials. Capacity depends on test material, but may range up to 60 lb (27.3 kg) per test. Vibration of both models is mechanically counterbalanced for smooth, stable operation with no required mounting.

Porta-Screen models are designed for performance durability, yet are light enough to be portable. Trays are quickly secured for operation by dual hand clamp levers. When levers are released, trays are individually removable for emptying, cleaning and weighing.

The vibrating assembly is held top and bottom on hardened guide pins. The 1/4hp motor, drive shaft, and connecting rod are synchronized with a rotating
weight counterbalance system. All are enclosed by the enameled steel protective outer case.

The H-4295A model features slots for 7 trays and a pan while the H-4297A features slots for 5 trays and a pan. Order screen trays and dust pans separately.

Accessories

  Part Number & Name Price QTY
H-4306

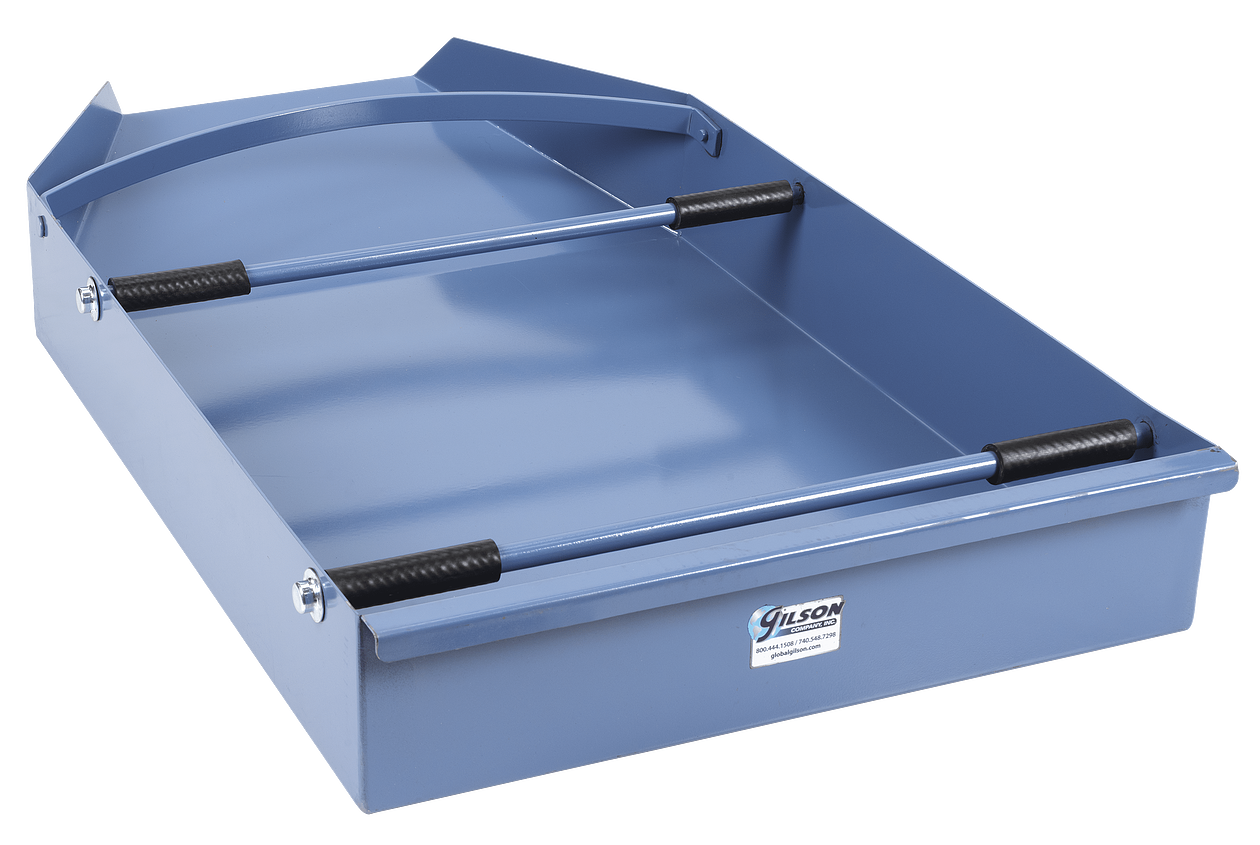

Gilson Porta-Pan for the H-4295 and H-4297 Porta Screen®
$140.50
H-4305
Porta-Screen® Cover for the H-4295 and H-4297 Porta Screen®
$117.50
Porta Wheels for H-4288 Universal Splitter (pkg. of 2) H-4288.1
Porta Wheels for H-4288 Universal Splitter (pkg. of 2)
$54.00
H-4302
Dustpan Tray for the H-4295 and H-4297 Porta Screen®
$69.50
Add to Cart

Standards

Standards
ISO 565
Related Items
  • Gilson Testing Screens, Hydraulic Clamping

    H-4295A.XX

    Gilson Testing Screens, Hydraulic Clamping

    6-Tray Capacity Testing Screens with Hydraulic Clamping Mechanism

  • Gilson Testing Screens-Manual Clamping

    H-4295A.XX

    Gilson Testing Screens-Manual Clamping

    6-Tray Capacity Testing Screens with Manual Clamping Mechanism

  • Gilson Test-Master® Testing Screen

    H-4295A.XX

    Gilson Test-Master® Testing Screen

    New Integrated hopper provides easier loading. Available in 6 and 7-tray Capacity, Hydraulic Clamping

  • Screen Tray & Cloth, 18" x 26" (457 x 660mm)

    H-4295A.XX

    Screen Tray & Cloth, 18" x 26" (457 x 660mm)

    Designed for use with models H-4283A, H-4276A, H-4273B and H-4274B Gilson Testing Screen Shakers.
