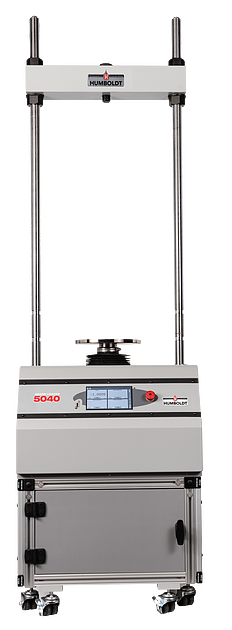

Load Frame, Grand Loader, Elite Series, 22000 lbf (100kN)

Load Frame, Grand Loader, Elite Series, 22000 lbf (100kN) New

Product Options

  Part Number & Name Price QTY
Load Frame, Grand Loader, Elite Series, 22000 lbf (100kN)HM-5040.3F
Load Frame, Grand Loader, Elite Series, 22000 lbf (100kN)
$23,250.00
Add to Cart

Load Frame, Grand Loader, Elite Series, 22000 lbf (100kN)

The HM-5040 Grand Loader is ideal for just about any application from road construction to high-volume commercial and educational laboratories, which require higher pressure loading capacities up to 22000 lbf (100kN), such as those involving larger sized samples and samples comprised of rock and rock/soil mixtures. It's wider stance and large vertical and horizontal clearances allows it to accommodate much large sample cells.

Its heavy-duty design and precise stepper-motor control provide a stable platform for years of reliable service allowing the HM-5040 to perform any tests required up to its load capacity of 22000 lbf (100kN). Like all elite series load frames, the HM-5040 is built around Humboldt's integral, 4-channel data logger with touch-screen control, which allows the load frame to be used as a standalone device capable of full test control and data logging. It can also be controlled by a networked computer at any location with access to the network.

The HM-5040 provides four (4) integral and independent data acquisition channels, which can be utilized in stand-alone configurations or accessed through a LAN-networked computer using Humboldt's Next Software.The HM-5040 load frame is built with durable, high-quality components and features the use of a stepper motor, precision gears and gear box to ensure smooth and reliable operation, as well as precise results.

In stand-alone mode, the HM-5040 load frame provides a 7" (178mm) touch-screen controller, giving you finger-tip control of your testing processes, as well as providing real-time, visual views of your data in both tabular and graphic formats. This waterproof, touch screen provides colorful, at-a-glance monitoring of testing functions without the use of a computer. Operators can see all the data in several formats at the machine while the test is running. Data can then be viewed simultaneously or downloaded later to a computer in the lab, in the next room or at a different location, while also providing report generation capabilities from within Humboldt's NEXT software or our enhanced test-specific modules.

Touch-Screen Controller provides:

  • 4-channel data acquisition
  • Hi-res, 7", waterproof, touch-screen provides total control and real-time graphical display of tests
  • Machine /Test control and data acquisition via touch-screen
  • Control up to 4 different tests at the same time
  • Calibration of channels to load cells, transducers and other suitable instruments
  • Real-time graphical chart and numerical display of tests via touch-screen display
  • Effective sampling rate of 50 readings per second
  • Stores up to 1000 tests with 3000 points per test
  • 2 USB ports. One in front for data transfer and the rear port is for powering a wireless access point.

When operated from a networked computer the NEXT software provides robust machine and test control, as well as report generation. It also provides the ability to control and monitor multiple machines from a single computer.

Humboldt's NEXT software provides:

  • Machine control, and data acquisition via networked computer
  • Provides the ability to use Next Software's, advanced test-specific modules
  • Real-time graphical chart and numerical display of tests via computer display
  • Effective sampling rate of 50 readings per second
  • Stores unlimited tests with up to 3000 points per test.
  • Up to 255 individual tests can be run simultaneously from a single PC
  • Advanced, test-specific modules are available, which provide all the calculations and graphs required per testing standards
  • Provides advanced graphing capabilities
  • Provides full-unit customization
  • Reports can also be exported to Excel or a CSV file, if desired, and, we can provide custom integration/export solutions for LIMS, EQuIS, gINT, etc.

For additional information about the Elite Series Load Frames, click here.

Specifications
Load capacity:22000 lbf (100kN)
Speed range — Testing:0.00001 – 0.49999 in/min (0.00001 – 12.50000 mm/min)
Speed range — Fast Approach:0.5 in/min (12.5 mm/min)
Data channels:4
Platen Size / Travel:10" (254mm) / 4" (100mm)
Data storage:1000 tests and up to 3000 readings per test
Clearance, vertical:44" (1100mm)
Clearance, horizontal: 21" (540mm)
Voltage:110/220V 50/60Hz - 5.0amps
Net weight:725 lbs (329kg)

Controller Specifications

Display (Resistive Touch) 7" (178mm) VGA (480 x 800)
Real-time Test Data Graphic and Tabulation
Processor Dual 32-bit ARM
RAM 64MB
Memory, Non-Volatile 4GB
Analog to Digital Converter 24 bit
Data Acquistion 4 Channels
Logging Speed up to 50 readings per second
Multi-Test Storage 1000
Points Per Test 3000
USB port (front) export data, import/export calibration data, WiFi
USB Port (back) provides external power for wireless access point
Ethernet Connection for network connectivity
Emergency Stop Large Button
24-bit Differential Analog to Digital Converter 2
Ambient Temperature Sensor 1
Ambient Temperature Sensor 1
Limit Switches 2
Firmware Update Ethernet or flash drive
