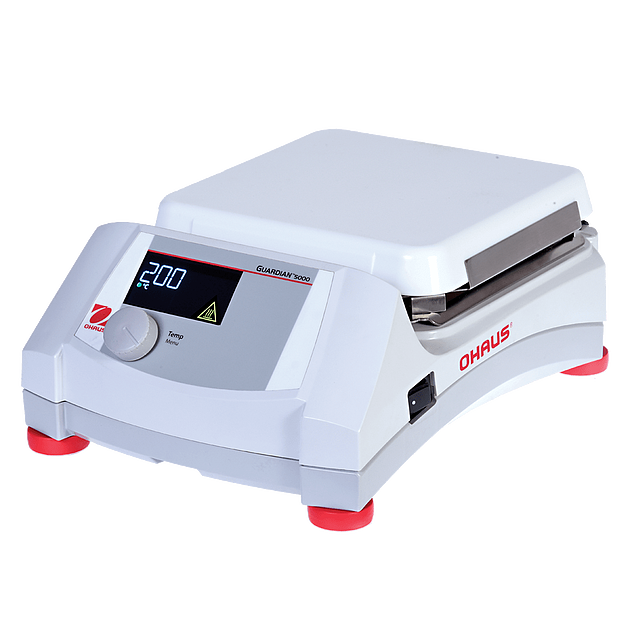

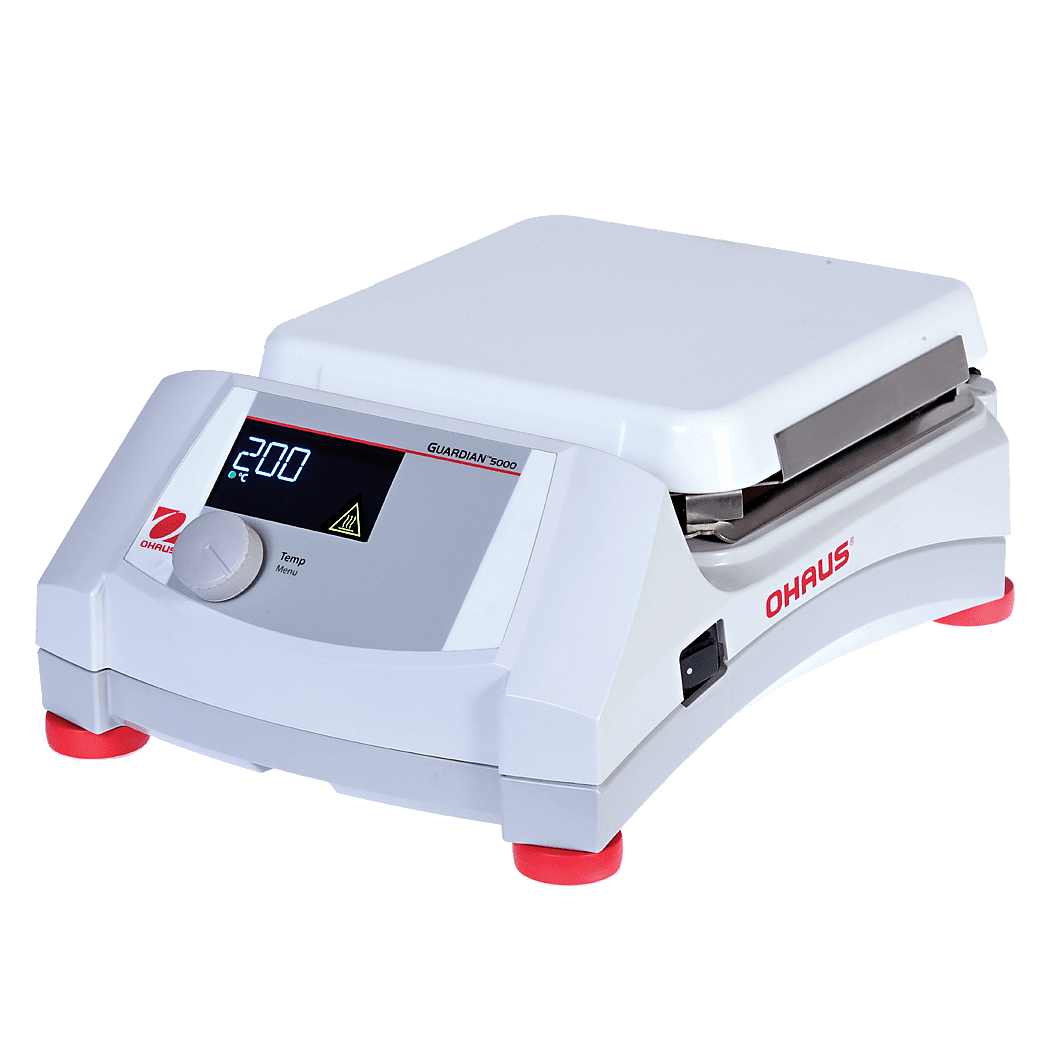

Guardian 5000, 7"x7" Ceramic Hotplates

OHAUS Guardian 5000™ Hotplates are designed for safety and simplicity in all research, academia and industrial applications. The design ensures proper temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple set points. Select from five models with three plate sizes for your everyday heating and stirring applications.

Unique Features:

  • SafetyHeat™ System Protects the Lab

An industry-leading early detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an overtemperature condition occurs.

  • Powerful, Consistent Stirring Performance

Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.

  • Easy to Read LCD Display With Everything You Need to Know

The bright LCD display includes large temperature and speed settings, intuitive icons and a prominent hot top indicator - all designed to quickly and easily monitor performance from across the lab.

  • Designed for Durability and Reliability with the Exclusive SmartHousing™

The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled control panel.

Overall Dimensions:30.7 x 22.4 x 12.2cm (12.1" x 8.8" x 4.8")
Top plate dimensions / Material:17.8 x 17.8cm (7" x 7") Ceramic 25.4 x 25.4cm (10" x 10") Ceramic
Electrical (50/60 Hz):120 volts ±10%: 10.0 amps 230 volts ±10%: 6.0 amps
Fuses:10A time-delay, 5x20mm, 250VAC
Temperature range:Ambient +5° to 500°C
Temperature stability of top plate:± 3% > 100°C, ± 2% ≤ 100°C
Temperature stability with temperature probe:± 1% > 100°C, ± 1°C ≤ 100°C
Stir capacity:15L
Speed range:-
Speed stability:-
Weight capacity:Up to 14.5kg (32 lbs)


Part Number & Name
Price QTY
In Use Cover Guardian 7x7
Temperature Probe 20cm Stainless for Ohaus Guardian Hotplate
Temperature Probe 25cm Stainless for Ohaus Guardian Hotplate
Stir Bar Retriever
Support Rod And Clamp Kit
Add to Saved Cart


Manuals, Data Sheets & Safety Data Sheets

Guardian5000DatasheetUS (Data Sheet PDF)

Guardian5000manual (Product Manual PDF)
