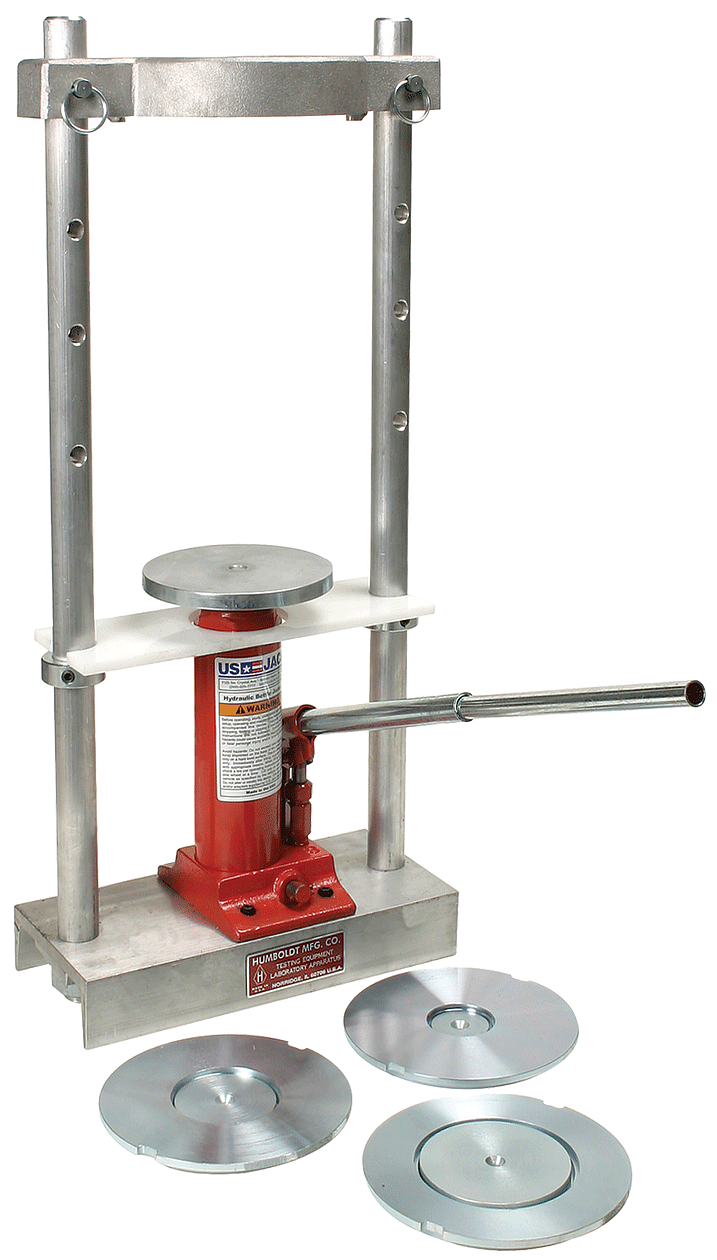

Hand-Operated Sample Ejector
Product Options
Hand-Operated Sample Ejector
Supports the following standards: ASTM D1557, ASTM D1883, ASTM D5102, ASTM D558, ASTM D560, ASTM D698
Designed for lab and field use to extract soil samples from 4" and 6" compaction molds, as well as 2" and 2.8" tube samples. The ejection force is generated by means of a 3-ton (27.7kN) capacity, hand-operated hydraulic jack. The cast-aluminum ejector head assembly can be positioned at different heights through the use of quick release pins. This enables the operator to easily match the ejection travel to the height of the mold being used. Piston stroke is 8" (235mm).
Overall dimensions 13"W x 6"D x 27"H (330 x 152 x 686mm).
If you have questions about Sample Ejectors or need assistance selecting equipment, please call us at 1.800.544.7220 or use our Ask Humboldt form.
Literature
Manuals, Data Sheets & Safety Data Sheets
H-4155A man 0710 (Product Manual PDF)
