Load Ring with Digital Indicator

Load Ring with Digital Indicator

Product Options

  Part Number & Name Price QTY
Load Ring with Digital indicator, 110lbf, 0.5kN, 50kgfH-4454.001D
Load Ring with Digital indicator, 110lbf, 0.5kN, 50kgf
$960.00
Load Ring with Digital indicator, 220lbf, 1.0kN, 100kgfH-4454.002D
Load Ring with Digital indicator, 220lbf, 1.0kN, 100kgf
$970.00
Load Ring with Digital indicator, 550lbf, 2.5kN, 250kgfH-4454.005D
Load Ring with Digital indicator, 550lbf, 2.5kN, 250kgf
$980.00
Load Ring with Digital Indicator, 1100lbf, 5.0kN, 500kgfH-4454.010D
Load Ring with Digital Indicator, 1100lbf, 5.0kN, 500kgf
$990.00
Load Ring with Digital indicator, 2200lbf, 10.0kN, 1000kgfH-4454.020D
Load Ring with Digital indicator, 2200lbf, 10.0kN, 1000kgf
$1,000.00
Load Ring with Digital indicator, 5500lbf, 25.0kN, 2500kgfH-4454.050D
Load Ring with Digital indicator, 5500lbf, 25.0kN, 2500kgf
$1,010.00
Load Ring with Digital indicator, 11000lbf, 50.0kN, 5000kgfH-4454.100D
Load Ring with Digital indicator, 11000lbf, 50.0kN, 5000kgf
$1,020.00
Load Ring with Digital indicator, 22000lbf, 100.0kN, 10000kgfH-4454.200D
Load Ring with Digital indicator, 22000lbf, 100.0kN, 10000kgf
$1,030.00
Add to Cart

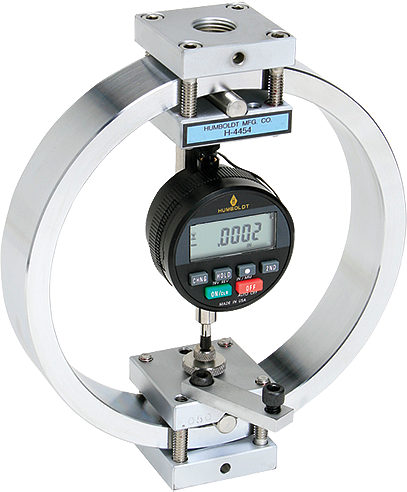

Load Ring with Digital Indicator

Supports the following standards: ASTM E74

Sometimes called "Proving Rings," Load Rings are used with various asphalt, concrete, or soil instrumentation to measure loads, and are
ideal for use with our MasterLoader compression machines, Direct Shear machines and other testing equipment. Our high quality tensile steel rings have spherical seatings suitable for all shear boxes and load frames. Each load ring is shipped with a fitted dial gauge and calibration certificate, and supplied with tables listing all measurement units.

Specifications

8-1/4" (210mm) high, 3/4-16 UNF thread female mounting. Available with digital indicators compatible with data acquisition systems. Eight models range in size from 110 to 22,000 lbf (0.5 to 100.0 kN). Meet ASTM E74.

Load Ring with Digital Indicator

lbf kN kgf Model
110 0.5 50 H-4454.001D
220 1.0 100 H-4454.002D
550 2.5 250 H-4454.005D
1100 5.0 500 H-4454.010D
2200 10.0 1000 H-4454.020D
5500 25.0 2500 H-4454.050D
11000 50.0 5000 H-4454.100D
22000 100.0 10000 H-4454.200D

Standards

Standards
ASTM E74
