Load Ring with Dial Gauge

Load Ring with Dial Gauge

Product Options

  Part Number & Name Price QTY
Load Ring with analog dial indicator, 110lbf, 0.5kN, 50kgfH-4454.001
Load Ring with analog dial indicator, 110lbf, 0.5kN, 50kgf
$750.00
Load Ring with analog dial indicator, 220lbf, 1.0kN, 100kgfH-4454.002
Load Ring with analog dial indicator, 220lbf, 1.0kN, 100kgf
$760.00
Load Ring with analog dial indicator, 550lbf, 2.5kN, 250kgfH-4454.005
Load Ring with analog dial indicator, 550lbf, 2.5kN, 250kgf
$770.00
Load Ring with analog dial indicator, 1100lbf, 5.0kN, 500kgfH-4454.010
Load Ring with analog dial indicator, 1100lbf, 5.0kN, 500kgf
$780.00
Load Ring with analog dial indicator, 2200lbf, 10.0kN, 1000kgfH-4454.020
Load Ring with analog dial indicator, 2200lbf, 10.0kN, 1000kgf
$840.00
Load Ring with analog dial indicator, 5500lbf, 25.0kN, 2500kgfH-4454.050
Load Ring with analog dial indicator, 5500lbf, 25.0kN, 2500kgf
$890.00
Load Ring with analog dial indicator, 11000lbf, 50.0kN, 5000kgfH-4454.100
Load Ring with analog dial indicator, 11000lbf, 50.0kN, 5000kgf
$860.00
Load Ring with analog dial indicator, 22000lbf, 100.0kN, 10000kgfH-4454.200
Load Ring with analog dial indicator, 22000lbf, 100.0kN, 10000kgf
$880.00
Add to Cart

Load Ring with Dial Gauge

Supports the following standards: ASTM D2850, ASTM D2166, ASTM D1633, ASTM D1883

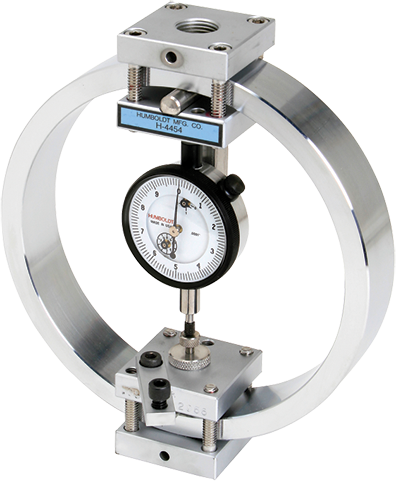

Sometimes called "Proving Rings," Load Rings are used with various asphalt, concrete, or soil instrumentation to measure loads, and are ideal for use with our MasterLoader compression machines, Direct Shear machines and other testing equipment. Our high quality tensile steel rings have spherical seatings suitable for all shear boxes and load frames. Each load ring is shipped with a fitted dial gauge and calibration certificate, and supplied with tables listing all measurement units.

Specifications
8-1/4" (210mm) high, 3/4-16 UNF thread female mounting. Available with digital indicators compatible with data acquisition systems. Eight models range in size from 110 to 22,000 lbf (0.5 to 100.0 kN). Meet ASTM E74.

Load Ring with Dial Indicator

lbf kN kgf Model
110 0.5 50 H-4454.001
220 1.0 100 H-4454.002
550 2.5 250 H-4454.005
1100 5.0 500 H-4454.010
2200 10.0 1000 H-4454.020
5500 25.0 2500 H-4454.050
11000 50.0 5000 H-4454.100
22000 100.0 10000 H-4454.200
Related Items
  • Load Ring with Digital Indicator

    H-4454.XX

    Load Ring with Digital Indicator

    High tensile steel rings with fitted digital dial gauge for measuring various material loads.

  • Digital Indicators

    H-4454.XX

    Digital Indicators

    Switchable inch/metric digital indicators are accurate to ±0.0001 (0.002mm)

  •  Load Cells, S-Type

    H-4454.XX

    Load Cells, S-Type

    Load cells are bi-directional for both tension and compression loads, include calibration cert.

  • Load Cells— Pancake-Type

    H-4454.XX

    Load Cells— Pancake-Type

    Design theoretically provides the least amount of deflection in applications.
