Load Cells, S-Type

Load Cells, S-Type

Product Options

  Part Number & Name Price QTY
Load Cells, S-Type Load Cell, S-Type, 500 lbf (2.5 kN)HM-2300.005
Load Cells, S-Type Load Cell, S-Type, 500 lbf (2.5 kN)
$358.00
Load Cells, S-Type Load Cell, S-Type, 1000 lbf (5 kN)HM-2300.010
Load Cells, S-Type Load Cell, S-Type, 1000 lbf (5 kN)
$358.00
Load Cells, S-Type Load Cell, S-Type, 2000 lbf (10 kN)HM-2300.020
Load Cells, S-Type Load Cell, S-Type, 2000 lbf (10 kN)
$358.00
Load Cells, S-Type Load Cell, S-Type, 5000 lbf (25 kN)HM-2300.050
Load Cells, S-Type Load Cell, S-Type, 5000 lbf (25 kN)
$455.00
Load Cell, S-Type, 10,000lbf (50kN)HM-2300.100
Load Cell, S-Type, 10,000lbf (50kN)
$455.00
Add to Cart

Load Cells, S-Type

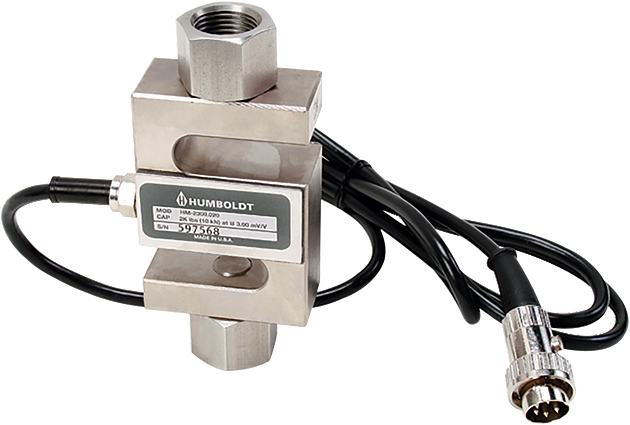

These S-Type Load Cells are designed for use in material testing applications and are bi-directional for both tension and compression loads. They include a standard cable for use with Humboldt instrumentation and come with a calibration cert. Constructed from stainless steel. Include: 6 ft. cable with 5-pin DIN plug for Humboldt instrumentation and calibration certificate.

Additional Specifications

Performance Specifications:
Excitation Voltage: 10 VDC, Maximum 15 VDC
Rated output: 3.0 mv/V Minimum
Non-linearity: 0.03% Full Scale Output
Hysteresis: 0.02% FSO
Non-repeatability: 0.01% FSO
Creep (30 minutes): 0.03% FSO
Zero Balance: ±1.0% FSO
Bridge resistance
Input: 350 ohms, nominal
Output: 350 ohms, ±3.5 ohms
Overload
Safe Static: 150% of Rated Capacity
Ultimate: 175% of Rated Capacity
Temperature
Compensated range: 0-150°F
Effect on output: 0.0006% FSO/°F
Effect on zero: 0.0008% FSO/°F
Finish: Nickel-plated or Stainless Steel
Seal: Waterproof

Performance Specifications
Excitation voltage: 10 VDC, max.15 VDC
Rated output: 3.0 mv/V minimum
Non-linearity: 0.03% full scale Output
Hysteresis: 0.02% FSO
Non-repeatability: 0.01% FSO
Creep (30 minutes): 0.03% FSO
Zero balance: ±1.0% FSO
Bridge resistance:
Input: 350 ohms, nominal
Output: 350 ohms, ±3.5 ohms
Overload:
Safe static: 150% of capacity
Ultimate: 175% of capacity
Temperature:
Compensated range: 0-150°F
Effect on output: 0.0006% FSO/°F
Effect on zero: 0.0008% FSO/°F
Finish: Nickel-plated
or stainless steel
Seal: Waterproof

Literature

Manuals, Data Sheets & Safety Data Sheets
Humboldt Triaxial Equipment Guide-LR0417 (Data Sheet PDF)
Triaxial-Catalog-Spanish (Data Sheet PDF)
Related Items
  • Load Cells— Submersible-Type

    HM-2300.XX

    Load Cells— Submersible-Type

    Designed to work within the triaxial cell to reduce hysteresis effects

  • Load Cells— Pancake-Type

    HM-2300.XX

    Load Cells— Pancake-Type

    Design theoretically provides the least amount of deflection in applications.

  • Upper Platen, Swivel Top

    HM-2003E

    Upper Platen, Swivel Top

    4.25" (108mm) diameter top swivel platen.

  • Load Cell Stud, Threaded

    H-4178.2

    Load Cell Stud, Threaded

    Threaded stud for attaching S-type load cells to load frame cross beams
