Sand Equivalent Test Set

Sand Equivalent Test Set

Product Options

  Part Number & Name Price QTY
Sand Equivalent Test Set Sand Equivalent Test Set with CaseH-4340
Sand Equivalent Test Set Sand Equivalent Test Set with Case
$442.20
Sand Equivalent Test Set Sand Equivalent Test Set without CaseH-4341
Sand Equivalent Test Set Sand Equivalent Test Set without Case
$310.00
Add to Cart

Sand Equivalent Test Set

Supports the following standards: AASHTO T176

Sand equivalent tests serve as rapid field-correlation tests to show relative proportions of clay-like or plastic fines and dusts in granular soils and fine aggregates. The test separates sand and clay, a comparative reading is determined between the suspended clay and the settled sand in the measuring cylinder. Tests may be done in the laboratory or the field. Set meets ASTM D2419; AASHTO T176. Shipping wt. 21 lbs (9.5kg)

Specifications

Set includes the following items:
(4) Graduated, Plastic, Measuring Cylinders—H-4340.1
(2) Solid Rubber Stopper—H-4340.5
(1) Irrigator Tube—H-4340.2.6
(1) Weighted Foot Assembly—H-4340.3
(1) Standard Stock Solution, 8oz. Plastic Bottle—H-4342
(1) Siphon Assembly—H-4340.2 (tube and hose, bow tube and hose, stopper)
(1) Clamp—H-8630
(1) Wide-Mouth Funnel—H-4340.4
(1) Measuring Can, 3.0 oz.—H-1350.3SP
Individual items above can be ordered separately.

Accessories

  Part Number & Name Price QTY
Sand Equivalent Stock Solution Sand Equivalent Stock SolutionClick for Options
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
H-4340.1
Measuring Cylinder, plastic
$42.50
H-4340.5
Solid Rubber Stopper
$2.30
H-4340.2.6
Irrigator Tube
$31.00
H-4340.3
Weighted Foot Assembly
$95.00
Sand Equivalent Stock Solution Sand Equivalent Stock SolutionClick for Options
H-4340.2
Siphon Assembly
$38.00
Pinchcock (Day's) H-8630
Pinchcock (Day's)
$2.00
H-4340.4
Wide-Mouth Funnel, 8 oz.
$1.60

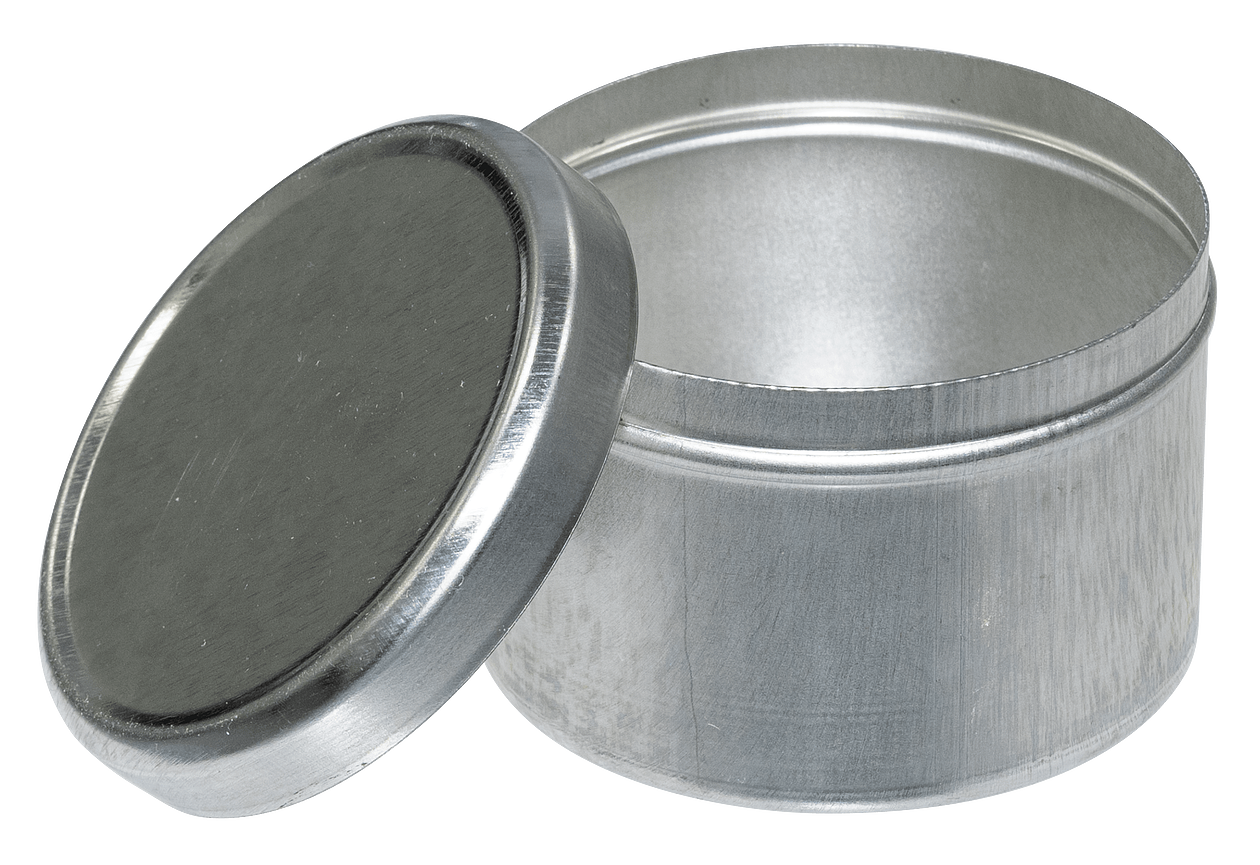

H-1350.3SP
Measuring Can, 3 oz.
$1.25
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-4340 man 0109 (Product Manual PDF)

Standards

Standards
AASHTO T176
