Aggregate Washers

Aggregate Washers

Product Options

  Part Number & Name Price QTY
Aggregate Washer, Small, 120V 60HzH-3880
Aggregate Washer, Table Top Model, 120V 60Hz
$950.00
Aggregate Washer, Small, 220V 50/60HzH-3880.4F
Aggregate Washer, Table Top Model, 220V 50/60Hz
$1,070.00
Aggregate Washer, Large, 120V 60HzH-3881
Aggregate Washer, Large, 120V 60Hz
$1,600.00
Aggregate Washer, Large, 220V 50HzH-3881.4F
Aggregate Washer, Large, 220V 50Hz
$1,675.00
Add to Cart

Aggregate Washers

Supports the following standards: ASTM C535, ASTM C117, ASTM C117, AASHTO T11

Aggregate washers provide washing to aggregate samples to completely separate all particles.

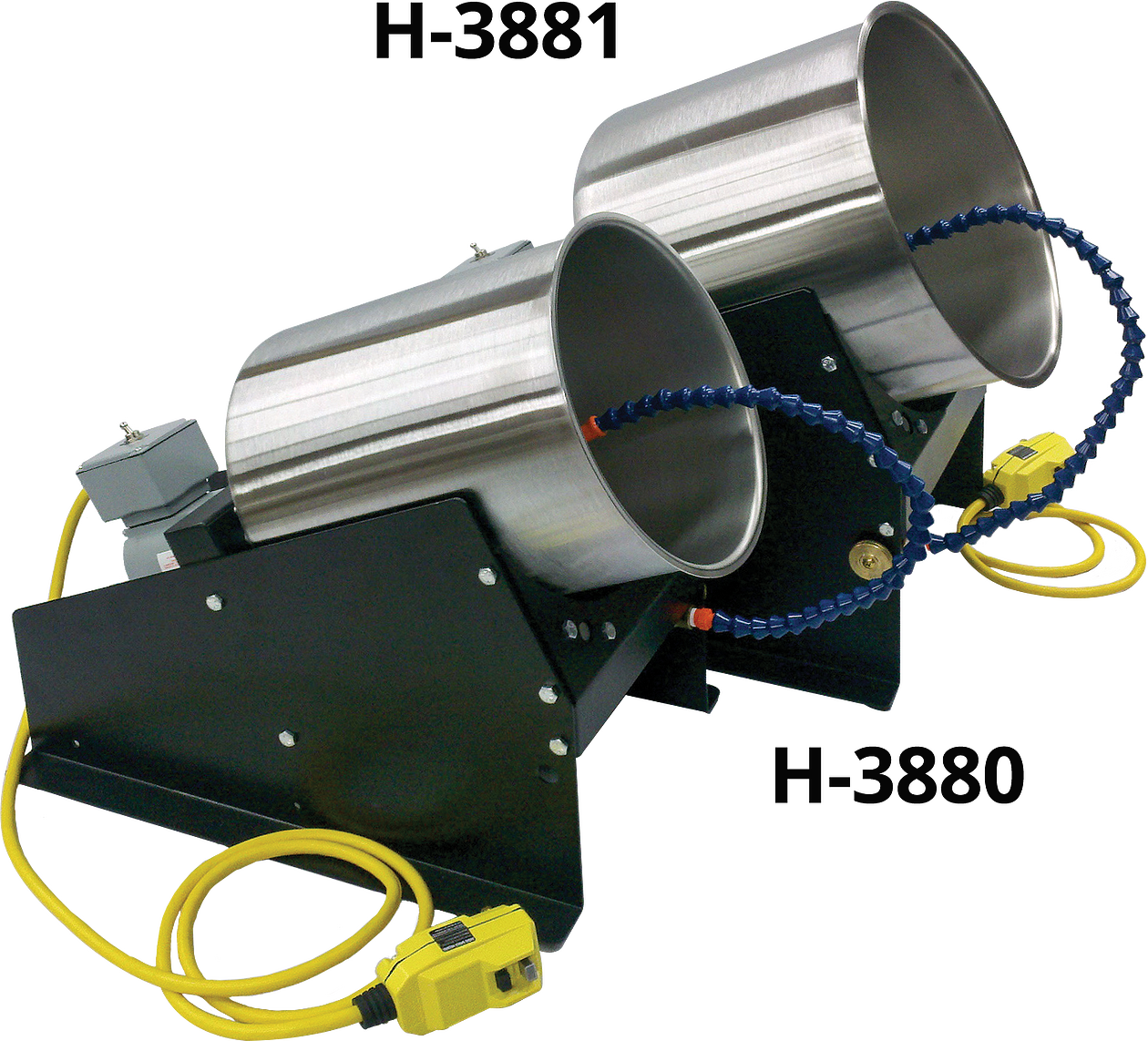

The H-3881 (large model) allows processing of large aggregate and soil samples up to 15lb (7kg). Stainless steel drum size is 12" diameter x 13" high (304 x 330mm).

The H-3880 (smaller model) is designed for washing geotechnical or smaller aggregate samples of up to 6—8lb (2.7—3.6kg). The gooseneck water tube swivels aside to allow drum removal. Stainless steel drum is 9" diameter x 10.75" high (229 x 273mm).

Both models are equipped with totally enclosed gear motors for drum rotation and include 6ft (1.8M) power cords with GFCI plugs.

Features:

  • Automatically washes soils and aggregate samples to remove fines
  • Designed for fines content determination or preparation of samples for sieving
  • Eliminates high cost and time required for manual methods
  • Prevents loss of oversize material in decanted wash water
  • Totally enclosed gear motor for drum rotation

Order USA Standard Sieve, 200 mesh or No. 16 sieves separately, see accessories

Accessories

  Part Number & Name Price QTY
8" Dia., No. 200 (75µm) Brass Frame Stainless Mesh, 2" (50mm) Full Height Frame Standard Sieve H-3920FS200
8" Dia., No. 200 (75µm) Brass Frame Stainless Mesh, 2" (50mm) Full Height Frame Standard Sieve
$70.00
12" Dia., No. 200 (75µm) Brass Frame Stainless Mesh, 3" (75mm) Full Height Frame Standard Sieve H-3912FS200
12" Dia., No. 200 (75µm) Brass Frame Stainless Mesh, 3" (75mm) Full Height Frame Standard Sieve
$119.00
8" Dia., No. 16 (1.18mm) Brass Frame Stainless Mesh, 2" (50mm) Full Height Frame Standard Sieve H-3920FS16
8" Dia., No. 16 (1.18mm) Brass Frame Stainless Mesh, 2" (50mm) Full Height Frame Standard Sieve
$53.50
12" Dia., No. 16 (1.18mm) Brass Frame Stainless Mesh, 3" (75mm) Full Height Frame Standard Sieve H-3912FS16
12" Dia., No. 16 (1.18mm) Brass Frame Stainless Mesh, 3" (75mm) Full Height Frame Standard Sieve
$85.50
Add to Cart

Standards

Standards
ASTM C535
ASTM C117
ASTM C117
AASHTO T11
