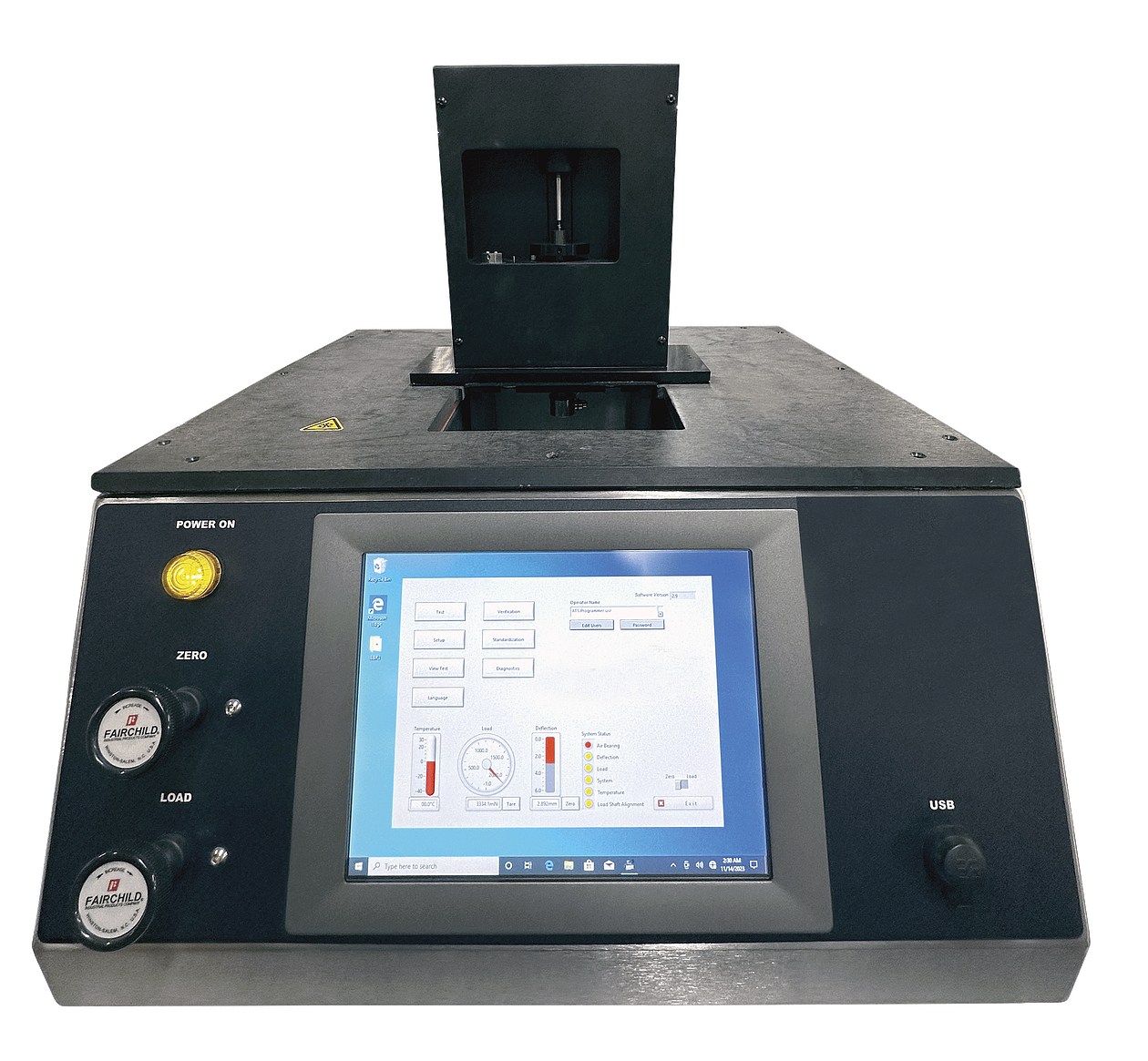

Bending Beam Rheometer (BBR3) with Touch-Screen Control

Bending Beam Rheometer (BBR3) with Touch-Screen Control

Product Options

  Part Number & Name Price QTY
Bending Beam Rheamoter (BBR3) with Touch-Screen, 120V 60HzH-1642T
Bending Beam Rheamoter (BBR3) with Touch-Screen, 120V 60Hz
$36,845.00
Bending Beam Rheometer (BBR3) with Touch-Screen Control, 220V 50HzH-1642T.5F
Bending Beam Rheometer (BBR3) with Touch-Screen Control, 220V 50Hz
$36,845.00
Add to Cart

Bending Beam Rheometer (BBR3) with Touch-Screen Control

The Bending Beam Rheometer 3 (BBR3) has been designed to perform flexural tests on asphalt binder and similar specimens as part of the PG grading system according to Superpave. The BBR3 is a state of the art internal computer system incorporating touchscreen technology. The BBR3’s new external cooling unit is now more compact and omits less noise during operation. Programmable test parameters allow users to input and save their own unique settings, allowing the BBR3 to satisfy a diverse range of testing applications.

The BBR3 is made up of a fluid bath base with a built-in touchscreen computer, load frame, external refrigeration unit, and a calibration kit with carrying case. During operation, a known force is applied to the center of a horizontally supported specimen beam submerged in a cold liquid bath while internal software calculates the flexural creep stiffness of the beam. Used in part to determine a sample’s critical cracking temperature and low temperature PG grade, the BBR3’s -400C to 250C temperature range is effciently calculated by a platinum RTD measuring device. The 500g load cell and changeable specimen supports easily transition the BBR3 for crack sealant testing, and the free standing external cooling unit ensures that the cooling fluid maintains a constant temperature.

Programmable test parameters allow the user to define a test and save those parameters for later testing. Predefined test parameters include the standard ASTM BBR test, as well as the crack sealant test and the sliver test.
The BBR3’s programmable test parameters include: Deflection Plot, Load Plot, Bath Temperature, Stirrer Speed, Specimen size, Testing Times, Load, and Testing Company.

The BBR3 features a Displacement Transducer accuracy of 0.097 micron, a measurement resolution of 0.006g, and a Deformation Accuracy of 0.097. While other BBR models may favor Peltier cooling, the BBR3 operates more efifciently without it.
Reporting features on the new BBR3 include the ability to name your sample and enter any important notes. With the new BBR3, your data is collected twice per second n addition to these new features, BBR3 users now also have the ability to upload their company logo directly into their test report.

Once the BBR3 has been connected to a network, users have the ability to access their equipment using a mobile phone, tablet, or PC. This also allows users to connect to a wireless printer, making it easy to print data and test results. A USB port on the back of the unit is also available for users who prefer to connect a printer directly.

In addition to the USB port on the back of the BBR3, a USB port on the front of the unit allows for user friendly software updates. Operators can also use this USB port to download data onto a flashdrive, or connect a wireless keyboard for more e cient data input.

The Bending Beam Rheometer (BBR3) with Touch-Screen Control supports the following standards: ASTM D6648, AASHTO T313, TP87 BS EN 14771

Load Frame Integral stainless steel frictionless construcion
Loading Shaft In-line stainless steel with blunt point
Test Load Variable test range from 0 to 4000 mN standard System maintains required test load within ± 5 mN throughout the test cycle
Test Cycle Times Cycle times for pre-load, recovery, and test load are completely operator-adjustable
Load Cell 500g (temperature-compensated)
Mechanical Overload Protection Standard
Test Weights Calibrated and traceable to NIST
Sample Supports 25mm (0.98 in.) diameter stainless steel spaced 4.00 in. (101.6mm) apart
LVDT Displacement Transducer 0.25 in. (6.35mm) calibrated range to provide 2um resolution throughout testing and verification range
Data Display Large on-screen display of load, displacement, and bath temperature provides ease of setup and operation. Real-time displacement, loading, and temperature graphs are displayed during the test cycle and can be re-plotted and re-scaled as needed for easy viewing
Cooling Unit Included (non-CFC refrigerant)
Operating Temperature Ambient to -40°F (-40°C)
Temperature Measurement Platinum RTD
Power Requirements 115VAC 50/60Hz or 230VAC 50Hz
Compressed Air Requirements 50 psi (0.34 MPa) clean, dry air supply required
Digital Air Regulation Linearity ‹ ± 1.5% of span Hysteresis Repeatability ‹ 1.0% of span Supply Pressure Sensitivity ‹ 0.02% of span per 1.0 PSIG

Accessories

  Part Number & Name Price QTY
Specimen Mold Set (5 per set) H-1642.1
Specimen Mold Set (5 per set)
$205.00
Mylar Strips, 5 sets of 3 ea H-1642.2
Mylar Strips, 5 sets of 3 ea
$115.00
Bending Beam Rheometer, Calibration Kit H-1642.3
Bending Beam Rheometer, Calibration Kit
$1,500.00
Add to Cart

Standards

Standards
ASTM D6648
AASHTO T313
TP87 BS EN 14771
