Concrete Air Meter

Concrete Air Meter
New

Product Options


Part Number & Name
Price QTY
H-2787
Concrete Air Meter
$750.00
Add to Saved Cart

Concrete Air Meter

Supports the following standards: ASTM C192, ASTM C231, AASHTO T152

The H-2787 air meter is one of the most precise air content measuring devices available. With heat-treated, cast aluminum construction and cast-in handles on the base, the H-2786A is heavy duty, yet lightweight, and easy to handle.

This air meter utilizes the best clamping system available, with large stainless steel clamp levers and a holding capacity of 2500 lbs. each. This clamping system provides an easy, dependable operation. Employing the use of a superior, high-volume Pump, this system makes operation efficient yet rapid. The meter includes a large, accurate pressure gauge with safety glass and bold color dial face. Color coded for entrapped and entrained air readings.

The H-2787 air meter is furnished complete with the following items:

  • Type B pressure meter
  • Precisely molded polyethylene case with inner molded reinforced walls to hold the meter and accessories in place.
  • Calibrated Vessel
  • Calibration Outside Tube
  • Calibration Inside Tube
  • Strike-off Bar
  • 24" Long Tamping Rod 5/8" diameter rounded to a hemispherical tip at both ends
  • 3 oz. Bulb Syringe
  • 16 oz. Rubber Mallet

Conforms to ASTM C231 & AASHTO T152

Replacement Parts


Part Number & Name
Price QTY
H-2785.1
Pressure Chamber for Concrete Air Meters
$51.00
H-2783.2
Pressure Chamber Cap for Concrete Air Meters
$50.00
H-2783.3
Pressure Chamber Elbow for Concrete Air Meters
$9.00
H-2785.4
Pressure Chamber Gasket for Air Meters
$3.70
H-2783.5
Air-Release Stem for Concrete Air Meters
$6.00
H-2783.6
Air-Release Cap for Air Meters
$3.00
H-2783.6A
Release Cap Gasket for Air Meters
$1.90
H-2785.7
Air Meter Gauge
$100.00
H-2783.12
Needle Valve Stem
$23.00
H-2785.12
Needle Valve Nut
$1.00
H-2785.13
Needle Valve Lever
$10.00
H-2785.14
Needle Valve Spacer
$9.00
H-2785.15
Needle Valve O-Ring
$1.40
H-2783.17
Needle Valve Spring
$4.00
H-2785.18
Needle Valve Seat Assembly
$15.00
H-2783.19
Cover
$230.00
H-2785.20
Cover O-Ring
$10.00
H-2783.21
Needle Valve Spring Retainer
$5.00
H-2783.24
Cover Petcock
$12.50
H-2783.25
Base
$250.00

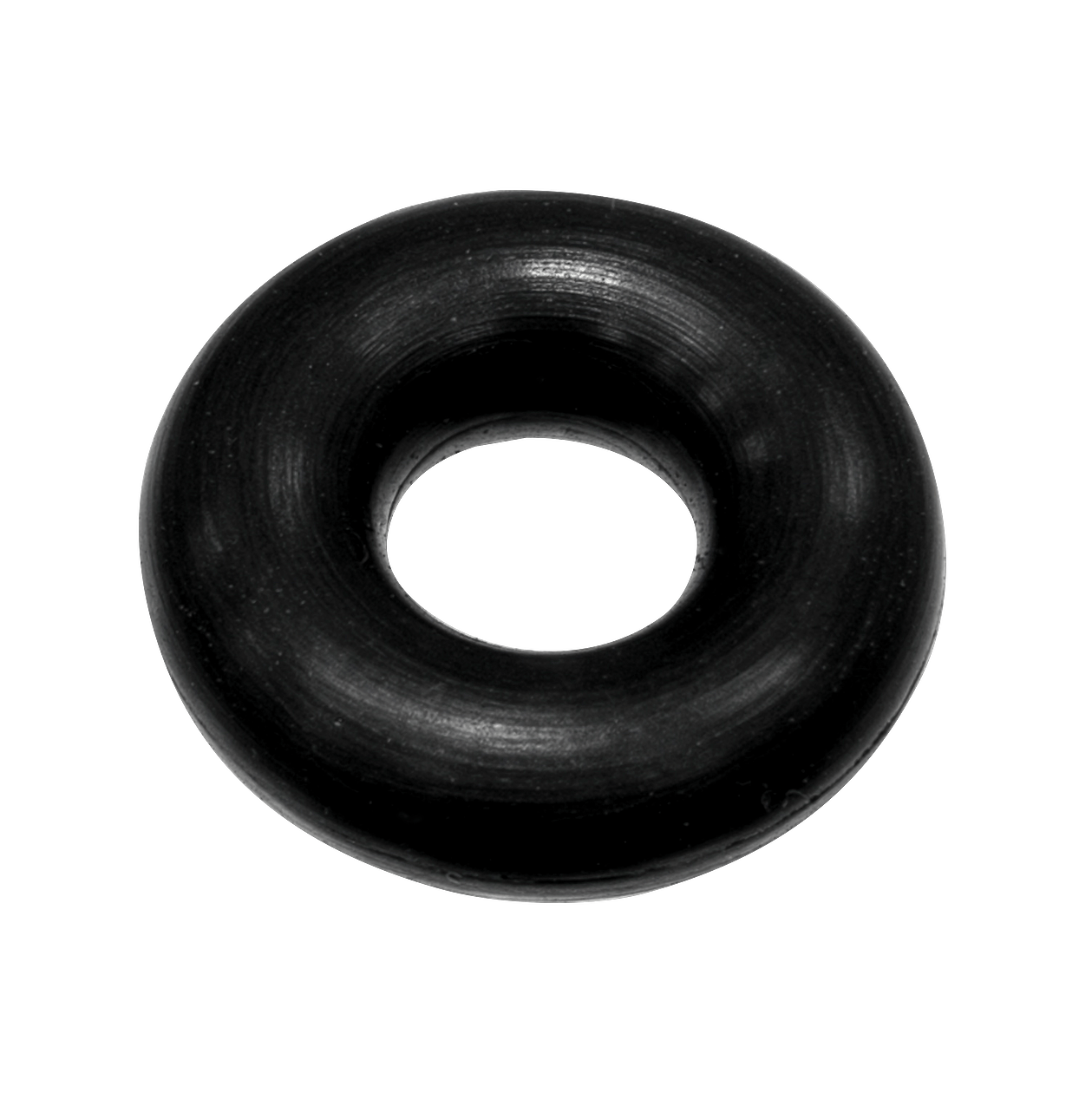

H-2785.41
Needle Valve Seat Gasket
$1.40
H-2784.26
Clamp Assembly
$40.00
H-2783.28
Adjusting Rod
$4.60
H-2783.29
Latch Assy. Screw
$1.00
H-2785.DB
Super Pump for Air Meters
$56.00
H-2783.39
Gasket Replacement Kit
$15.00
H-2783.30
Calibration Vessel, Plastic
$25.00
H-2785.31
Calibration Vessel, Metal
$32.00
Calibration Tube
H-2785.34
Strike-off Bar
$10.00
H-2785.35
Tamping Rod 5/8" x 16"
$17.00
H-2785.36
Syringe, Rubber Bulb
$6.20

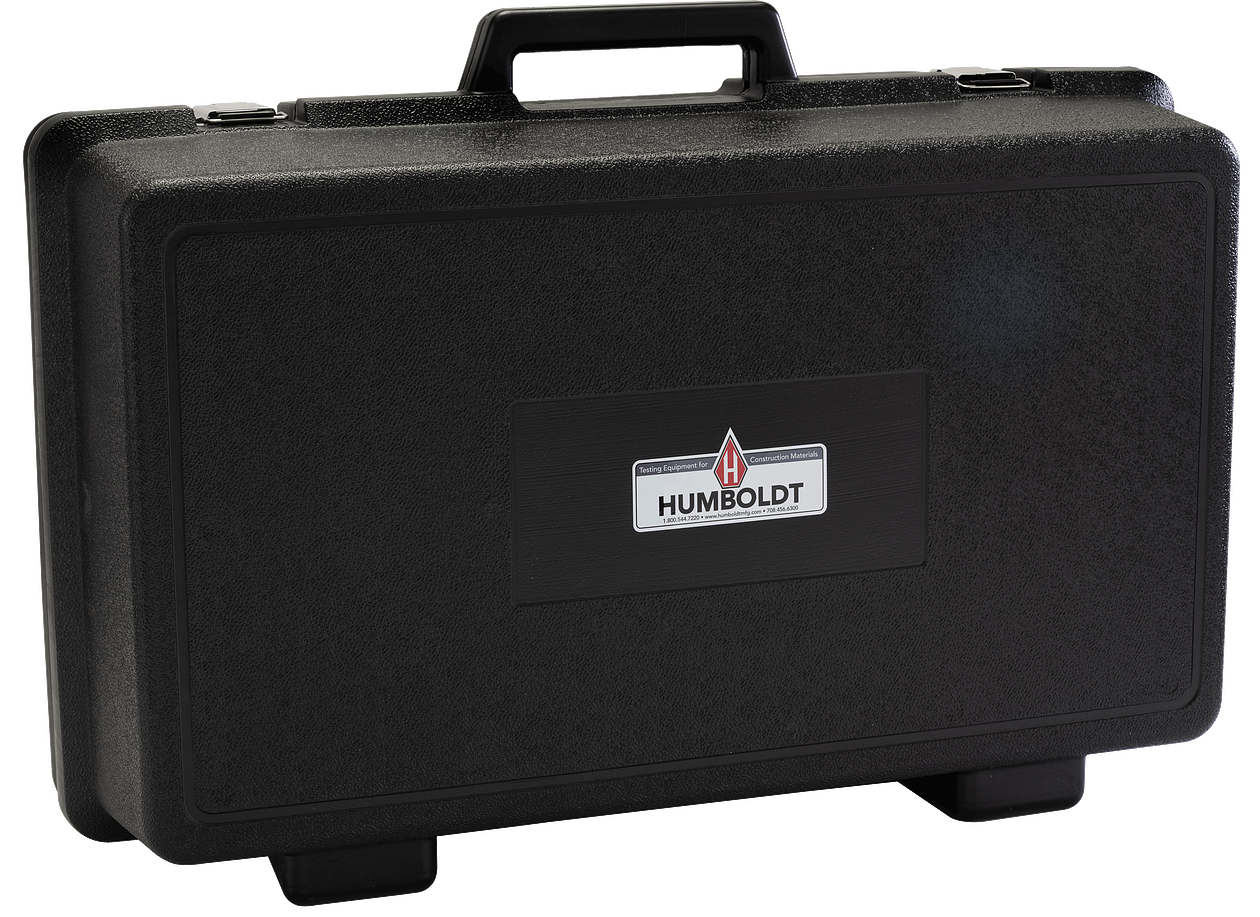

H-2787.70
Case for H-2787 Air Meter
$115.00
Add to Saved Cart

Literature

Manuals, Data Sheets & Safety Data Sheets

Air Meters-0222 (Data Sheet PDF)

H-2787 AirMeter-manual 0223 (Product Manual PDF)

Standards

Standards

ASTM C192

ASTM C231

AASHTO T152
