Conmatic IMC Soil Consolidation System
Supports the following standards: ASTM D2435
The HM-5475.3F Conmatic IMC is an automatic controller for performing incremental, CRS, and Swell tests. The Conmatic IMC allows consolidation, constant load tests to be run automatically, freeing up technicians for other tasks and reducing manpower requirements of the testing procedures by more than half. One Conmatic IMC automated system can replace the production of several manual machines— running incremental consolidation tests according to ASTM D2435 Method B, where successive load increments are applied through 100% primary consolidation.
Once a sample has been placed onto the test platform and the test conditions set, the Conmatic IMC performs all consolidation tests, including moving to the next stress level, without operator assistance. The system automatically moves through the different test parameters specified by the user with incremental consolidation tests typically being completed in 24 to 48 hours. Automated tests can be done with our without NEXT PC software. The Humboldt NEXT software with the HM-5100SW Consolidation module uses sample deformation readings taken from the displacement transducer and load readings from the load cell to maintain a constant applied stress to the sample throughout the test. Testing data is recorded and displayed in real-time on the screen while test data is stored and calculations are performed automatically. Humboldt‘s NEXT software with the HM-5100SW Consolidation module provides:
- Live test data tabulation and live graphing capabilities (real-time)
- Complete test reporting including all calculations and graphs required for testing
- Review and exporting of tests using Microsoft Excel (CSV) format
- Smart Test Function: automatically picks up where it left off if the test was not finished due to unexpected events
The unique design of the Conmatic IMC system enables the user to connect multiple Conmatic IMC units to a single computer when connected via a LAN-network.
Computer Control
NEXT software and the enhanced Consolidation module, HM-5100SW, is included with the Conmatic IMC automated consolidation machine. This software provides robust machine control, calibration, data acquisition and report generation for those using a computer to control consolidation testing operations. In addition, operators have the ability to view and control testing operations from the controlling PC, while also providing report generating capabilities using the consolidation test-specific software module.
Whether you are controlling a single, or multiple machines, the HM-5475 Conmatic IMC, in conjunction with the NEXT testing software, provides a complete solution for the acquisition, recording and presentation of consolidation testing data in data tabulation and graphic chart formats.
- Machine control, and data acquisition via networked computer
- Provides the ability to use Humboldt‘s Next Software's, advanced test-specific modules
- Real-time graph chart and numerical display of tests via computer display
- Effective sampling rate of 50 readings per second
- Stores unlimited tests with up to 3000 points per test.
- Up to 255 individual tests can be run simultaneously from a single PC
- Provides advanced graphing capabilities
- Provides full-unit customization
- Reports can also be exported to Excel or a CSV file, if desired, and, we can provide custom integration/export solutions for LIMS, EQuIS, gINT, etc.
- Stand-Alone reports are available in Excel (CSV) format.
Specifications
Sample size: | up to 4" (100mm) |
---|---|
Maximum load: | 3300lbf (15kN) |
Clearance, vertical: | 8.25" (210mm) |
Clearance, horizontal: | 7.75" (197mm) |
Maximum piston travel: | 4.0" (100mm) |
Dimensional: | 12" x 12" x 30" (305 x 305 x 762mm) |
Net weight: | 42 lbs (19kg) |
Controller Specifications
Display (Resistive Touch) | 7" (178mm) VGA (480 x 800) |
---|---|
Real-time Test Data | Graphic and Tabulation |
Processor | Dual 32-bit ARM |
RAM | 64MB |
Memory, Non-Volatile | 4GB |
Analog to Digital Converter | 24 bit |
Logging Rate | effective rate of 320 readings per second |
Multi-Test Storage | 1000 |
Points Per Test | 3000 |
USB port (front) | export data, import/export calibration data, WiFi |
USB Port (back) | provides external power for wireless access point |
Ethernet Connection | for network connectivity |
24-bit Differential Analog to Digital Converter | 4 |
Ambient Temperature Sensor | 1 |
Firmware Update | Flash drive |
System Requirements
AC Supply | 110/220VAC 50/60 Hz 5 Amp |
---|
Typical HM-5475.3F Consolidation Setup
Conmatic IMC | HM-5475.3F |
---|---|

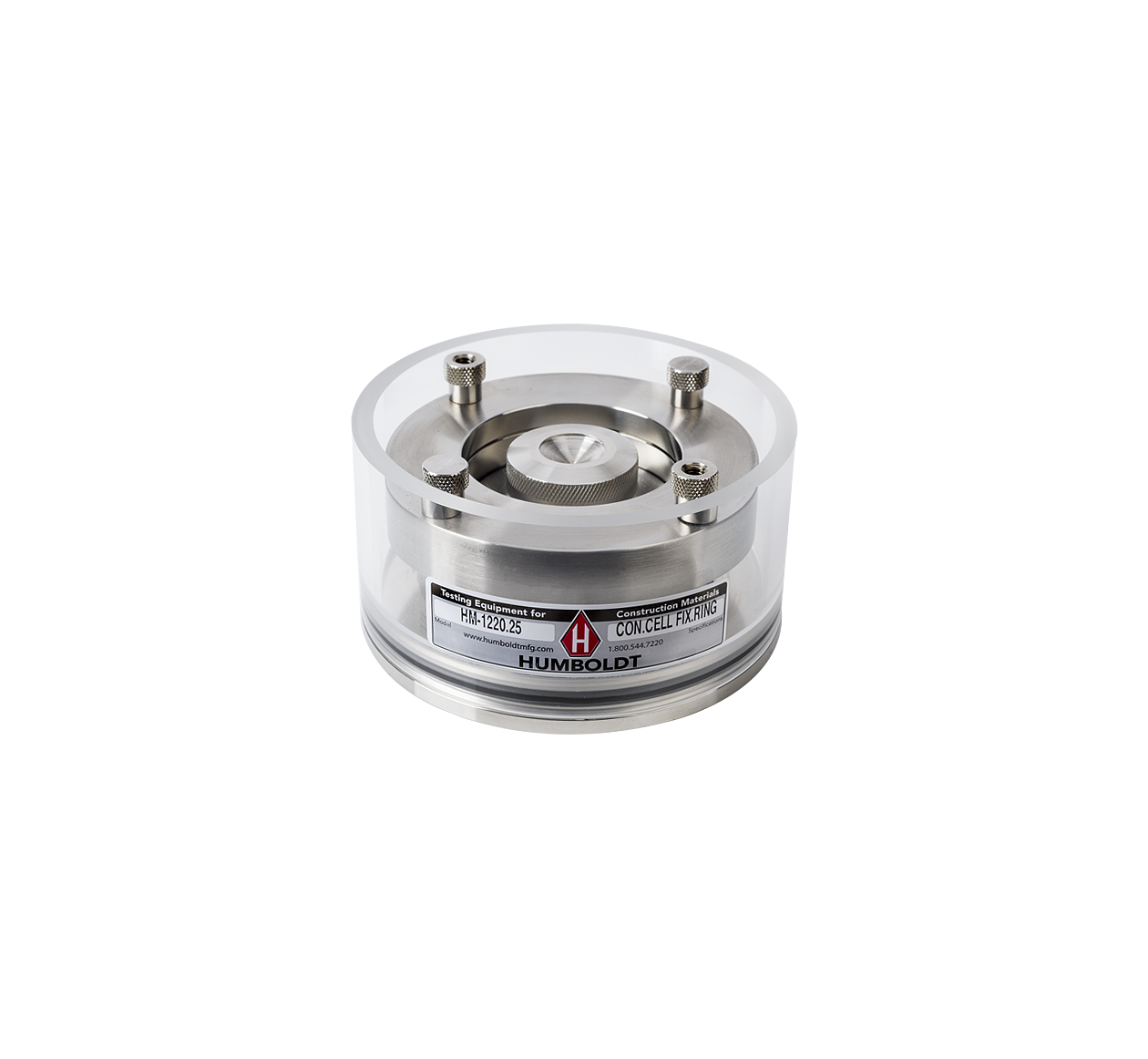

Fixed-ring Consolidation Cell | HM-1220.20 |

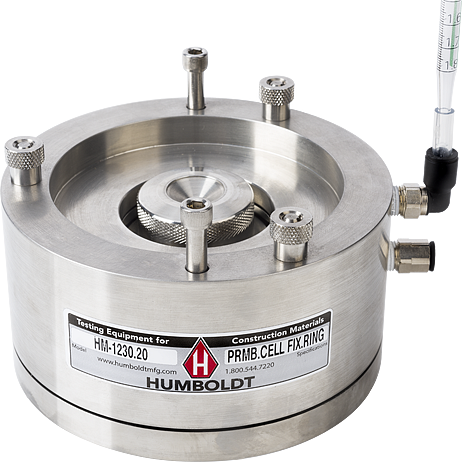

Other size consolidation cells are available.
The HM-5475.3F Conmatic Includes:
SKU | QTY | Name |
---|---|---|
HM-2300.020CP | 1 | Pancake-Type Load Cell, 2,250lbf (10kN) (New Style) w/Plug and adapter |
HM-2305.20 | 1 | Linear Potentiometer Transducer 2.0" (50mm) |
HM-5100SW | 1 | Consolidation Module for NEXT Software |
